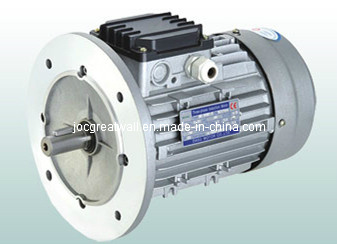

Ms Series Aluminum Three Phase Asynchronous Motor

Name: Ms Series Aluminum Three Phase Asynchronous Motor
Brand: china-manufacturer-directory.com
SKU: 737896775
Availability: InStock
Rating: 4.4 (137 reviews)

Supplier:	JOC GREAT WALL CORP.
Price:	US $ 100-1000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Function:	Driving
Number Of Stator:	Three-Phase

Product Description

The electric motor has the advantage of high-efficiency, energy-saving, high starting moment, good performance, light weight, attractive appearance, high protection class, run steadily, removable feet, variable fixing methods etc. It is widely used in normal places and precision machinery without special requirements, and is usually applied to speed reducer, blower, water pump, air compressor. Pipelining, packing industry. Food machinery and woodworker etc.

Technical Data
Centre height of frame: 56~112mm
Power range: 0.06~4.0kW
Rated voltage: 380V
Rated frequency: 50Hz(or60Hz)
Protection class: IP55
Insulation class: F
Duty type: SI

Type	Ratedpower		Full Load				Locked-rotor current	Locked-rotor torque	Pull-out torque	Load noise dB(A)
	Ratedpower		Speed (r/min)	Current I_N(A)	Efficiency η(%)	Power factor (cosφ)	Rated current Ist/I_N	Rated torque Tst/T_N	Rated torque Tmax/T_N
	kW	HP	Speed (r/min)	Current I_N(A)	Efficiency η(%)	Power factor (cosφ)	Rated current Ist/I_N	Rated torque Tst/T_N	Rated torque Tmax/T_N
Synchronous Speed 3000r/min(2P)
MS561-2	0.09	0.12	2710	0.3	60	0.76	5.0	2.2	2.2	58
MS562-2	0.12	0.18	2710	0.37	63	0.78	5.0	2.2	2.2	58
MS631-2	0.18	0.25	2720	0.53	65	0.8	5.5	2.2	2.2	61
MS632-2	0.25	0.35	2720	0.69	68	0.81	5.5	2.2	2.2	61
MS711-2	0.37	0.50	2740	0.99	70	0.81	6.1	2.2	2.2	64
MS712-2	0.55	0.75	2740	1.4	73	0.82	6.1	2.2	2.3	64
MS801-2	0.75	l.0	2830	1.77	77.4	0.83	6.1	2.2	2.3	67
MS802-2	1.1	1.5	2830	2.5	79.6	0.84	7.0	2.2	2.3	67
MS90S-2	1.5	2.0	2840	3.34	81.3	0.84	7.0	2.2	2.3	72
MS90L-2	2.2	3.0	2840	4.73	83.2	0.85	7.0	2.2	2.3	72
MS100L-2	3.0	4.0	2870	6.19	84.6	0.87	7.5	2.2	2.3	76
MS112M-2	4.0	5.5	2890	8.05	85.8	0.88	7.5	2.2	2.3	77

Type	Rated power		Full Load				Locked-rotor current	Locked-rotor torque	Pull-out torque	Load noise dB(A)
	Rated power		Speed (r/min)	Current I_N(A)	Efficiency η(%)	Power factor (cosφ)	Rated current Ist/I_N	Rated torque Tst/T_N	Rated torque Tmax/T_N
	kW	HP	Speed (r/min)	Current I_N(A)	Efficiency η(%)	Power factor (cosφ)	Rated current Ist/I_N	Rated torque Tst/T_N	Rated torque Tmax/T_N
Synchronous Speed 1500r/min(4P)
MS561-4	0.06	0.08	1300	0.27	50	0.68	4.4	2.1	2.2	50
MS562-4	0.09	0.12	1300	0.36	54	0.7	4.4	2.1	2.2	50
MS631-4	0.12	0.18	1310	0.44	57	0.72	4.4	2.1	2.2	52
MS632-4	0.18	0.25	1310	0.62	60	0.73	4.4	2.1	2.2	52
MS711-4	0.25	0.35	1330	0.79	65	0.74	5.2	2.1	2.2	55
MS712-4	0.37	0.5	1330	1.12	67	0.75	5.2	2.1	2.2	55
MS801-4	0.55	0.75	1390	1.57	71	0.75	5.2	2.4	2.3	58
MS802-4	0.75	1.0	1390	1.88	73	0.76	6.0	2.3	2.3	58
MS90S-4	1.1	1.5	1400	2.67	75	0.77	6.0	2.3	2.3	61
MS90L-4	1.5	2.0	1400	3.48	78	0.79	6.0	2.3	2.3	61
MS100L1-4	2.2	3.0	1430	4.90	80	0.81	7.0	2.3	2.3	64
MS100L2-4	3.0	4.0	1430	6.50	82	0.82	7.0	2.3	2.3	64
MS112M-4	4.0	5.5	1440	8.56	84	0.82	7.0	2.3	2.3	65
Synchronous Speed 1000r/min(6P)
MS711-6	0.18	0.25	850	0.74	56	0.66	4.0	1.9	2.0	52
MS712-6	0.25	0.35	850	0.95	59	0.68	4.0	1.9	2.0	52
MS801-6	0.37	0.5	890	1.3	62	0.7	4.7	1.9	2.0	56
MS802-6	0.55	0.75	S90	1.79	65	0.72	4.7	1.9	2.1	56
MS90S-6	0.75	1.0	910	2.09	69	0.72	5.5	2.0	2.1	59
MS90L-6	1.1	1.5	910	2.93	72	0.73	5.5	2.0	2.1	59
MS100L-6	1.5	2.0	940	3.81	76	0.76	5.5	2.0	2.1	61
MS112M-6	2.2	3.0	940	5.38	79	0.76	6.5	2.0	2.1	64
