Shenzhen Huayi Instrument Technology Co., Ltd >> Ms2308 Double Clamp Earth Resistance Tester, USB Interface and Back Light

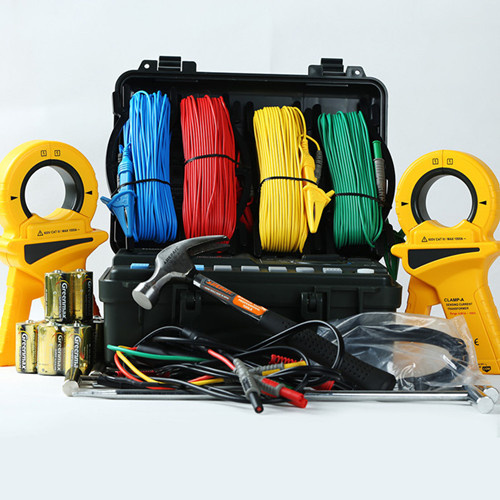

Ms2308 Double Clamp Earth Resistance Tester, USB Interface and Back Light

Name: Ms2308 Double Clamp Earth Resistance Tester, USB Interface and Back Light
Brand: china-manufacturer-directory.com
SKU: 766752375
Availability: InStock
Rating: 4.9 (37 reviews)

Supplier:	Shenzhen Huayi Instrument Technology Co., Ltd
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Weight:	0-100Kg
Type:	Earth Resistance Tester

Product Description

WE do HUAYI brand name item,mainly offering Digital Multimeter,Infrared Thermometer,Process Calibrator,Digital Clamp Meter,Laser/Ultrasonic Distance Meter,Digital Earth Resistance Tester,Digital Insulation Resistance Tester,Digital PH/Anemometer,Lux Meter,Gas Analyzer,Voltage Detector and so on,and selling Fluke items with similar products as above.
Also Agent for Endress Hauser,Offering Digital pH Sensor Orbisint Electrode / Pressure Transmitter / Liquid Level Limit Switch Liquiphant / Prosonic T Ultrasonic Level Meter / Temperature Head Transmitter iTEMP PCP...
Selling thermal Image Camera from Flir company.

Pls contact me freely if there any interested in we other items.

MS2308 Earth Resistance Tester
There are three models of this series, including Meter A, Meter B and Meter C, which can meet various requirements of different customers. The features are summarized in the following table.

Test mode	Functions	Meter MS2308	Meter MS2307	Meter MS2306
3 pole & 4 pole earthing-resistance test	Test voltage: AC 20V/48V	√	√	√
	Test frequency: 94Hz/105Hz/111Hz/128Hz/AFC	√	√	94Hz/128Hz
	Earthing-resistance range	0.02 ~ 300k	0.1 ~ 30k	0.1~20k
Selective mode (3 pole + / 4 pole+ )	Test voltage: AC 20V/48V	√	√
	Test frequency: 94Hz/105Hz/111Hz/128Hz/AFC	√	√
	Earthing-resistance range	0.02~20k	0.1~10k
Non-auxiliary-polar mode ( )	Test voltage: AC48V	√	√
	Test frequency: 94Hz/105Hz/111Hz/128Hz/AFC	√	√
	Earthing-resistance range	0.02~150	0.1~150
2 pole R~	Test voltage: AC20V	√	√	√
	Test frequency: 94Hz/105Hz/111Hz/128Hz/AFC	√	√	94Hz/128Hz
	Earthing-resistance range	0.02 ~ 300k	0.1 ~ 30k	0.1~20k
2 pole /4pole R	Test voltage: DC20V	√	√
2 pole /4pole R	Earthing-resistance range	0.02 ~ 3k	0.1 ~ 3k
Interfering voltage /current/frequency	Interfering voltage: 1~50V DC/AC	√	√	√
	Interfering frequency: 16Hz~400Hz	√	√	√
	Interfering current: 20mA~2A	√	√
Soil resistivity ρ	Test voltage: AC20V/48V	√	√	√
	Test frequency: 94Hz/105Hz/111Hz/128Hz/AFC	√	√	94Hz/128Hz
	Range: 0.02·m~1000k·m	√	√	√
RK(wire compensation)	Test voltage: AC20V/48V	√	√	√
	Test frequency: 94Hz/105Hz/111Hz/128Hz/AFC	√	√	94Hz/128Hz
	Range:	0.02~30	0.1~30	0.1~30
	Test current	≤ 250 mA	≤ 100 mA	≤ 100 mA
	Data storage	√	√	√
	USB communication	√	√	√

Shenzhen HuaYi Instrument Technology Co., Ltd. Has been engaged in the development and manufacture of testing and measurement instruments since 2005.

Located in Chinese main electrical city - Shenzhen of Guangdong Province, we have specialized teams responsible for production, marketing and R&D. Apart from our own products, we also provide OEM services and accept customized orders as well. We have already developed designs for many famous companies all over the world.

Shenzhen HuaYi Instrument Technology Co., Ltd. Is a professional supplier of process calibrators, infrared thermometers, digital multimeters, digital clamp meters, power clamp meters, earth resistance testers, insulation testers, environmental meters, electrical testers, net cable testers and so on.

Our products have been exported to many countries and regions all over the world, especially Europe, North America, South America and South Asia. Our products enjoy a good reputation among our customers.

Currently, we are looking forward to even greater cooperation with oversea customers based on mutual benefits. If you are interested in any of our products, please do not hesitate to contact us.
