Product Specifications
| Prod Model: |
MS4-LOE-1/4(1/8) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Ms4-Loe-1/8 |
| Working Medium: |
Compressure Air |
| Port Size: |
G1/8" |
| Working Pressure: |
0.1~1.0mpa(14.5~145psi)(1.0~10bar) |
| Proof-Pressure: |
1.5mpa(217.5psi)(15bar) |
| Working Temperature: |
-10~60°c |
| Flowing For 40um (L/Min): |
2200 |
| Body Material: |
Aluminum Alloy |
| Lubricant Recommended: |
ISO Vg32 or Equivalent |
| Max Storage Oil (Cm³): |
50 |
| Type: |
Source Treatment unit |
Product Description
Specifications

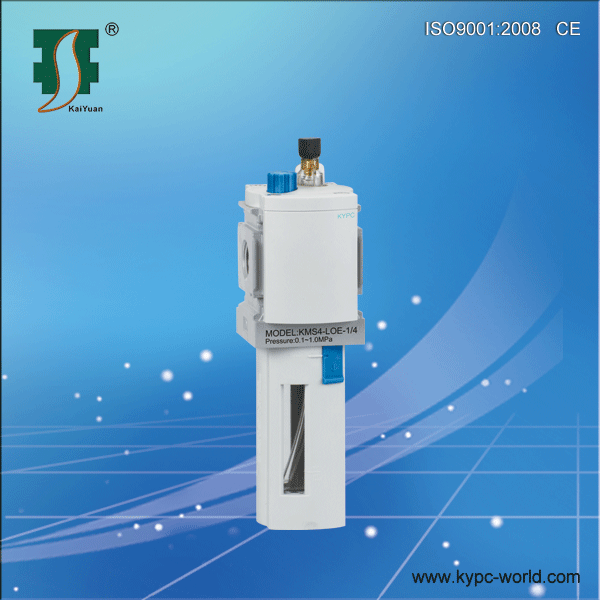

MS4-LOE-1/4(1/8) lubricator,pneumatic lubricator,air lubricator,festo
And similar products can be interchanged FESTO.
MS4-LOE-1/4(1/8) lubricator,pneumatic lubricator,air lubricator,festo
# Product introduction
1.The body was diecasting in high-strengthaluminum alloy;
2.Thread was machining by CN,clean and beautifull;
3.High-strength plastic protective cover;
4.Tramsparant checking window trickle oil quantity is visual;
5.Can add the oil with in pressure;
6.Stainless steel bolt;
7.Plastic decorative sheet,very beautifull;
8.Strang then the glass material so that the max proof-pre-ssure of up to 1.6MPa;
|
Model |
MS4-LOE-1/8 |
MS4-LOE-1/4 |
|
Working medium |
Compressure air |
|
Port size |
G1/8" |
G1/4" |
|
Working pressure |
0.1~1.0MPa(14.5~145Psi)(1.0~10bar) |
|
Proof-pressure |
1.5MPa(217.5Psi)(15bar) |
|
Working temperature |
-10~60°C |
|
Flowing for 40um (L/min) |
2200 |
2200 |
|
Body material |
Aluminum alloy |
|
Lubricant recommended |
ISO VG32 or equivalent |
|
MAX storage oil (cm³) |
50 |
|
Type of mounting |
Through the accessory of mounting |
|
Assembly position |
Vertical ±5° |
|
Protective cover |
available |
|
Weight (kg) |
0.2 |
