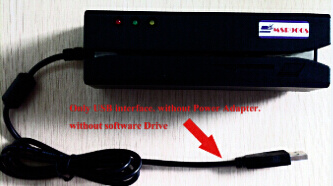

Msr900s USB Magnetic Swipe Card Reader, Magnetic Stripe Card Reader

Product Specifications

Prod Model:	SH-01
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

magnetic card read and write, it is the company research and development of magnetic card read-write equipment series products. It is an intelligent, programmable magnetic card read and write device.It is widely used in the banking system, fiscal system, safety management system, member management system and related applications.
2.Features
-  Compatible with instructions:100% compatible with MSR206 instruction set.
- Easy&convenience:The built-in battery without external power supply, do not need to install the driver.
- Read-write functions:For high/low magnetic stripe (300-4000 OE) all three rail to read and write function.
-  Read- write format:Support ISO, AAMVA DMV custom and so on the many kinds of magnetic recording format, speaking, reading and writing.
-  Blind read function : Reading card/deposit book which can realize the different standard of the blind to read.
-  Stability :Applicability, the machine is stable and reliable, error rate < 0.5
- Working life:1 million times life read/write head
-  Protocol commands:Simple file command protocol instructions, speaking, reading and writing
- Systems:Supports Windows 98 / XP/WISTA/Windows 7 / doing system, to provide convenient DLL secondary development


3.Technical Specification

Electrical
Power supply	5V
Build-in Battery Capacity	600mAh
Consumption	Read	50mA±15%
	Write	2800mA±15%
Communication	USB
Mechanical
Model	MSR900S
Body material	ABS 94V
Size	150mm(L)X50mm(W)X53mm(H)
Weight	950g
Color	Black
Environment
Operation temperature	-10ºC ~ 55 ºC
Operating humidity	10%~85%  relative humidity
Storage temperature	-30ºC~70ºC
Store humidity	10%~90% relative humidity
Performance
Read Card	1,2,3 track read and write
Recording density	1,3 track	210BPI
	2 track	75/210BPI optional
Coercive force	Read/Write 300-4000 oe Mag card
Operating speed	Read speed		6.3~250cm/s
	Write speed		10~100cm/s
Card thickness	PVC 0.76±0.08mm
Error rate	Read < 0.5%,Writer < 0.8%
Head life	About 1,000,000 times
Safety approval
Rating	CE, FCC
