Product Specifications
| Prod Model: |
HCDX-220 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

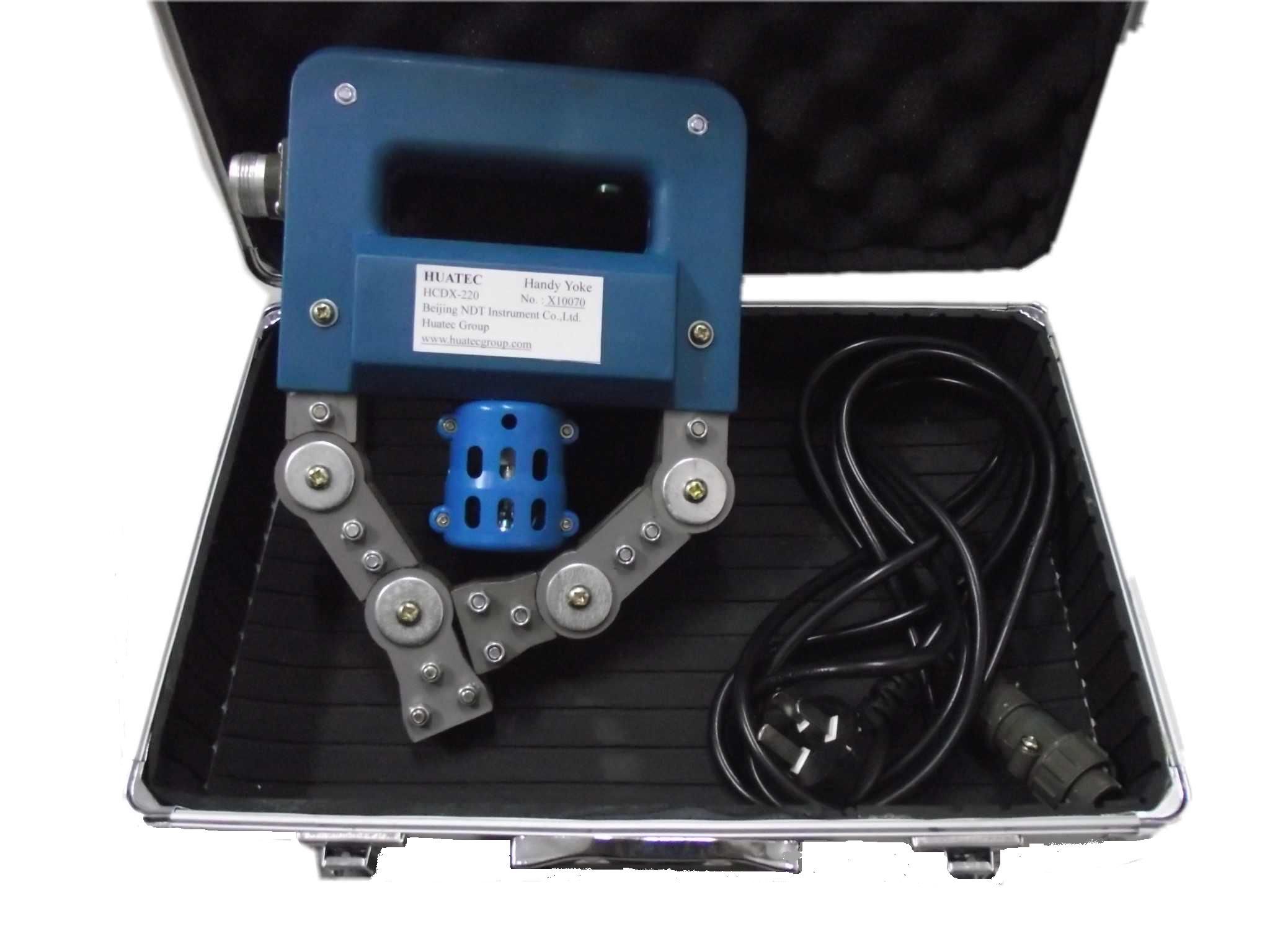

MT Flaw Detector HCDX-220
HCDX-220 MT detector has no power controller, direct contact with 220V power, convenient carrying. Elevating power >6kg, Polar distance: 10-200mm adjustable.
Usage: For aviation, , space flight, railway, automotive, ship, pressure vessel, mechanical industry etc.
Optional probes
A Probe: It is using to inspect all fillet weld and exterior angle including inside and outside of huge specimen...Polar distance: 20-160; Elevating power: AC≥ 4.
E Porbe: It can meet all of the workpiece can be placed in the circumference to crack detection and use
It to detect fatigue cracks in the workpiece. Meanwhile, demagnetizing specimen also could do it...Polar distance: 110, elevating power: AC≥ 12.5.
D Probe: It equips live joints, which could inspect specimen of plane sharp and find the defects. Polar distance: 60-220, elevating power: AC≥ 4.5, DC≥ 18.
O Probe: Inner diameter: 150, Center magnetic≥ 180Oe. It can meet all of the workpiece can be placed in the circumference to crack detection and use it to detect fatigue cracks in the workpiece. Meanwhile, demagnetizing specimen also could do it.
|
Model |
HCDX-I |
HCDX-II |
HCXX-E |
HCJE-A |
HCJE-D |
|
Power |
220V 50HZ |
220V 50HZ |
220V 50HZ |
220V 50HZ |
220V 50HZ |
|
Magnetic type |
AC/DC |
AC |
AC |
AC |
AC/DC |
|
Probe |
A D |
A D E O |
E |
A |
D |
|
Total weight |
15kg |
20kg |
10kg |
8kg |
8kg |
|
Elevating power |
Type A D≥ 4.5kg Type E≥ 12kg |
|
Polar distance |
Type A: 10-180mm Type D: 10-210mm Type E: 10-100mm
Type O: ID. 120mm |
HUATEC Group is a reliable manufacturer and supplier of testing instruments in Beijing China. HUATEC Group combines all the R/D and production advantage of all its own subsidiaries, takes advantage of its years marketing and sales experience in global market, contributes to offering most qualified competitive products and service to international markets.
HUATEC Group products are composed of all kinds of metal and non-metal testing equipments, such as portable hardness tester, micro hardness tester, shore durometer, vickers hardness tester, Rockwell hardness tester, Brinell hardness tester, portable X-ray flaw detector, mobile X-ray flaw detector, Real-time X-ray image flaw system, holiday detector, digital portable eddy current electrical conductivity meter, digital ultrasonic flaw detector, coating/painting thickness gauge, ultrasonic thickness gauge, vibration tester, surface roughness tester, profile projector, etc, and all of their accessories such as ultrasonic transducer, test block, IQI, lead screen, densimeter, film viewer etc.
HUATEC Group employees include a highly trained staff of engineers for sales and service, that are committed to offer satisfactory products and prompt service to all home and abroad customers.
HUATEC Group, based on most advanced technology in China, is an China famous industry group, focus on development & research and precision production of various testing equipment. The group has two own factories and two sister factories located in area of Beijing, Liaoning, Shandong and Guangzhou. All the products are produced following ISO9001 regulations and the products have been exported to most of world markets in passed years.
Our promise: Reliable quality, competitive price, fast delivery, satisfactory service.
