Product Specifications
| Prod Model: |
MTP-24 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Jacket: |
PVC or Lszh |
| Boot: |
Round or Oval |
| Add Protecter: |
Casstte or Rack |
| Fiber Cable: |
Sm or mm |
| Delivery Time: |
Within 2 to 4 Days |
| Certification: |
CE |
Product Description

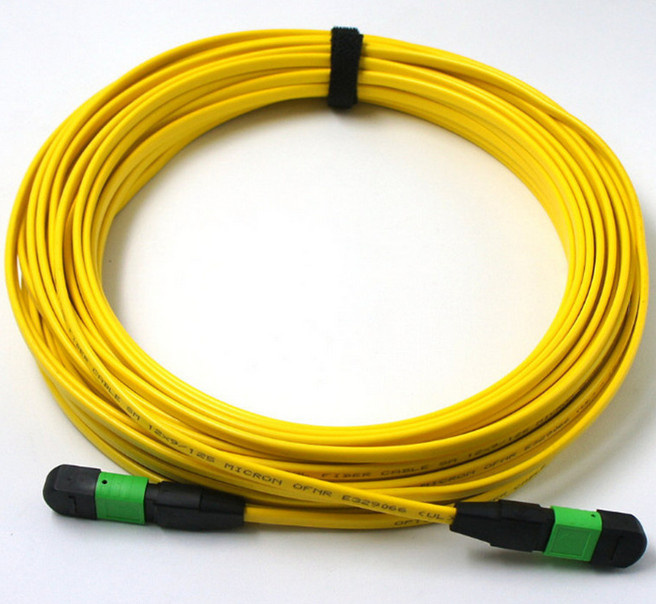

MTP Optical Fiber Cable for Data Transmission
Specifications
1, Small volume, High Density
2, Esay management
3, 12-72cores available
4, Low loss
5. Comply with Telcodia GR-326-CORE and RoHS
Description
1. With push-pull latching mechanism
2. With audible click ensures proper connection.
3. Specifically for a multi-fiber ribbon cable.
4. Precision molded MT ferrules, together with metal guide pins.
5. Precision housing dimensions ensure fiber alignment.
6. UP to 12 times the density of standard connectors.
7. Space and cost savings,
8. Up to 24F for singlemode MT ferrule and up 72F for Multimode MT ferrule.
9.8F, 12F are applied abroad.
Features
1. SM or MM available; PC(plane) or APC(8 degree) available
2. Different IL index and various color available
3. Stable performance index by PIN fiexed position of connecting
4, 8, 12...72Cores for one connecter available
5. Maximum can be 288 cores each patchcord
6. Plug type connector with locking structure
7. Parallel connection, Cross connection, Couple cross connection, QSFP connection
8. High density which convenient for wiring and management system Comply with Telcordia GR-1435-CORE and RoHS standard
| Fiber Type/Grade | Insertion loss(dB) | Return Loss(dB) |
| Max IL | RL |
Multi-mode
4F,8F,12F,24F,48F,72F | 0.7 | >20 |
| Standard Single-mode 4F,8F,12F,24F | 0.8 | >50(APC),>30dB(PC) |
Low Loss Multi-mode
12F,24F | 0.5 | >20 |
Low Loss Single-mode
8F,12F,24F | 0.5 | >50(APC),>30dB(PC) |
B: S ingle-mode MT ferrule endface criteria
| Defect | Size | Core Area 0-9um | A Area 9-25um | B Area 25-125um |
| Light scratch | < 3um | 0 | 2 | No limit |
| Black scratch | < 3um | 0 | 0 | 1 |
| Small spot | < 2um | 0 | 3 | 10 |
| Big spot | < 5um | 0 | 0 | 1 |
C: Multi -mode MT ferrule endface criteria
| Defect | Size | A Area 0-50 or 65um | B Area 50 or 65-125um |
| Light scratch | < 3um | No limit | No limit |
| Black scratch | < 3um | 0 | 2 |
| Wide Scratch | < 5um | 0 | 1 |
| Small spot | < 2um | 5 | No limit |
| Big spot | < 5um | 0 | 3 |
D: MTP Connector endface geometry:
| Endface Geometry Requirements for MT Ferrule |
| Requirement | MM (50 & 62.5/125) | SM(APC) |
Surface Tilt Angle
Along X-Axis (Long Axis) | -0.2 / 0.2 degree | -0.2 / 0.2 degree |
Surface Tilt Angle
Along Y-Axis (Short Axis) | -0.2 / 0.2 degree | 7.8 / 8.2 degree |
| Fiber Height | 1000nm - 2500nm, Typical 2000nm | 1000nm - 2500nm, Typical 1500nm |
| Fiber Differential Height | <750nm | <600nm |
Radius of Curvature
Along X-Axis | >500 mm | >500 mm |
Radius of Curvature
Along Y-Axis | >50 mm | >50 mm |
