Chengdu Haoteng Technology Co., Ltd. >> MUDS DVB-T Transmitter 450W

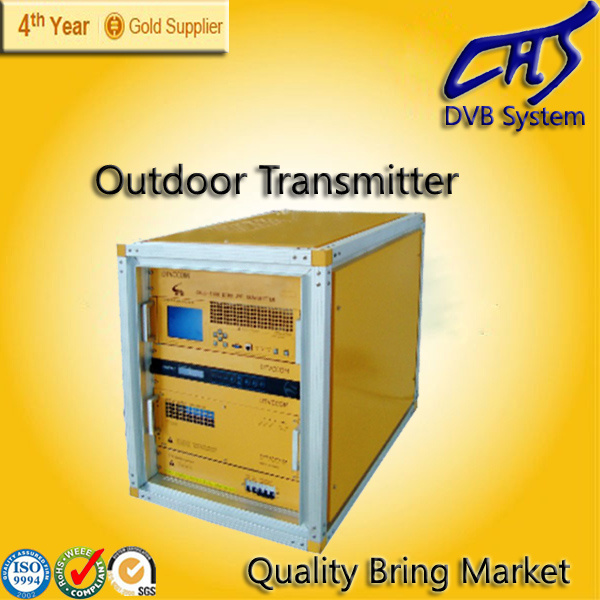

MUDS DVB-T Transmitter 450W

Name: MUDS DVB-T Transmitter 450W
Brand: china-manufacturer-directory.com
SKU: 665308052
Availability: InStock
Rating: 4.8 (38 reviews)

Supplier:	Chengdu Haoteng Technology Co., Ltd.
Price:	US $ 10000-25000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	others

Product Specifications

Prod Model:	HT600FS-450W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Digital Power:	400w/800w

Product Description

1. DVB-T transmitter
2. DVB-T TV transmitter
3. MUDS digital transmitter
4. Low local oscillation phase noise
5. Digital and anlogue signal transmission.

Outline
The main feature of this system is that detect the state of indoor transmitter, such as working voltage, transmitting power, working temperature, etc.
Comprehensive self-diagnostic, protection function, the user can monitor the working status timely.
Ultra-low local oscillator phase noise, to ensure high-quality digital signals transmission.
Compatible with different of digital modulations.
Ultra-linear power amplifier design, low non-linear distortion, transmission power upgrade, ensuring high-quality signals for remote users.
Modular design, easy maintenance and replacement.

Parameters			Symbol	Min	Representative value	Max	Unit
Input and output frequency range		A	F_OUT	470		680	MHz
		B		650		862
Variable frequency gain flatness@ Bandwidth of all band			DG_a		1	2	dB
Variable frequency gain flatness @ 8MHz bandwidth			DG_8MHz		0.3	0.5	dB
Noise Coefficient			N_f		3.0	6.0	dB
Input signal level			P_IN	87		117	dBmV
ALC Level control range			DG_ALC	15	20		dB
ALC Voltage control range			V_ALC	0.6	1.2	3.2	V
Output power stability(ALC state)			DP_OUT			1	dB
Out-of-Band harmonic signal level (external filter)			H			-60	dBc
In-Band spurious signal leve			Spur			-55	dBc
Group delay			GD			30	Ns
Input return loss			RL_IN	15			dB
Output return loss			RL_OUT	17			dB
Average output power	Single channel		P_AVG	56			dBm
	Multi-channel			53
Spectrum shoulder@fcenter± 4.2MHz			Shoulder	36	42		dB
Error vector magnitude			EVM			2	%
Signal-to-Noise@8MHz bandwidth			S/N	40			dB
LinearRange(AM-AM conversion)			L_AM-AM			0.3	dB
Phase Linear(AM-PM conversion)			L_AM-PM			2	Degree
Mean time between failures			MTBF	45000			Hour
Input impedance/connector			75W/FL10-75K
-20dB input monitoring port impedance/connector			75W/FL10-75K
Output impedance/connector			50W/N-50K
-50dB output monitoring port impedance/connector			50W/SMA-50K
Backup switch alarm signal output connector			BNC-75K (TTL Low-normal/TTL High-abnormal)
State tests display			LCD display / function key / LED indicator / buzzer
Local state monitoring port connector			RJ-45 (10 Base-T) / DB-9J(RS-232)
Wireless remote monitoring port connector			SMA-50K (optional)
Power supply			AC90~130V / AC180~260V (47~63Hz) /AC85~265V (47~63Hz) (optional)
Power consumption			2.5 KW/3.7KW (800W)
Supply voltage connector			IEC320
Cooling			Temperature forced air-cooled
Working temperature			-10 ~ +45° C
Working humidity			0 ~ 95%, no condensation
Storage temperature			-55 ~ +85° C
Storage humidity			0 ~ 95%, no condensation
volume(W´ H´ D) / weight			620mm´ 1020mm´ 960mm /180kg (400W) 620mm´ 1400mm ´ 960mm /260kg (800W)

Chengdu Haoteng Technology Co., Ltd. was established in 2003 in Chengdu, China. Which concentrates on the research, production, sale and engineer service of digital TV broadcasting products, with a group of experts and doctors, advanced production facilities and testing equipment, forming a worldwide sales network and customer groups.
DTV products include: MPEG-2/4 encoder, H. 264 HD/SD encoder, DVB-T COFDM modulator, DVB-S/S2 modulator, QPSK/QAM modulator, multiplexer, scrambler, MMDS/MUDS transmitter, DVB-C/S/T STB.
IPTV products include: IPTV media player, MPEG-4/H. 264 IPTV encoder, P2P IPTV streaming Server, Operation Support System(OSS).
As a television network investor, we have accumulated a great deal of experience in network operation of digital TV and IPTV system
Our mission is to exceed customer's satisfaction and requirements, fulfilling our assurance of high quality products. We look forward to creating mutually beneficial business with you.
