Product Specifications
| Prod Model: |
LH- |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

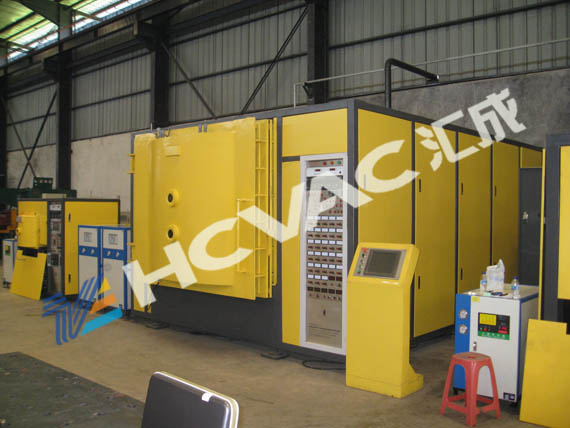

Multi-Arc Ion Coating Machine(PVD)/Multi-Arc Ion Plating System
is suitable for plating various hard metallic films and metallic compound films on the surface of metals and alloys, having outstanding film quality, being widely applied to the surface treating area in such industries as high class decoration, watchband, ceramic, optical frame, cutting tool and hardware.
For more information,pls contact with : Sophia
Mobile/Line:86 13600282018
Dimension | Φ 1250*1500mm | Φ 1600*1800mm | Φ 1800*1800mm |
| main configuration | 12 multi-arc targets | 20 multi-arc targets | 22 multi-arc targets |
| power source | Electric-arc power, Filament power, Pulsed bias power supply |
| Process gas control | Mass flowmeter+Electromagnetic ceramic valve |
| Vacuum chamber structure | Vertical side opening door, pump system postposition, double water cooling |
| Vacuum system | Molecule pump+Root pump+Mechanical pump(8.0*10-5Pa) Diffusion pump+Root pump+Mechanical pump(8.0*10-4Pa) |
| Workpiece baking temperature | Normal temperature to 350 centi-degree PID control, radiation heating |
| Workpiece motion mode | Public rotation frequency control: 0-20 rotation per minute |
| Measure mode | Number display comosite vacuum gause: from atmosphere to 1.0*10-5Pa |
| Control mode | Manual/Automatic/PC/PLC+HMI/PC four choice of control mode | |
| Remark | we can design the dimension of the vacuum equipment according to customer’ s special technique requirement. |
For more information,pls contact with : Sophia
Mobile/Line:86 13600282018
DongGuan HuiCheng Vacuum Technology Co., Ltd is a high-tech enterprise specialized in the R&D, Production and Marketing of various kinds of the vacuum equipments. Our company aggregates many excellent technicians in the vacuum industry, including engineers with the senior and middle technique titles. We also invite the senior experts and experienced technicians to be responsible for the development and design of the new products, insure the high technology and quality of the vacuum equipment. Our products are popular with both the domestic and overseas clients, and have a high reputation in the vacuum industry.
Our company is dedicated to the R&D of the series of the vacuum coating machine. We have been designed various coating technics projects according to different requirements successfully, especially in the fields of mobile(computer) shell, electronical appliance, metal, auto parts and high-tech industries, etc. Particularly we designed the special wheels coating machine for the VIP enterprise in Zhejiang Province in 2007, bringing great benifits for the client, making prominent contribution to the environment protection and generating extremely positive social effectiveness. It is high appreciated by the government and craft brother. Therefor this project is listed to the item of the Nation Star Project. Our main products also include slide valve vacuum pump, Roots vacuum pump, water ring vacuum pump, rotary-vane vacuum pump, various vacuum units and different vacuum heating energy equipments, etc.
Our company sticks to the selling concepts of"People-Oriented, Keeping improving, Innovative and Factualistic, Customer First"; Holding the management policy of "Keep the science and technology ahead, Put quality and service at the first place"; Carrying forward our corporate spirits"Honesty and High efficiency, Unity and Struggle, Factualic and Innovative". We'll continue to hold the development and improvement as our main rhythm, stepping forward to the goal of becoming diversification, internationalization and high technological modern enterprise. We will make new contribution to set up the international advanced level in the vacuum fields.
