Product Specifications
| Prod Model: |
DPT12DX-3X10A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
110V/220V |
| Frequency: |
50Hz/ 60Hz |
| Air Volume: |
200CMH 118cfm |
| Power: |
33W |
| Ball Bearing: |
NSK Ball Bearing |
| Research & Development: |
OEM, ODM, Own Brand(Aden) |
| Protection Grade: |
IP44 |
| After-Sales Service Provided: |
3 Year Guarantee Repair for Motor |
| Performance: |
Stable Structure, Better Fire Prevention |
| Insulation Grade: |
Insulation Class F |
| Blade Material: |
Cast Iron |
| Electric Current Type: |
AC |
| Mounting: |
Duct Fan |
| Certification: |
CCC |

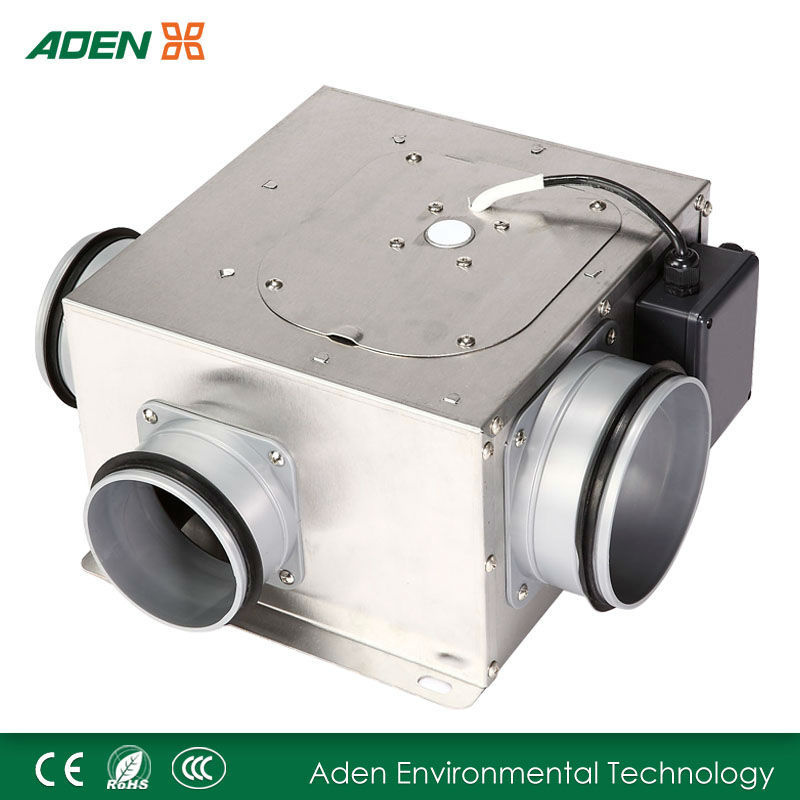

Product Description
Duct Diameter: 100mm( 4 inch)
Model: DPT12DX-3X10A
Voltage: 110V/ 220V
Frequency: 50Hz/ 60Hz
Airflow: 200CMH 118CFM
Static Pressure: 128Pa
Power: 41W
Speed: 1348 rpm
Noise: 40dB
Weight: 4.7kg
Features:
1.Air port design as one outlet and three inlets;
2.Ultra-thin case design suitable for narrow installation space;
3.Tumblet type motor and impeller;
4.External ABS flame retardant junction box;
5.Slippery-prevent rubber seal is available at air inlet to ensure better air tightness;
6.100% pure copper motor consistent running for 5000hr without failure;
7.Brushed stainless steel body, super rust and corrosion resistance performance;
8.High-quality NSK ball bearing to ensure motor running more smoothly and silent;
9.Professional air duct design can realize more silent effect and superior performance of the product;
10.Normal operation at super-wide ambient temperature from -30ºC to 60ºC;
11.Can start up at 100V ultra-low voltage;
12.Enclosure class IP44;
13.Insulation class E.
Performance Parameter:
| Model |
Voltage
(V) |
Frequency
(Hz) |
Airflow
CMH CFM |
Static
Pressure
(Pa) |
Power
(W) |
Current
(A) |
Speed
(r.p.m) |
Noise
(dB) |
Weight
(Kg) |
| DPT12DS-3X10A | 220 | 50 | 200 118 | 128 | 41 | 0.22 | 1348 | 40 | 4.7 |
| DPT12DS-3X10B | 220 | 50 | 398 234 | 246 | 76 | 0.34 | 2290 | 45 | 4.7 |
Zhongshan Aden Environment Technology Co., Ltd. Is a technology-based firm focusing on ventilation and air purification area integrated with product R&D, manufacturing and sales. Our company has passed a series of certifications such as ISO9001: 2008, 3C, CE, RoHS. Our main product include: Ventilation exchanger, pipeline blower, silent fan, duct fan, air curtain and other HVAC systems' product.
