Product Specifications
| Prod Model: |
HQ908 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine: |
Perkins |
| Operating Weight: |
1490kg |
| Hydraulic Valve: |
From Itlay |
| Width: |
950mm |
| Warranty: |
15 Months |
| Type: |
Small Loader |
| Certification: |
SGS,Rops&Fops |
| Walking Mode: |
Wheeled |
| Condition: |
New |
| Load And Unload Method: |
Front Discharge |
| Usage: |
Used in a Farm, Cattle Farm,Garden |
| Engine Power: |
18.5kw |
| Scraper Type: |
Front End Shovel |
| Color: |
According to Customers Requirments |
Product Description

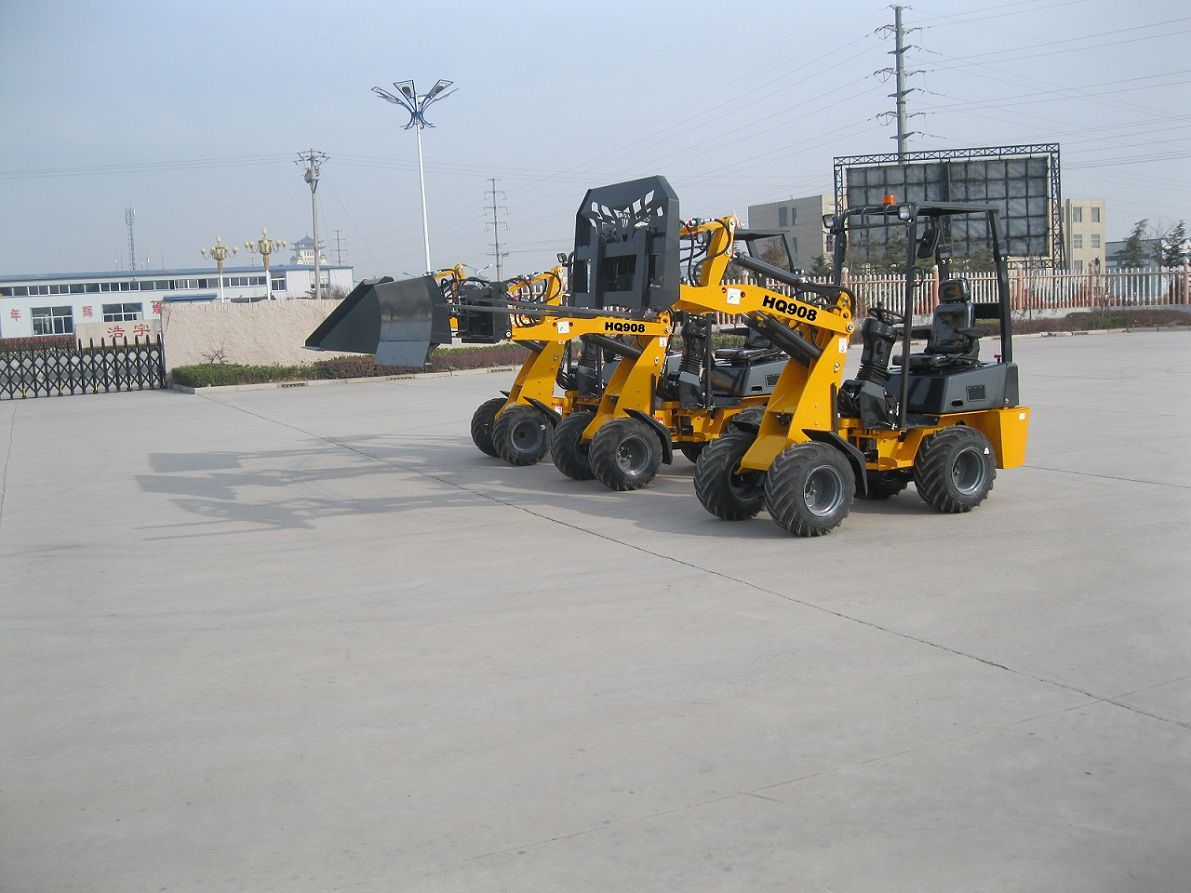

Advantage of HQ908 mini loader:
1, Engine: Perkins 403D-11.
Power system: Uses the Perkins 403D-11 engine, the Perkins engine independent fuel direct injection system, low fuel consumption, mechanical speed, low noise, strong power, low smoke emission, stable performance, good power to weight ratio, small volume, compact structure, beautiful appearance, convenient installation, easy maintenance, Euro three, EPA professional certification, more than 4000 global technology support service outlets.
2, The transmission system:
Drive pumps adopt Italy imports original closed variable plunger pump.
3, Control system:
Forward and backward with the handle shifting, the stepless speed change, the initial soft and smooth, no sense of shock; Working system adopts imported from Italy valve, a floating (float) function, easy operation, sensitive.
4. American Eston Pump
5. Farm or Garden multi-function use easily
6. With Agricultural Tyre
| Engine | model | Perkins 403D-11 |
| type | 3 cylinder, watercooled |
| rated power | 18.5kw |
| rated speed | 2800r/min |
| displacement | 1.1L |
| max.torque | 67Nm |
| Performance | drive pump type | closed piston pump |
| total weight | 1490kg |
| Tipping loads in bucket(kg) |
| lift frame horizontal/machine stright | 850 |
| lift frame horizontal/machine articulated | 550 |
| rated bucket capacity | 0.35M3 - 0.5 M3 |
| overall size | 3650×950/1110×2250mm |
| travel speed | 0-12km/h |
| max.breakout force | 12Kn |
| battery | 43Ah |
| rated voltage | 12v |
| steering type | articulated hydraulic steering |
| drive system | hydrostatic motor |
| drive type | 4 wheel drive(4WD) |
| transmission model | HST |
| transmission type | CVT |
| drive axle model | hydrostatic drive axle |
| max.grade ability | 20° |
| optional tyre | 7.00-12 |
| 26×12.00-12 or 27*8.5-15 |
| fuel tank capacity | 32L |
| hydraulic oil tank capacity | 40L
|
Since 2002, Weifang HainQin Machinery started to work hard and manufacture every kinds of good quality wheel loaders, backhoe loaders, wheel dumpers etc for our customers. Our wheel loaders got CE certificate, ROPS & FOPS Certificate, with E4 standard glass, USA steering system etc. Now our loaders exported to more than 30 countries, and gained high evaluation from our customers.
" Quality first " Is always the rule of Haiqin Machinery. From the parts purchase, production management, machine testing, delivery of shipment etc, all have professional and technical personnel to inspect. This will ensure that each machine of high quality!
" Quick after sales service" is also very important. We have professional technical personnel for technical service and spare parts warehouse for supplying spare parts service. Now we cooperated with DHL/FedEx, and can send the parts to the customers adress in 4 or 5 days!
"Technical research and innovation", We have to keep up with the pace of the international engineering machinery development. Every year, there are 40% of the total profit put into technical research and innovation. This will always enable us to keep the leading position in the construcion machinery field.
We hope to cooperate with the friends from all over the world and make mutual benefits!
