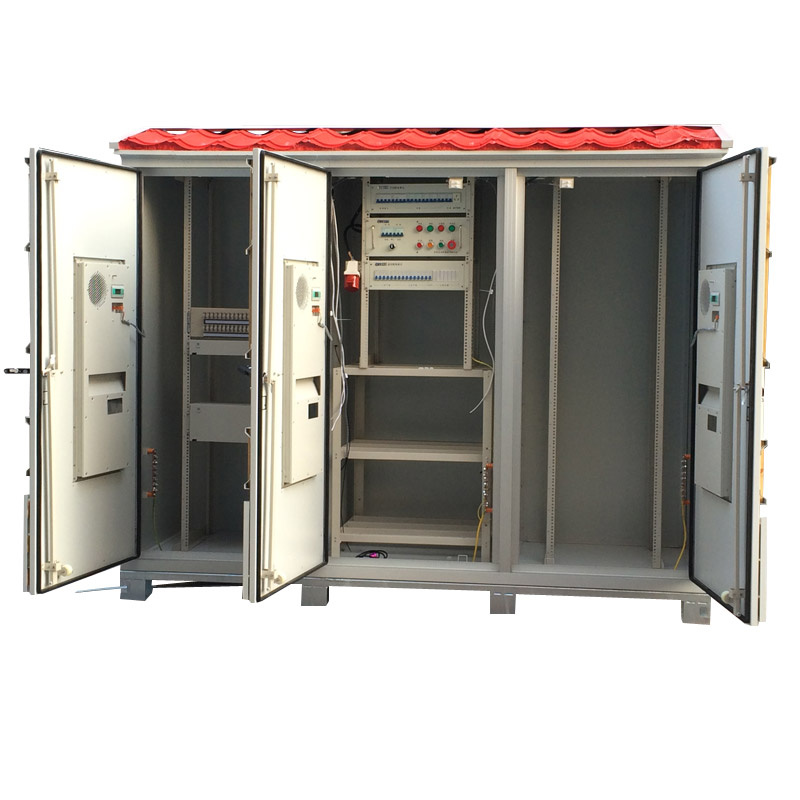

Multi-Function Cabinet Used in Telecommunication Industry
Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
800*800*1800 |
| Use For: |
Telecom Base Station |
| Usage: |
Workstation |
| Type: |
Wireless |
| Support Network: |
GPRS |
| Information Content: |
Data |
| Condition: |
New |
| Certification: |
BV |
Product Description
1.Features(1)The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment. The protection level is IP55.(2)Three cooling options for the cabinet: fans, heat exchanger or air conditioner.(3)-48V lamp is installed inside the cabinet.(4)The cabinet is installed with Environment Monitoring Unit, door alarm, temperature and humidity sensor, smoke sensor, water sensor etc., which can work together to monitor the inside environment of the cabinet.(5)The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There're entrance holes individually for power cable, signal cable and optical cable. (6)All the cables used in the cabinet are made from flame retardant materials. (7)Cabinet size can be custom made. (8)Optional accessories: environment monitoring unit, sensors, power system, power monitoring unit, etc.2.Technical specs(1) Applicable environment conditions:Environment temperature: -40°C ~ + 60°CEnvironment humidity (RH): ≤95% (at + 40°C)(2) Material: hot dip galvanized steel, SPCC, aluminum series
(3) Surface treatment: derusting, galvanizing,powder coated.(4) Cabinet load bearing: ≥600kg(5) Ingress Protection: IP553.Optional components| NO. | Name | Type | Unit | Quality |
| 1 | ac unit | HC1500-LBA2R | pcs | 3 |
| 2 | DC | circuit breaker | set | 1 |
| 3 | AC | circuit breaker/Lightning arrester/socket | set | 1 |
| 4 | door alarm | Normally open interface | pcs | 1 |
| 5 | temperature and humidity sensor | / | pcs | 1 |
| 6 | smoke sensor | 12v Normally open interface | pcs | 1 |
| 7 | water sensor | Normally open interface | pcs | 1 |
| 8 | DC, LED Light | 48V/5W | pcs | 1 |
| 9 | DDF | 16/2M | pcs | 1 |
| 10 | ODF | 72 CORE | pcs | 1 |
Hangzhou Hanchao Technology Co., Ltd, located at Liangzhu High-tech Industrial Park in HANGZHOU, China, it has advantageous geographical location and convenient transportation, and it is only 200 km from our factory to Shanghai, Suzhou, Ningbo and other cities, It only takes about one hour to drive to our factory from Hangzhou International Airport, and two hour from Shanghai International Airport. Welcome to visit our factory at any time.
HC mainly engaged in the R&D, manufacturing and sales of temperature controlling system. It is a fast growing and innovative company exclusively focusd on cooling solution for enclosure system and industry appliance. With fast development and manufacture experience in the refrigeration industry, HC owns more than 20 patent technologies and has a wide range of products, such as cabinet air conditioner, heat exchanger, air heat machine, semiconductor air conditioner, etc.
HC aspires to provide a stable and comfortable environment for thermosensitive electronical components. With the help of HC product, heat can safely removed from enclosure system and electronical component, thus, failure of the system is reduced and life time of the system is increased.
HC has a strict quality system. HC has already passed ISO9001, ISO14001, OHSAS18001 certification and been recognized as the high technology company by the Zhejiang province authority, HC products has also approved by CE certification. All the core components are carefully selected from world class brand to ensure its quality, all finished goods are well tested before send to customer. With world leading technology, HC products are characterized as high reliability, environmental friendly, economy, safety, fast cooling and easy installation and maintenance.
Based on the enterprise spirit of Technology, Service and Value, HC will produce high technical and good quality products, provide customers with superior service, makes the company to be the world-class solutions experts of temperature controlling system in communications industry, and realize the social value.
