Changzhou Hongjian Tools Co., Ltd. >> Multi Function Drilling and Milling Carbide Tools

Multi Function Drilling and Milling Carbide Tools

Name: Multi Function Drilling and Milling Carbide Tools
Brand: china-manufacturer-directory.com
SKU: 761238155
Availability: InStock
Rating: 4.4 (47 reviews)

Supplier:	Changzhou Hongjian Tools Co., Ltd.
Price:	US $ 5-50/Piece
Min Order:	5/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	multi function end mills
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diameter:	3-20mm
Helix:	35 Degree
Length:	50-100mm
Coating:	Tialn
Hardness:	HRC55
Cutting Flutes:	2
Work Piece:	Steel,Stainless Steel, Cast Iron
Samples:	Available
OEM:	Accept
Process Usage:	Metal-Cutting CNC Machine Tools
Movement Method:	Contour Control
Control Method:	Closed-Loop Control
Numerical Control:	CNC/MNC
Performance Classification:	High-End CNC Machine Tools

Product Description

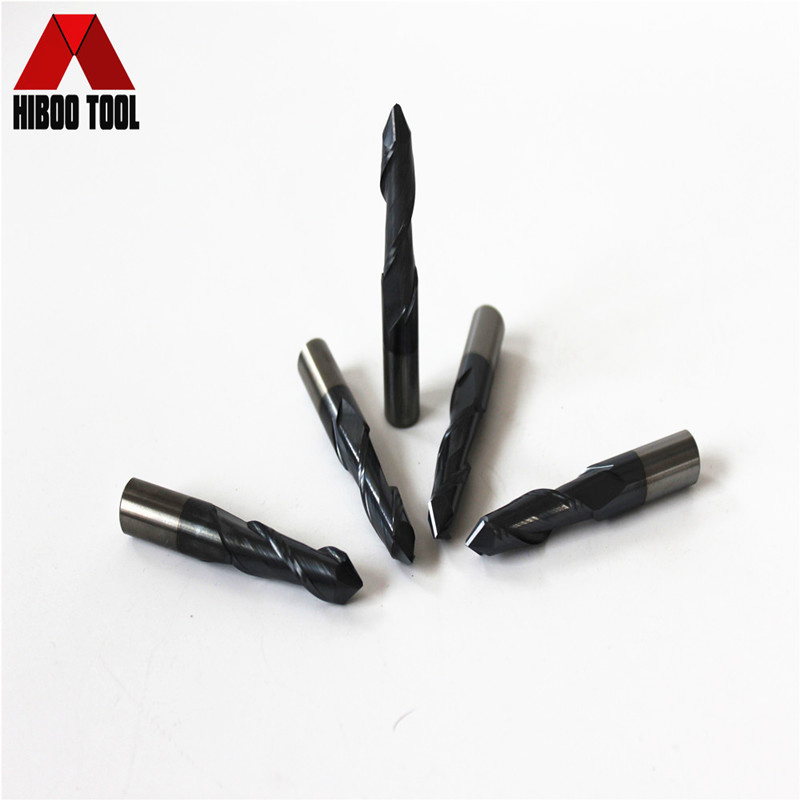

Multi Function Drilling and Milling Carbide Tools

1. HRC55 Micro grain carbide rod

HRC45	HRC55	HRC60	HRC65
YG10X	YG10.2 &WF25(Taiwan)	K44 & K40	Sandvik H10F
Grain Size:0.7um Co:10 % Flexural strength:3320N/mm2	Grain Size:0.6um Co:10 % Flexural strength:4000N/mm2	Grain Size:0.5um Co:12 % Flexural strength:4300N/mm2	Grain Size:0.4um Co:12.5 % Flexural strength:4300N/mm2

2. Made by world latest 5-AXIS tools grinding machine, promise the quality and precision of cutter.

3. Super TiAlN, reduce the coeffiction of friction, and improve the tools life much.

	AlTiN	TiAIN	TiSiN	Nano
Hardness(HV)	3200	2800	3600	42(GPA)
Thickness(UM)	2.5-3	2.5-3	3	3
Oxidation Temp(°)	900	800	1000	1200
Friction Coeffient	0.3	0.3	0.45	0.4
Color	Black	Violet	Copper	Blue

4. Each end mill is inspected by Zoller measuring and inspected machine.

5. The following Specification for your refer, We also provide the OEM or ODM service
3.0×6×4D×50L×60°

(Order No)	Cutting	Shank	Flute	A.0.L
(Order No)	d	D	l	L
3.0×6×4D×50L×60°	3	4	6	50
3.0×6×4D×50L×90°	3	4	6	50
3.0×6×4D×50L×120°	3	4	6	50
4.0×8×6D×50L×60°	4	6	8	50
4.0×8×6D×50L×90°	4	6	8	50
4.0×8×6D×50L×120°	4	6	8	50
5.0×10×6D×50L×60°	5	6	10	50
5.0×10×6D×50L×90°	5	6	10	50
5.0×10×6D×50L×120°	5	6	10	50
6.0×12×8D×60L×60°	6	8	12	60
6.0×12×8D×60L×90°	6	8	12	60
6.0×12×8D×60L×120°	6	8	12	60
8.0×16×10D×75L×60°	8	10	16	75
8.0×16×10D×75L×90°	8	10	16	75
8.0×16×10D×75L×120°	8	10	16	75
10.0×20×12D×75L×60°	10	12	20	75
10.0×20×12D×75L×90°	10	12	20	75
10.0×20×12D×75L×120°	10	12	20	75

6. Package and shipping details
Laser brand on the cutter's shank , 1 pc in a plastic tube , 10pcs a group

7.Delivery Time
For samples , we dispatch your tools in 2-7 workdays .
For formal orders,We delivery tools to you in 7-30 workdays , it will depond on your order quantity .
8. Payment Term
T/T ,Western Union , MoneyGram,L/C

9.Why Choose Hiboo Tools
Several years' professional producting and exporting experience
Advanced RD department meet your special demands
High precision CNC machines,high standard and strict inspection
Custom demand are welcomed ,OEM and ODM Service
All payment terms supported
Fast delivery time and Convenient Transportations
More than 2000 products are available
For your suggestions or complaints,We will handle them Soonest

We located In Changzhou City, About 1 Hours from Shanghai, China. We has committed to manufacturing solid carbide end mills, Drills, reamers, Inserts, Both standard and Nonstandard tools, offering high quality cutting tools, competitive price and unequaled customer service.

Our carbide cutting tools For the medical fields including Orthodontics, Orthopedics, Catheters, and Surgical instruments; For the automotive parts and engines, motorcycles, snowmobiles, and bicycle industries; For pattern and mold makers; For general manufacturing in marine, recreational and consumer products industries; For the plastics industry, and For the woodworking industry.

Efficient workshop and 5AXIS grind machines run by skillful operators. We have our partners as complementarities sited around our factory in 5 Km who is product turning tools, holder And others, they are all around our factory in 5 Km. So, you can trust us that we must satisfy your needs.

We earned reputation of good quality, Fast producting, Delivery in time, reliable service. Hiboo will continue to introduce some new series of tools to meet different requirements. Sincerely Welcome to inquiry products and visit our company, thanks.
