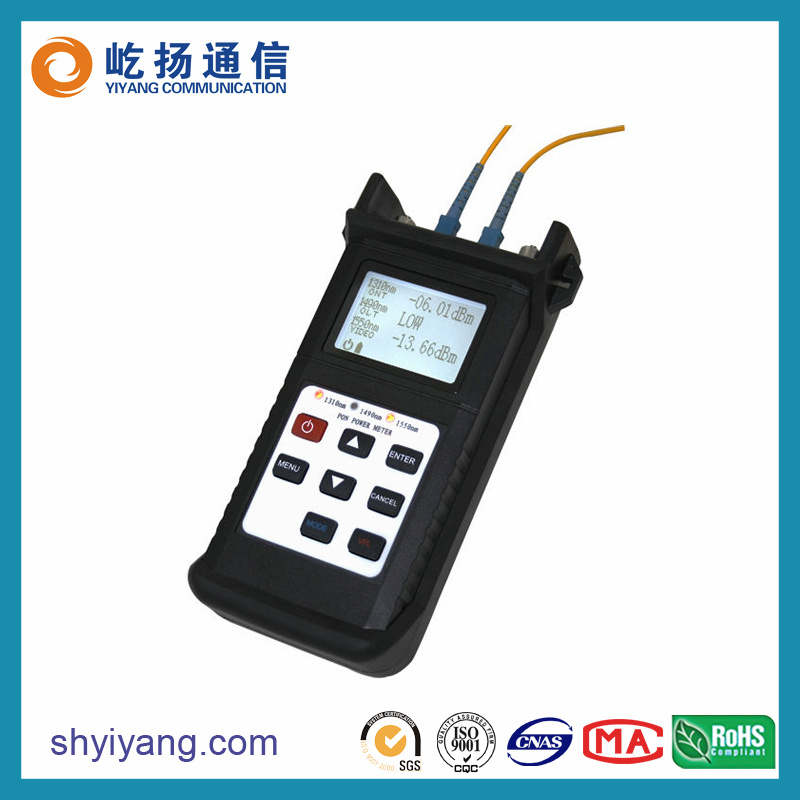

Multi-Function Fiber Optic Test Equipment (YYGL-602/B)
Product Specifications
| Prod Model: |
YYGL-602/B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
GS |
| Condition: |
New |
| Wiring Devices: |
Integrated Wiring |
| Type: |
Fiber Optic Test Equipment |
Product Description
Name: Intelligent Power Meter
Part No.: YYGL-602/B
Specification: -70~+3(dBm)
Detailed Product Introduction:
Summary:
YYGL-602 Handheld Power Meter with self-calibration function is portable precise, durable and handy tester for installation, operation and maintenance of optical network. It features with compact size, switch on/off backlight, automatic shutdown function, ultra-wide measurement range, high testing precision and new self-calibration function and universal interface.
Application:
CATV
Fiber optic project
Fiber optic sensor research
Fiber optic component research and study
Other fiber optic project
Feature:
New self-calibration function
Long battery operation time
Universal AAA battery with continuous operating time of 240 hours
Linearity (mW) and Non-linearity (dBm) parameters display at the same time
Universal interface, UFC/SC/ST, etc, with no need to transform
Quick respond, no need to warm-up
Optional automatic shutdown functionOptional switch on/off backlightTechnical Parameter:| Part No. | YYGL-602/A | YYGL-602/B |
| Wavelength Range(nm) | 800~1700 |
| Detector Type | InGaAs |
| Measurement Range (dBm) | -50~+26 | -70~+3 |
| Uncertainty | ±5% |
| Standard Wavelength (nm) | 850,980,1300,1310,1490,1550 |
| Display Resolution | Linearity Display:0.1% Logarithm Display:0.01dBm |
| Operating Temperature(ºC) | -10~+60 |
| Storage Temperature (ºC) | -25~+70 |
| Automatic Shutdown Time(min) | 10 |
| Continuous Battery Operation Time(h) | 240 |
| Dimension (mm) | 175×82×33 |
| Battery | 3*AA 1.5V |
| Weight (g) | 310 |
Note: Power meters with special specifications are available at customers' requirements.
