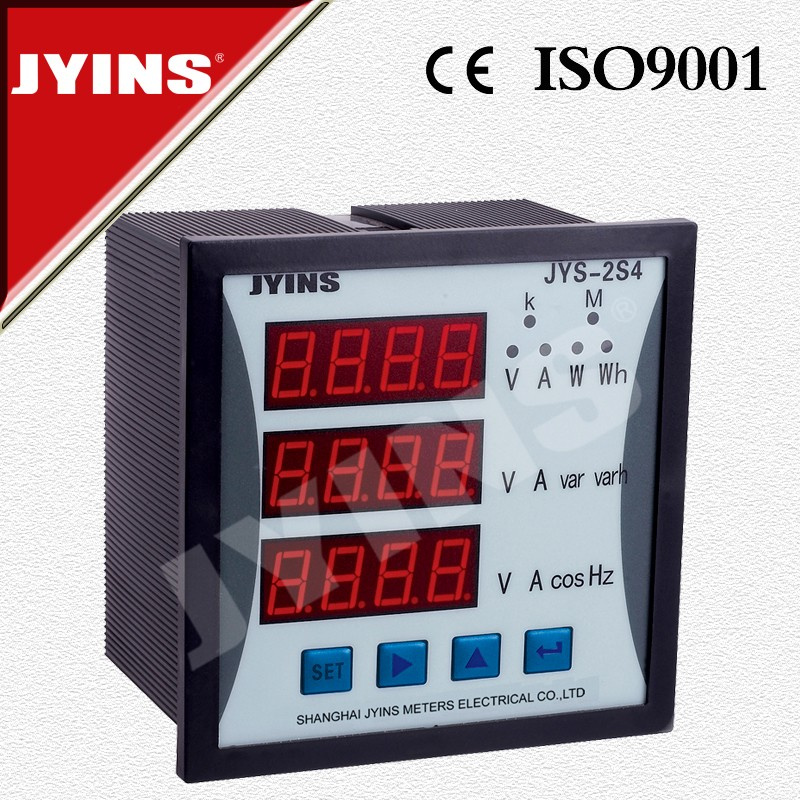

Multi-Functional Digital Meter (JYS-2S4)
Product Specifications
| Prod Model: |
JYS-2S4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
18 Months |
| OEM, ODM: |
Accepted |
| Power Supply: |
According to Your Requirement |
Product Description
Model: JYS-2S4 Multi-Function Power Instrument
Size: Panel dimension: 120× 120mm
Hole cutout dimension: 112× 112mm
Features:
Adopt 4 way 3 rows LED to in charge of showing the commonly used electric consumption parameter by switching over. Under rated voltage reference frequency. And cosφ =1.0 when the Load operating current is 0.001Im. The electric energy meter can start and continous to measure electric energy. When add 115% rated voltage, current loop will disconnect and have no current, and the instrument have no cumulatire electric energy and pulse output.
Technical specification parameter:
1. Input signal
Electric power network: Single-phase three-phase_three-wire three-phase_three wire
Input voltage
Rated value: AC 100V 220V 380V
Over-load: 1.2times rated value(continued), 2 times rated value (10S)
Watt-loss: 0.1VA(pieces/per)
Impedance: 200K
2. Auxiliary power: AC\DC 80-270 V
Watt-loss: 5VA
Specifications
1. CE certificate,
2. Experienced digital meter manufacture,
3. Products already exported to Singapore, USA, Peru, czech etc.
type
Capability
|
PD1999-2S4
|
PD1999-2S7
|
PD1999-2S9
|
PD1999-2SY
|
Importation
Measure
Show
|
network
|
Three phase three wire, four ph four wire
|
voltage
|
Specified value
|
Inform when ordering
|
Over burden
|
Persist: 1.2%, moment: 3/2s
|
Insulation resistive
|
< VA(hour )
|
dissipation
|
> 400k
|
accurancy
|
0.5%(pns test, accurancy class 0.5%)
|
current
|
Specified value
|
Inform when ordering
|
Over burden
|
Persist: 1.2%, moment: 3/2s
|
Insulation resistive
|
< 0.2VA
|
dissipation
|
< 20M
|
accurancy
|
Pns testing (accurancy class 0.2Hz)
|
Yueqing Jyins Electric Technology Co., Ltd. Founded in 1990, is located in the largest manufacturing base of low-voltage electric equipment of China--- Liushi, which is called "the Electric Device Metropolis of China". We are one of leading enterprises specialized in designing, manufacturing, developing and exporting all kinds of high and low voltage electric appliances, such as temperature controller (indicator), thermocouple, shunt, thermocouple wire, thermal resistor, current/voltage meter(panel meter), current divider, gas meters, water meter, KWH meter, automatic nozzle, contactor, relay, circuit breaker, transformer, thermal relays, pushbutton, lightning arrester, dropout fuse, switch, pneumatic, cylinder, cable accessories, power instrument, lighting, doorbell etc.
We have employed 500 workers and our factory covers 4, 0000 square meters area. with total assets reaching 5 million US dollars, we own modern production lines and high quality controlling equipments with scientific administration, professional engineers, highly trained technicians and skilled workers. Consequently, our products are of both high quality and high ratio of performance and are widely exported to worldwide markets with good reputation and credit. Now we are selling products to North and South America, Middle East, Southeast Asia, Western Europe, Africa, Hong Kong, Taiwan area and etc...
"Quality first and user uppermost" is one of our principles. We always strive for best in quality and after-sales services to satisfy customers' demands. We sincerely welcome customers from worldwide to share our good quality products and services. with ceaseless efforts and developments in design and technology, we will surely do better and better. High praise among the customers.
We sincerely welcome our friends at home and aboard to guide us and then develop together.
