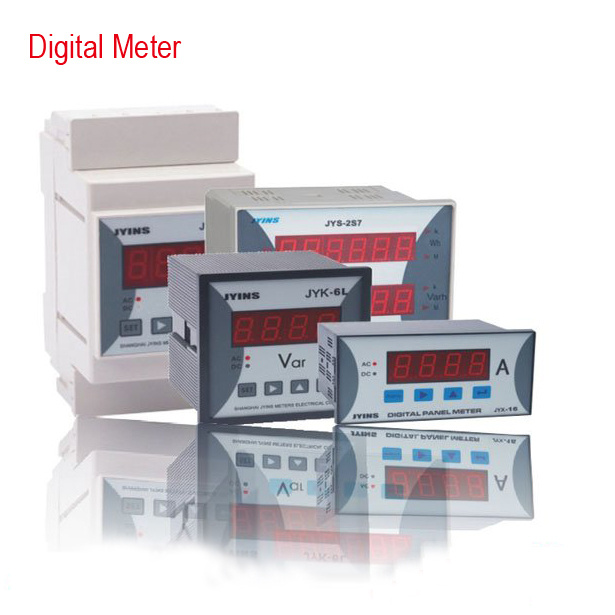

Multi-Functional Digital Meter(JYS/JYK)
Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Electric Equipment: |
Single-phase |
| Installation: |
General Installation Meter |
| Power Source: |
DC Meter |
| Theory: |
Electronic Meter |
| Usage: |
Meter for Industry and Home Use |
Product Description
Model: Multi-Function Power Instrument
Size: Panel dimension: 120× 120mm
Hole cutout dimension: 112× 112mm
Features: Adopt 4 rows LED to in charge of showing the commonly used electric consumption parameter by switching over. Under rated voltage reference frequency. And cosΦ =1.0 when the Load operating current is 0.001Im. The electric energy meter can start and continous to measure electric energy. When add 115% rated voltage, current loop will disconnect and have no current, and the instrument have no cumulatire electric energy and pulse output.
Technical specification parameter:
1. Input signal
Electric power network: Single-phase three-phase_three-wire three-phase_three wire
Input voltage
Rated value: AC 100V 220V 380V
Over-load: 1.2times rated value(continued), 2 times rated value (10S)
Watt-loss: 0.1VA(pieces/per)
Impedance: 200K
2. Auxiliary power: AC\DC 80-270 V
Watt-loss: 5VA
| type Capability | PD1999-2S4 | PD1999-2S7 | PD1999-2S9 | PD1999-2SY |
Importation
Measure
Show
| network | Three phase three wire, four ph four wire |
| voltage | Specified value | Inform when ordering |
| Over burden | Persist:1.2%,moment:3/2s |
| Insulation resistive | |
| dissipation | >400k |
| accurancy | 0.5%(pns test ,accurancy class 0.5%) |
current
| Specified value | Inform when ordering |
| Over burden | Persist:1.2%,moment:3/2s |
| Insulation resistive | <0.2VA |
| dissipation | <20M |
| accurancy | Pns testing (accurancy class 0.2Hz) |
| Frequency | 40-60Hz,accurancy class 0.2Hz |
| Power | Active/inactive see in the power ,accurancy class 0.5% |
| Electric energy measuring | Plsitive and negative to calculate, accurancy class 0.5% |
power
| Working range | AC,DC80-270V |
| Insulation resistive | <5VA |
Output
| Digital interface | Rs485,modbus-RTU treaty |
| The power pulse outputs(light insulation) | 2 road electric power bein exportation ,light insulation |
circumstance
| Working circumstance | 10-60 ºC |
| Store enbironment | -20-70 ºC |
Security
| Insulation | Assistance power,input signal,output signal>1.5KV |
| weight | Input,output,power supplu to outer shell>500 Ω |
shape
| Size(length,width ,height) | 12081208130 |
| weight | 0.5Kg |
