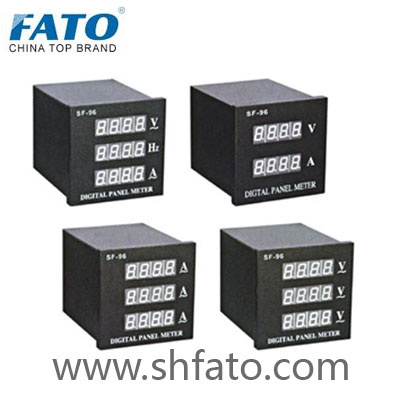

Model: Multi-Function Power Instrument
Size: Panel dimension: 120× 120mm
Hole cutout dimension: 112× 112mm
Features: Adopt 4 rows LED to in charge of showing the commonly used electric consumption parameter by switching over. Under rated voltage reference frequency. And cosΦ =1.0 when the Load operating current is 0.001Im. The electric energy meter can start and continous to measure electric energy. When add 115% rated voltage, current loop will disconnect and have no current, and the instrument have no cumulatire electric energy and pulse output.
Technical specification parameter:
1. Input signal
Electric power network: Single-phase three-phase_three-wire three-phase_three wire
Input voltage
Rated value: AC 100V 220V 380V
Over-load: 1.2times rated value(continued), 2 times rated value (10S)
Watt-loss: 0.1VA(pieces/per)
Impedance: 200K
2. Auxiliary power: AC\DC 80-270 V
Watt-loss: 5VA
Type Capability PD1999-2S4 PD1999-2S7 PD1999-2S9 PD1999-2SY
Importation
Measure
Show
Network Three phase three wire, four pH four wire
Voltage Specified value Inform when ordering
Over burden Persist: 1.2%, moment: 3/2s
Insulation resistive
Dissipation >400k
Accurancy 0.5%(pns test, accurancy class 0.5%)
Current
Specified value Inform when ordering
Over burden Persist: 1.2%, moment: 3/2s
Insulation resistive <0.2VA
Dissipation <20M
Accurancy Pns testing (accurancy class 0.2Hz)
Frequency 40-60Hz, accurancy class 0.2Hz
Power Active/inactive see in the power, accurancy class 0.5%
Electric energy measuring Plsitive and negative to calculate, accurancy class 0.5%
Power
Working range AC, DC80-270V
Insulation resistive <5VA
Output
Digital interface RS485, modbus-RTU treaty
The power pulse outputs(light insulation) 2 road electric power bein exportation, light insulation
Circumstance
Working circumstance 10-60 C
Store enbironment -20-70 C
Security
Insulation Assistance power, input signal, output signal>1.5KV
Weight Input, output, power supplu to outer shell>500 Ω
Shape
Size(length, width, height) 12081208130
Weight 0.5Kg
Basic error of Ioading Power factor Power factor
0.01IE-0.05In 1 1.0
0.05Ie-Imax 1 0.5
0.02Ie-0.1In 0.5L/0.8C 1.0
0.1Ie-Imax 0.5L/0.8C 0.6
