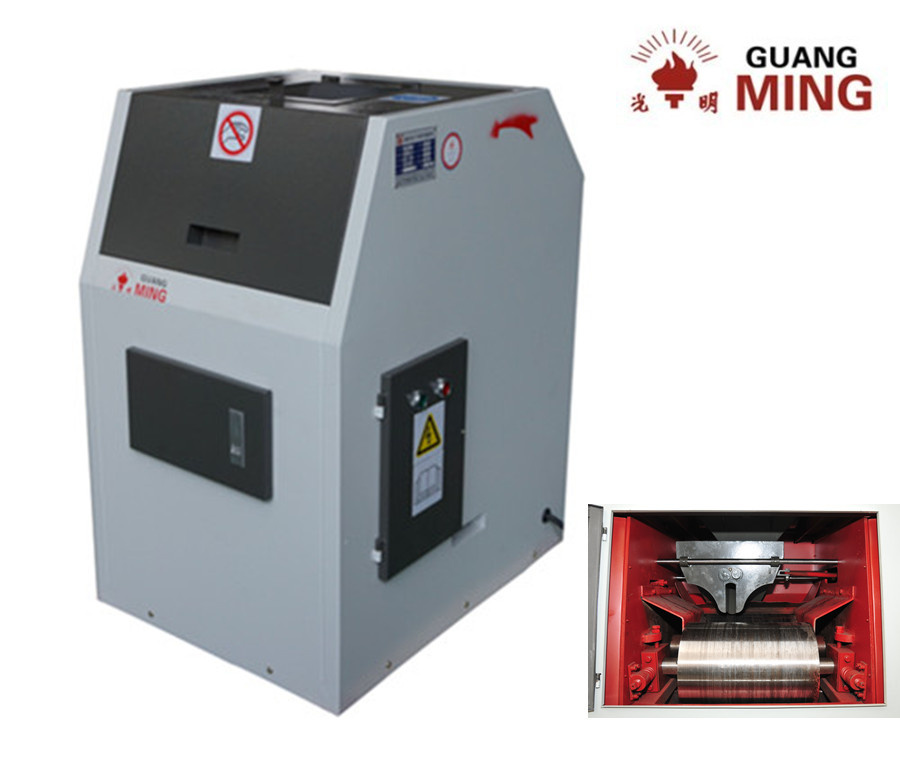

Laboratory ore roll crusher with dividing device
Applications:
The roll crusher is used for crushing high hardness ores, quartz or other solid material in lab for component analysis;
The unit is especially suitable for ores, quartz solid material sample preparation work in the laboratory of industries of coal, electricity, nonferrous metal, metallurgy, chemic, enviroment-friendly department, sicentific research and so on.
Advantages:
1. It shows good performance to the material with the moisture not exceeding 15%;
2. Even discharge size without blocking up;
3. Conservative design, smooth running, easy ajustment and long service life;
4. All moving parts have safeguards which meets the requirement of work safety;
5. Mechanical-electrical integrated controlling and easy to operate;
6. Total electro-static coating surface which makes goods apperance and asy to clean;
7. Removable shell which is convenient for daily maintenance and inspection of the machine;
8. It can work normally on the flat ground without fixing any base.
Model No.
|
GM/Φ250x75
|
GM/Φ250x150
|
GM/Φ300x300
|
Feeding entrance size(mm)
|
75x13
|
150x13
|
300x16
|
Feeding size (mm)
|
≤13mm
|
≤13mm
|
≤16mm
|
Discharging size(mm)
|
0.5-3mm
(Adjustable)
|
0.5-3mm
(adjustable)
|
1-3mm
(adjustable)
|
Handling capacity (kg)
|
300
|
560 |
2000 |
Motor Power (kw)
|
3 |
4 |
7.5 |
Dimension (mm)
|
610x720x900
|
700x720x900 |
870x1350x950 |
Working power supply(v)
|
380 |
380 |
380 |
Total weight (kg)
|
286 |
350 |
520 |
GUANGMING has more than 30 years experience of seeking for the development of sample analysis equipments, and we are specializing in design, research and manufacture the sample preparation and testing machine and always in the lead of technology and market. Our main products are crushing machines, combined sample preparation machines, screening machines, dusters, electrical heating machines, calorimeters and analyzers.
GUANGMING occupies more than 60ares, which includes 18, 000 square meters of production workshops, 3800 square meters of technical center, and 2300 square meters of staff dining room, basketball playground and entertainment place and so on. We have hundreds of employees, and most of them are professional technicians.
To strengthen our industrial advantages, GUANGMING insists on the business concept of "Independent Innovation, Prospering the company through science and technology" and invests lots of money for developing the new products. To satisfy our customers, we pay attention to every details and every process, at the same time, our company also keeps close contact with several scientific research departments, who will take response and give advice to the improvement of products in time.
We also carry out a strict quality management system which is in accordance with ISO9001: 2000. Most of our products have gained the unit recommendation of China Coal Department and Coal Science College. Our General Manager, Ms. Wenli He, has been employed as the technical member of National Standard Technical Committee.
Our products have covered each provinces of China and exported to many other countries like Australia, India, Philippe and Indonesia and so on and received high reputation both at home and abroad.
