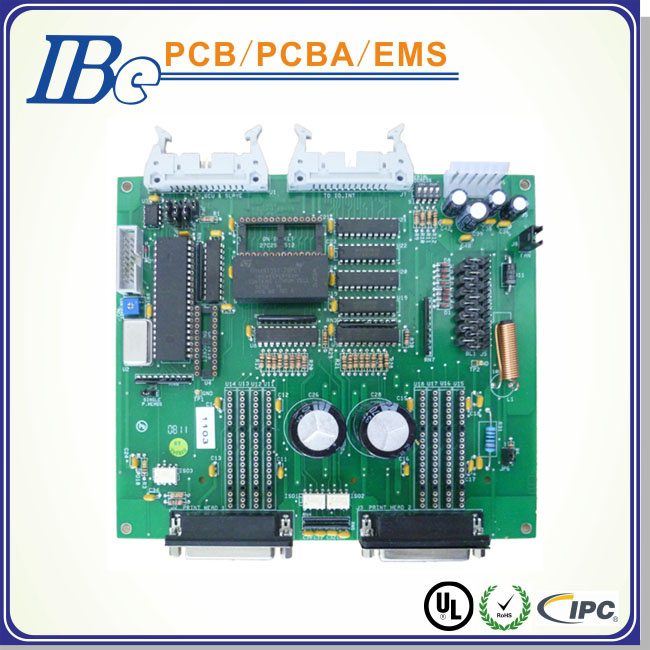

Product Specifications
| Prod Model: |
IBE-0907 |
| Markets: |
North America,South America,Eastern Europe,Oceania,Western Europe |
Product Description
Basic Information:
Layer count: 8 layers
Material: FR4
Thickness: 0.8mm
Minimum hold size: 0.1mm
With blind and buried via
L1-L2, L2-L3, L2-L7, L6-L7 and L7-L8
Professional Eletronics Contract Manufacturer
Established in 1998, IBE Group is a professional Electronics Contract manufacturer, specialized in turn-key solution including electronics design, PCB manufacturing, SMT and PCB Assembly, components sourcing, prototyping, testing etc.
We are dedicated to deliverying highly cost-effective and satisfactory products and services to our diverse customers.
How IBE Group forms:
IBE Electronics Co., Ltd
Product design EMS ODM
PCBA Factory & ODM Office in Shenzhen
Kaige Circuit Tech Co., Ltd
PCB manufacturing
PCB Factory in Shenzhen
Chongqing Kaige Electronics Co., Ltd
PCB manufacturing
PCB Factory in Chongqing
IBE Recent Development
What IBE serves for:
Industry control
Automotive Electronics
Medical Care
Consumer Electronics
Telecom and Security
Metering and Instrument
Energy
LED lighting and display
What Services IBE provides:
IBE PCBA capabilities include:
Fast prototyping
High mix, low/medium volume build
Surface mounting technology (SMT MinChip: 0201) and Ball Grid Array (BGA: 1.0 to 3.0 mm pitch)
Through-hole assembly
Special processes (such as conformal coating and potting)
ROHS capability
IPC-A-610E and IPC/EIA-STD workmanship operation
UL Certificated: E326838
Test solutions include:
Automatic optical inspection(AOI)
In-circuit test (ICT)
Reliability test
X-Ray Test
Analogue and digital function test
Firmware programming
Quality Assurance:
ISO9001 and ISO14001 management systems
Lean production system
ERP and PTS system support for management
IBE believe that only by always delivering the products that meet or exceed your quality requirements, could we earn your continuous trust as your reliable EMS partner.
In order to assure the quality in every level of assembly, we employ a strict quality management system to control the whole production process.
Our Quality processes include:
1. IQC: Incoming Quality Control (Incoming Materials Inspection)
2. First Article Inspection for every process
3. IPQC: In Process Quality Control
4. QC: 100% Test & Inspection
5. QA: Quality Assurance based on QC inspection again
6. Workmanship: IPC-A-610, ESD
7. Quality Management based on CQC, ISO9001: 2008, ISO 14001: 2004
Supply Chain:
We have a professional procurement team with rich experience in sourcing molding, stamping, forming, and injection. And we employ a comprehensive supply chain evaluation system for our suppliers.
In order to choose the best options for our customers' needs on overall competitiveness, IBE would benchmark all our suppliers, based on their quality and environment management systems, flexibility, services, capacity, sustainability, and total cost of ownership.
Both our procurement and engineer team work with all our customers at the initial quote stage to devise the most suitable and competitive sourcing strategy for our customers, based on their product requirements and under their confirmation. In this way, we could indentify and catch every cost reduction opportunities for the customers and reach the lowest total cost of the project.
|
PCB & PCB Assembly Manufacturing capability |
|
|
|
|
PCB Manufacturing |
|
|
PCB Layers: |
1Layers to 18 layer (Max) |
|
Board thickness: |
0.13~6.0mm |
|
Min line width/space: |
3mil |
|
Min mechanical hole size: |
4mil |
|
Copper thickness: |
9um~210um(0.25oz~6oz) |
|
Max aspect ratio: |
1:10 |
|
Max board size: |
400*700mm |
|
Surface Finish: |
HASL, immersion gold, immersion silver,immersion tin, flash gold, gold finger,peelable mask |
|
Material: |
FR4,High Tg, Rogers, CEM-1, CEM-3, Aluminum BT, PTFE. |
|
|
|
|
PCB Assembly |
|
|
Stencil size range: |
1560*450mm |
|
Min SMT package: |
0402/1005(1.0x0.5mm) |
|
Min IC pitch: |
0.3mm |
|
Max PCB Size: |
1200*400mm |
|
Min PCB thickness: |
0.35mm |
|
Min Chip Size: |
01005 |
|
Max BGA Size: |
74*74mm |
|
BGA Ball Pitch: |
1.00~3.00mm |
|
BGA Ball Diameter: |
0.4~1.0mm |
|
QFP Lead Pitch: |
0.38~2.54mm |
|
Testing : |
ICT,AOI,X-RAY,Funtional test etc. |
IBE is a professional EMS Service provider and Electronics Contract Manufacturer, specializing in turn-key solution including Electronic design and engineering, PCB fabrication, SMT and PCB assembly, components sourcing, prototyping, testing and other value-added services for industries including energy/metering, medical care, consumer electronics, game devices, telecom, security, instruments, display and automotive industries. Through these services, we provide added value by offering one-stop cost effective solution for your product development process and enable you to achieve meaningful time to market and cost savings.
With scale of 1200 employees and 10k square meters, we deliver highly competitive services for our diverse, competitive customer base with our own competitive advantages:
1. Highly reliant ODM Service provider with 14 years experience for global clients.
2. Turn-key solution and cost effective performance
3. Strong design and engineering team to provide added value services including design, DFM, value engineering and cost savings.
4. Optimized and rich supply chain management.
5. Our own PCB and PCB assembly factories with highly flexible, fast and quality services.
6. Lean manufacturing with fast delivery and zero-defect oriented quality.
7. High mix &low volume business expert and technology.
8. High qality, flexible, fast response and satisfying service.
We expect to receive your emails or enquiries hope to open discussions with you for business opportunity. We will process our work and give fast response upon the emails of your general inquiries or any questions.
