Product Specifications
| Prod Model: |
DXDK900A+HDS120 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Grain And Powder: |
1-20g/Bag |
| Liquid: |
5-40ml |
| Automatic Grade: |
Automatic |
| Driven Type: |
Electric |
| Packaging Material: |
Film |
| Material Type: |
Grain |
| Applicable Industry: |
Medical |
| Application: |
Powder ,Granule ,Coated Tablet |
| Packaging Type: |
Sachet or Bag |
Product Description
1, Usage:

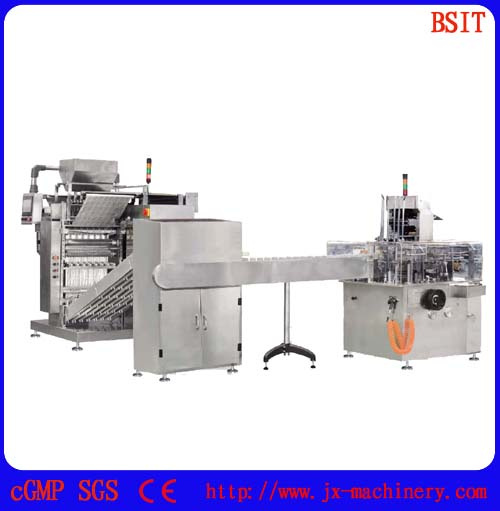

The producing line is suitable for the sachet packing and cartooning combinational production, it can pack pharmaceutical, food, cosmetic;
And products in other field. The materials should be granule and liquid. It realizes the fully automatic producing process from packing to Cartoning, saves a lot of labor power and reduces the producing cost. It has the advantage of special structure, full function, and stable Performance, reliable quality, which has got the international and domestic leading level.
2, Main Characteristics:
1. PLC and servo motor control guarantee the synchronization of producing line.
2. Human machine interface with easy and clear operation.
3. Good stainless steel as the material, according with the GMP standard.
4. DXDK900A equipment with the function of electric alignment to ensure a complete pattern and precise position on both faces of the Package, it can meet the highest standard.
5. The HDS120 equipment can detect for short of material, instructions and cartons and will have the methods to deal with these and

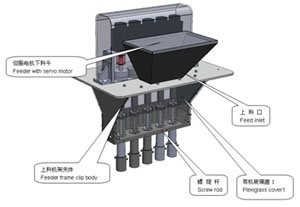

Powder screwing model as following:
Ensure the rate of finished products.
6. The producing line has the functions of mutual communication, detection, alarming and prompting.
Main Specification of HDS120 Multifunction Automatic Cartoning Packing Machine:
Technical Specifications:
1. Compact structure, move smoothly.
2. Four sides sealing, many lanes producing at the same time, high efficiency.
3. All of PLC automatic control, frequency step-less speed regulation, relabel function, easy operation.
4. No need to change the mould if you want to change the length of board, just adjust the speed governor.
5. Photo-electricity inspects spot of printing guarantee design of package in good order and exact-site.
6. Applicable for packing pellet, powder sticky and semi-sticky material in pharmaceutical, food processing and Cosmetic industries.

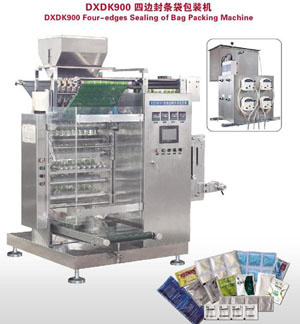

DXDK900 Main Technical:
|
wrapper material |
Thickness: 0.07-0.1mm |
|
Cutting frequency |
25-40 times/min |
|
Packing dose |
Granule, Powder: 1-20g/bag
Liquid, Semi-stiky: 5-40ml/bag: |
|
Bag Size (L) |
40mm-180mm |
|
(W)Bag Size (W) |
40-420mm |
|
Wrapper Width |
900mm |
|
Max efficiency |
150bags/min (powder) |
|
Maximum number of vertical cutting |
4-6 lines |
|
Power |
7.7Kw |
|
Air consumption |
3.2 L/hour |
|
Power Supply |
380V/50Hz |
|
Machine dimensions(L× W× H) |
1500x1540x2200mm |
|
Machine weight |
1200KG |
Liaoyang bright shine pharmaceutical machinery imp & exp Co., Ltd. is a group enterprise which main manufacturing & selling pharmaceutical machine and filling packing machine, as well-known work for solid preparation machine, liquid filling and packing machinery line. It has been 16 years enough experience in pharmaceutical and packing machine solution. All machine guarantee for 1 year, meet with GMP international standards. Our team main work for pharmaceutical, chemical, cosmetic, food, industries, also supply turn-key project for production line process design and solutions
By high quality and delivery quickly, after sale service from more customer approve. Welcome friend visiting and have long term cooperation.
Main product range:
1...Solid pharmaceutical machine: Mixer, granulator, crusher, dryer, Tablet press, film coating, capsule filling machine
2. Filling capping, labeling, carton packing line: E-liquids, eyedrop, syrup, vial, spray, ampoule, bottle, tube, essential oil, suppository make packing prodution line
3. Plastic ampoule filling packing machine: Cream, fluid, liquid, oil, paste.
4. Glass ampoule filling machine: Open& closed(d) glass ampoule for injection, oil, liquid
5. Blister packing machine: Tablet/capsule, pill, cream, fluid, liquid, oil, paste.
6. Sachet bag packing machine: Granule, powder, liquid, tea
Internet market:
BSIT machine has been exported machine to UK, Spain, Australia, Russia, India, New Zealand, Pakistan, viet, Tunisia, Thailand, Malaysia, El Salvador, Hungary, Turkey, Sri Lanka, Jordan, Bulgaria, Switzerland, Taiwan, Chile, Bangladesh, Guatemala, Peru, Colombia, south Korea and more countries. Until now, by business raised every year that will add more export country and add more sole agency in the world.
Our Advantage:
1. All machine will meet GMP and most machine passed CE certificate
2. Professional after-sale service, Engineers instruction difference country in the world. Make FAT testing and SAT testing.
3. Over 16 years manufacturing experiences in pharmaceutical packing& filling process machine
4. Our Team will give you quick feedback except they are holidays.
5. Reasonable price with good quality and best delivery time.
6. We can customize the machine according to your request.
Business Type: Manufacturer/Factory,Trading Company
Registered Capital: 10000000 RMB
Plant Area: 501~1000 Square Meters
Management System Certification: ISO 9001,GMP
International Commercial Terms: FOB, CFR, CIF, DDP, CIP, CPT, EXW
Terms of Payment: LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Average Lead Time: Peak season lead time: one monthOff season lead time: 1-3 months
Number of Foreign Trading Staff: 4~10 People
Main Customer(s):
| Company Name: | ALSI PHARM COMPANY |
| Country / Region: | Russia |
| Products You Supply: | Pharmaceutical machine, tablet press, mix, tablet film coating, granulator, dryer, capsule filling machine, liquid filling machine, carton packing machine |
| Company Name: | Saleem company |
| Country / Region: | Pakistan |
| Products You Supply: | Blister packing machine, carton packing machine, tablet press, granulator, coating machine,capsule filling machine |
Export Year: 1995-07-07
Export Percentage: 71%~90%
Main Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Export Mode: Have Own Export License
Factory Address: xinhua road 111-18,liaoyang,liaoning, china
R&D Capacity: OEM, Own Brand(BSIT)
No. of R&D Staff: 5-10 People
No. of Production Lines: Above 10
Annual Output Value: US$5 Million - US$10 Million
