Hongkong Koon Technology Ltd. >> Multi-Party Paging Broadcasting System PA3

Multi-Party Paging Broadcasting System PA3

Name: Multi-Party Paging Broadcasting System PA3
Brand: china-manufacturer-directory.com
SKU: 750059105
Availability: InStock
Rating: 4.4 (64 reviews)

Supplier:	Hongkong Koon Technology Ltd.
Price:	US $ 1/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	PA3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Stainless Steel
Keypad:	Yes
Handset:	Yes
Impact Protection:	Ik09
Water Proof:	IP66
Size:	227 X 293 X 135mm
Hook:	Yes
LCD Display:	Yes
Vandal Resistant:	Yes
Lighting Protection:	Yes

Product Description

Multi-Party Paging Broadcasting System PA3

l Hand in hand cable connection to save cable

l Two-way, all-party communication

l Wall mount, desktop, models

l Indoor, outdoor and hazardous location models

l Center power supply (all in one) available in 110VAC~ 230VAC within Distance Maximum to 4KM within 30 extension

l If over 30 extension and over 4KM, each station need AC power supply 110VAC~ 230VAC

l Automatic broadcasting with 8W loud speaker

l Analogue system auto answer and auto stop

l Self healthy check

l LCD display for caller ID and the dialing number.

l Last number repeat dial

l ID number programable

l 2 speed dial key

Introduction

The "Multi-Party Talk" Paging system PA3 is designed for communication in industrial environments where high noise, corrosive atmospheres, hazardous areas and extremes of temperature, dust and humidity create hostile environments.
The "Multi-Party Talk" system allows operators to both broadcast instructions over the system speakers and hold conversation with two or more people.

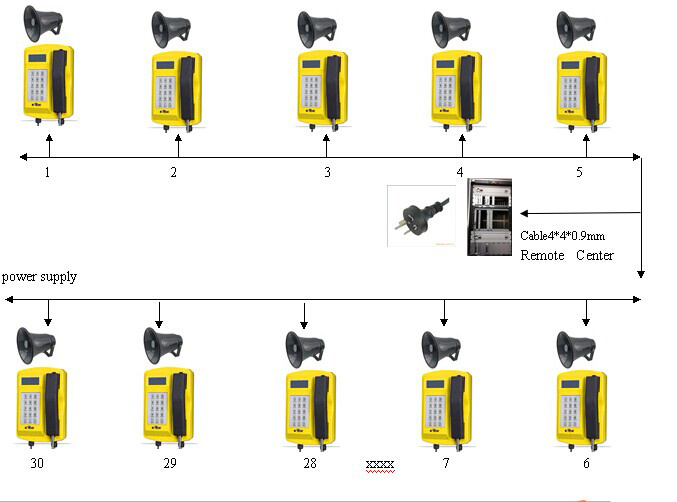

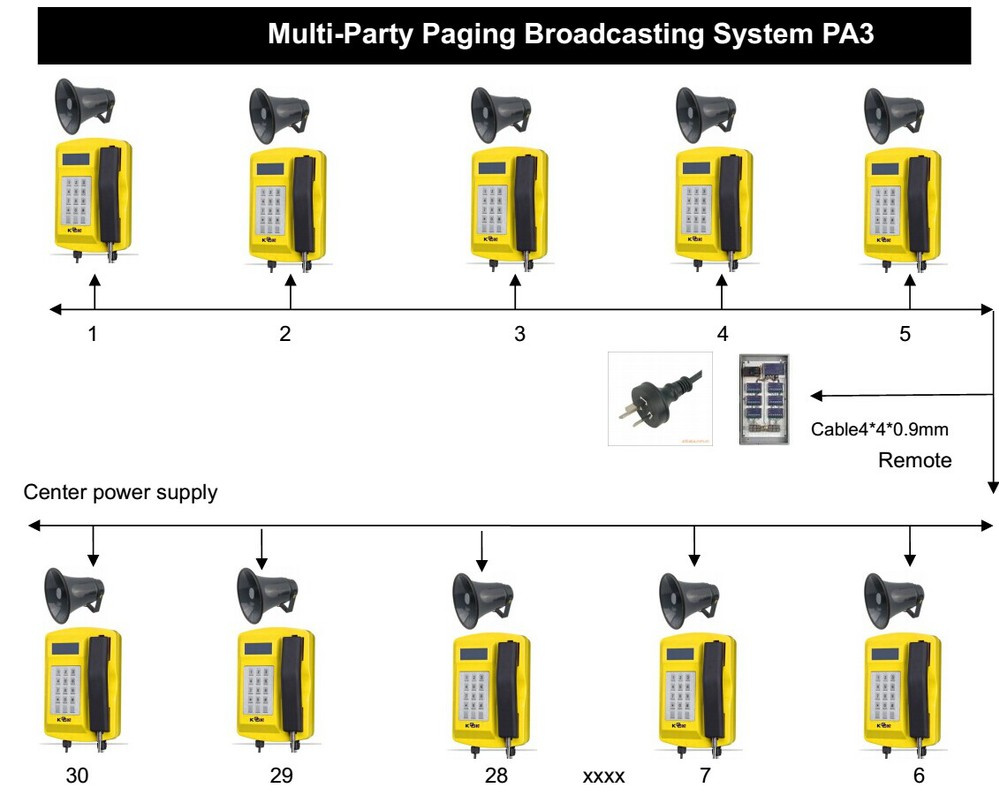

To initiate communication or broadcast over the system to all other station, the operator at one of the station lifts the handset from the cradle, presses * to call and speak to all the other party. Speaks into the microphone. All there station ringing and autoanswer. All the other user at all other station can joins the conversation by lifts the handset and speaking into the handset. The system allow all party simultaneous conversation without cross-talk or interference. After conversation each station will auto off to release the line.
To initiate communication or broadcast to one of the other station, the operator at one of the station lifts the handset from the cradle, presses ID number (extension number) which you want to call, and speak to them. After conversation each station will auto off to release the line.

Features
Hand in hand cable connection to save cable
Two-way, all-party communication
Wall mount, desktop, models
Indoor, outdoor and hazardous location models
Center power supply (all in one) available in 110VAC~ 230VAC within Distance Maximum to 4KM within 30 extension
If over 30 extension and over 4KM, each station need AC power supply 110VAC~ 230VAC
Automatic broadcasting with 8W loud speaker
Analogue system auto answer and auto stop
Self healthy check
LCD display for caller ID and the dialing number.
Last number repeat dial
ID number programable
2 speed dial key

Specification
1. Robust SMC body, vandal resistant and tamper resistant
2. Weather resistant to IP66 standard, service temperature range from:-30ºC to +75ºC
3. Magnetic reed hook-switch
4. Cable line powered. No external power or battery back up required.
5. Lightening protection to ITU-T recommendation K.21
6. Handset: made of special engineering plastic, high anti-knock resistance, Weatherproof, armoured cable optional,
7. Hearing Aid compatible receiver,
8. Extension integrity wiring to enable the other station to check if the telephone unit is still operational for Self healthy checking
9. Selectable 7 minute time out, to release the line if the handset is left off hook. Optional
10. Vandal resistant and tamper-resistant hardware,
11. Easy installation/ replacement

Application
Popular applications include offshore, power plants, TBM machine, security room, metal processing plants, mining operations, paper mills, offshore platforms, water treatment plants, and manufacturing, packaging, and processing plants.

Wire requirements:

PA3SP-18 QTY(working/ standby)	Distance (m)	WireDiameter (mm)	Cable Characteristic	Max Connection Distance (km)
8(1/7)	500	0.9	3*2	4
15(1/14)	500	0.9	4*2	7.5
24(1/23)	500	0.9	3*4	12
26(1/25)	500	1.2	2*4	13

Power supply:
Center power supply (all in one) available in 110VAC~ 230VAC within Distance Maximum to 4KM within 30 extension
If over 30 extension and over 4KM, each station need AC power supply 110VAC~ 230VAC

Installation

Packing details:

1pcs in each inner CTN box Size: 439*277*191 mm G.W: 5.7kg
4pcs in outer CTN box Size: 566*445*420mm G.W: 24kg
