Product Description

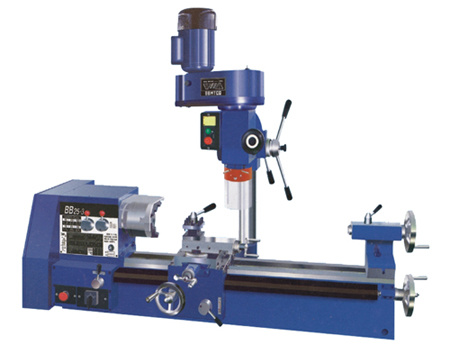

Very practical machine with leadscrew for turning / milling / drilling of parts
Infinitely variable speed adjustment, with digital speed indicator for 2 ranges -quiet belt drive for turning, 2-step gear for milling
Easy tooling change-over from turning to drilling / milling
Rigid machine bed with hardened and ground guideways, taper gibs for zero-backlash adjustments
Precision bearings ensure high spindle concentricity
Tailstock adjustable for taper turning
Milling unit with swivel head
Cross slide with T-slots for parts clamping
| Model | BB25 |
| Max. swing diameter over bed | 250mm |
| Max. workpiece diameter over carriage | 130mm |
| Max. length of workpiece between certres | 700mm |
| Max. cutting length | 660mm |
| Taper of hole in spindle / hole | MT4 / Ø 27mm |
| Range of spindle speed (6 steps) | 115~1620 rpm |
Range of carriage logitudinal feed
per revelution of spindle | 0.05~0.1mm/r |
| Range of screw thread (metric/inch) | 20 kinds 0.2~3.5mm / 8~56TPI |
| Range of screw thread (mod) | 10 kinds 0.2~1.25mm |
| Motor | 0.37; 0.55 KW |
| Max. drilling diameter | 16mm |
| Max. diameter of vertical milling cutter | 20mm |
| Max. diameter of vertical milling face | 63mm |
| Taper of hole in spindle nose | MT3 |
| Max. distance between spindle box | 160mm |
| Max. quill movement of spindle | 80mm |
Max. horizontal rotation of spindle
box around column | + 180° |
| Max. inclination of spindle box (left right) | + 90° |
| Range of spindle speed (4 steps) | 400~1640 rpm |
| Motor | 0.37; 0.55 KW |
| Weight of machine | BB25-1 | 145 / 155 kgs |
| BB25-3 | 218 / 238 kgs |
