| Price: | US $ 0.3/Meter |
|---|---|
| Trade Terms: | FOB,CIF,FCA |
| Min Order: | 500/Meter |
| Pay Type: | L/C,T/T,Paypal,Western Union |
Product Features
Material:
Inner tube is made of SBR or NR; or SBR&NR blend; outer cover is made of SBR or NR; or SBR&NR blend
Structure:
1.Common type: Interior lining +Strengthen lining +Exterior lining.
2.Strength type (three lining and two weaving fiber): Add middle rubber lining and a weaving fiber base
on the common type.
Color: black, red, blue, green, yellow, white, grey
Temperature: -25ºC—70ºC
Product Application
For the transportation of high pressure air or water or oil liquid.

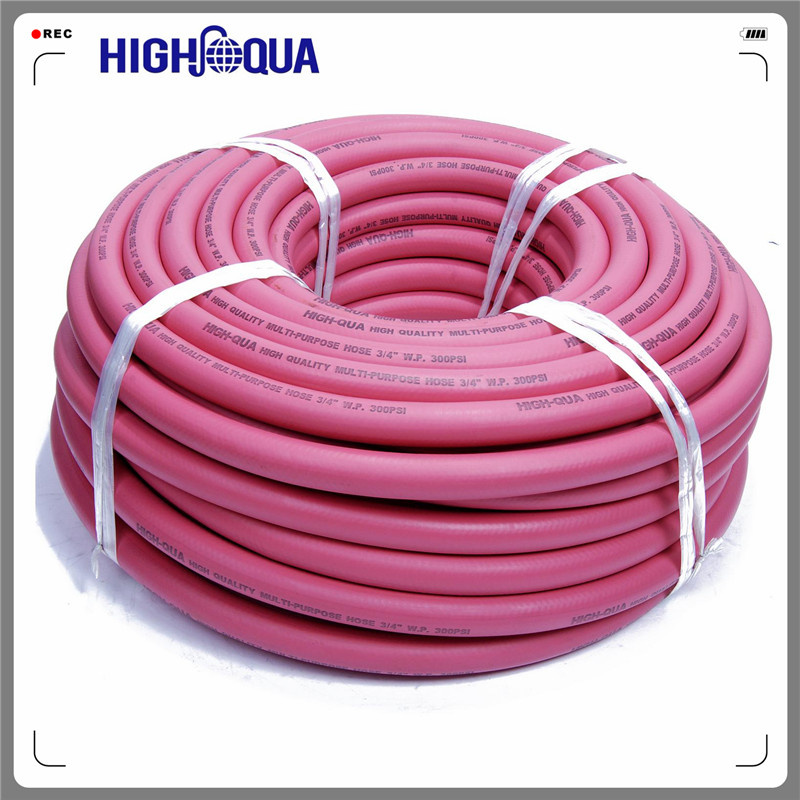

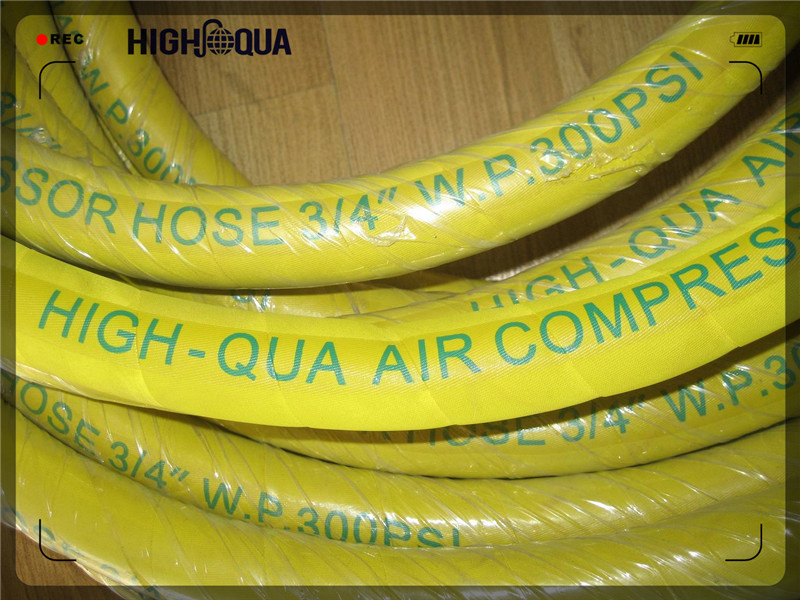

Product Show of Rubber Hose
| I.D. | O.D. | W.P. | REIFORCE LAYER | WEIGHT | UNIT LENGTH | |||
| mm | in. | mm | psi. | mpa. | kg/m | m/roll | ||
| 3/16 | 4.8 | 0.45 | 11.5 | 300 | 2.07 | 1 | 0.15 | 100 |
| 1/4 | 6.4 | 0.63 | 16 | 300 | 2.07 | 1 | 0.18 | 100 |
| 5/16 | 7.9 | 0.59 | 15.0 | 300 | 2.07 | 1 | 0.22 | 100 |
| 3/8 | 9.5 | 0.75 | 19.1 | 300 | 2.07 | 1 | 0.27 | 100 |
| 1/2 | 12.7 | 0.91 | 23.1 | 300 | 2.07 | 1 | 0.40 | 100 |
| 5/8 | 15.9 | 0.96 | 24.5 | 300 | 2.07 | 1 | 0.50 | 100 |
| 3/4 | 19.1 | 1.14 | 29.0 | 300 | 2.07 | 1 | 0.75 | 100 |
| 3/4 | 19.1 | 1.18 | 30.0 | 300 | 2.07 | 2 | 0.80 | 100 |
| 1 | 25.4 | 1.42 | 36.1 | 300 | 2.07 | 1 | 0.95 | 100 |
| 1 | 25.4 | 1.42 | 36.1 | 300 | 2.07 | 2 | 0.95 | 100 |
| 1 1/4 | 31.8 | 1.75 | 44.5 | 300 | 2.07 | 2 | 0.70 | 50 |
| 1 1/2 | 38.1 | 2 | 54.0 | 300 | 2.07 | 2 | 0.85 |
50 |
| Prod Model: | Rubber hose |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| I.D: | 1/4''~1'' |
| W.P: | 20bar |
| B.P: | 60bar |
| Length: | 100m,50m, or as Request |
| Appearance: | Smooth or Clorth Surface, Black or Colorful |
| Brand: | Print and Embossed |
| Product Standard: | ISO 2398 |
| Material: | Natural Rubber |
| Color: | Color |
| Capability: | Water Rubber Hose |
