Multi-Range Timer Switch (H3CA-8, H3CA-A)
Product Specifications
| Prod Model: |
H3CA-8, H3CA-A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Theory: |
Electronic |
| Usage: |
Timer Switch |
| Type: |
Timer |
| Function: |
Programable Time Switch, |
Product Description
Omron type Multi-Range Timer Switch (H3CA-8,H3CA-A)LCD Display.
Time Switch(Timer relay, 24 hour timer,programable time switch, relay,timer)
Detailed Product Description
Features:1) Voltage: AC 24V - 220V 50Hz / DC 24V - 110V
2) Contact: H3CA-A8Timed 2PDT H3CA-8HTimed SPDT,Inst SPDT
3) Operation:H3CA-8On-delay H3CA-8HOn-delay with inst.contact
4) Timing ranges: 99.9S-9990H

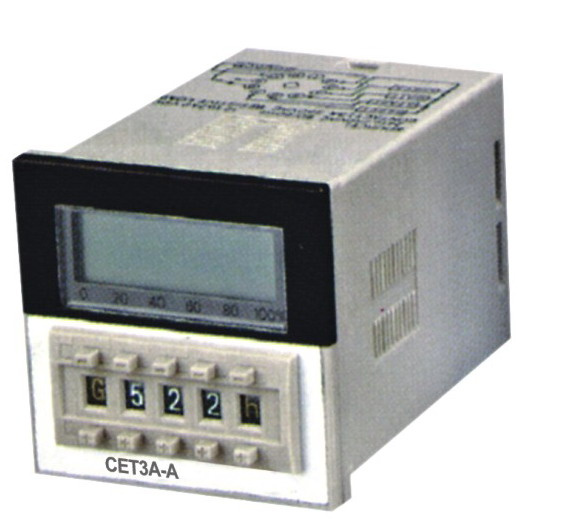

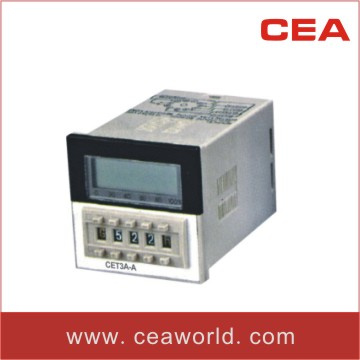

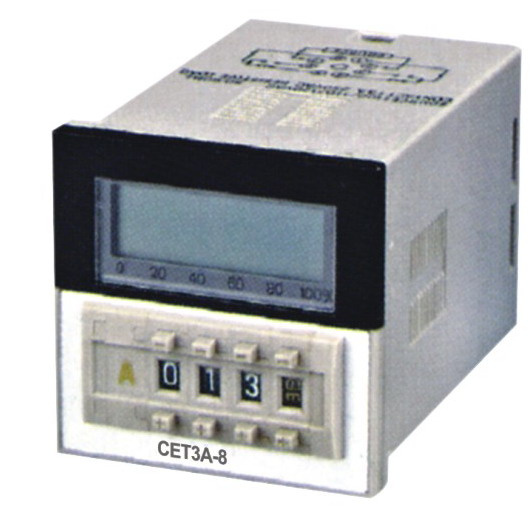

Product Photo:
| Classification | Digital Timer |
| Model | H3CA-A | H3CA-8 |
| Dimensions | 48H× 48W× 81.6D |
| Mounting & Socker | Surface(-N) | PF113A(E) | PS-08, P2CF08 |
| Flush(-Y) | US-11 | US-08, P3G-08 |
| Full Timing Range | 0.1s ~ 9990h |
| Rated Voltage | 24~240V AC/DC
DC(V): 12, 24V
AC(V): 110~240V |
| Indicator Operating | LCD |
| O/P Contact | Model | H3CA-A | H3CA-8 |
| Time Limit 1C | 5A | |
| Time Limit 2C | | 5A |
| Instantenous 1C | 5A | |
| Life | Mechanical | 10 7 times |
| Electrical | 10 5 times |
| Accuracy | Repea Error | ± 2% Max. |
| Setting Error | ± 5% Max. |
| Voltage Error | ± 5% Max. |
| Temp. Error | ± 2% Max. |
| Reset Time | 0.5 Sec. Max. |
| Consumed Power | 100~240VAC: 10VA 12VDC, 24~240VDC: 1.5W |
| Ambient Temperature | -10º C~+55º C |
| Ambent Huminity | 35~85%RH |
| Weight | 100g |
| Connection Diagrams & Timing Chart | -- | -- |
