Product Specifications
| Prod Model: |
PHW-2000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Length: |
3550 Mm |
| Width: |
1050 Mm |
| Height: |
1650 Mm |
| Gross Weight: |
2200 Kg |
| Type: |
Vibration Testing Machine |
| Weight: |
>2000Kg |
| Power Source: |
AC380V |
Product Description

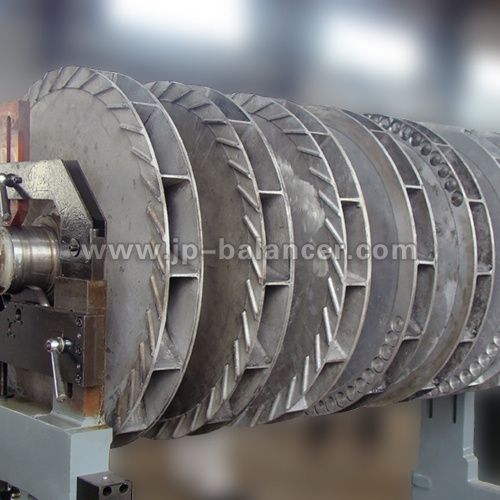

Multi-stage centrifugal impeller balancing machine(PHW-2000)
Production Description
Special designed brackets can effectively transmit mechanical force
The durable and reliable sensor possesses high sensitivity
The permanent calibration brings high accuracy

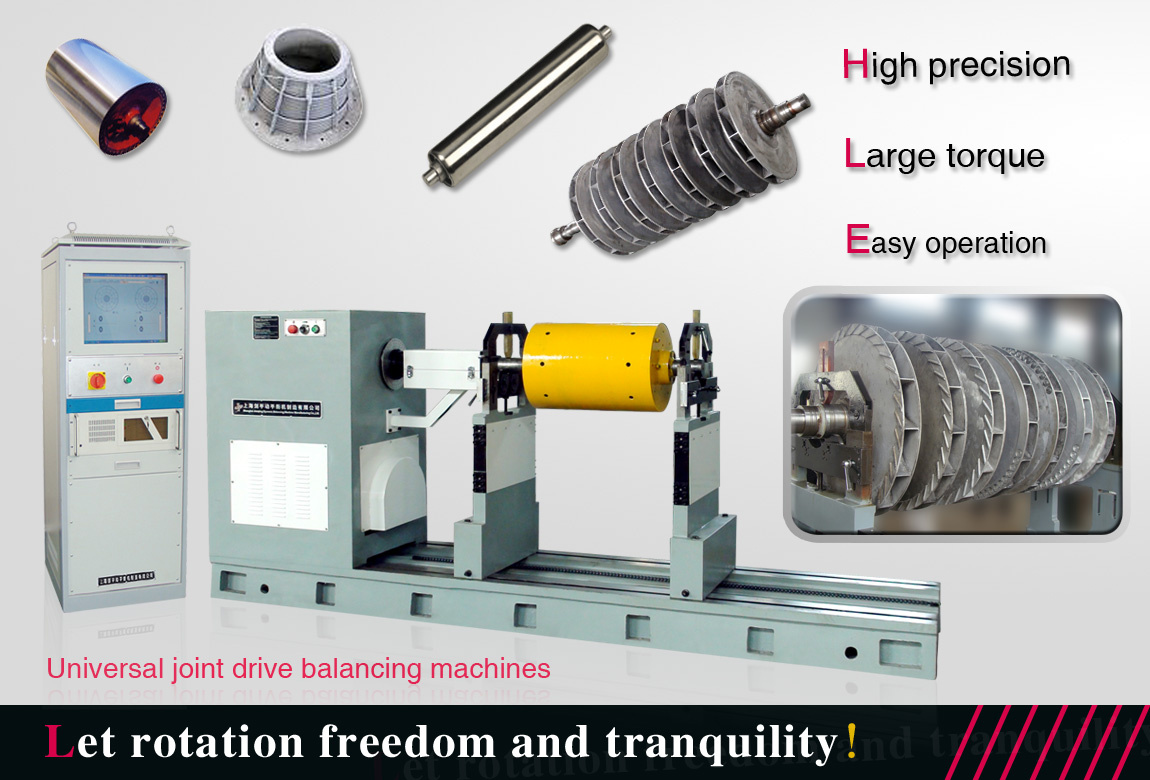

Driven by universal coupling,transmit the power steadily
Applicable to rotors which can't be driven by belt or need large power
Advanced electrical measuring system and friendly man-machine interface
Multi-Stage Centrifugal Impeller Balancing Machine (PHW-2000) is also mainly used in checking the balance of rotatable bodies such as medium-sized and large-sized motors, spindles of machine tools, blower, centrifuges, generator rotor , clinopodiums, pump impeller. drying cylinder. ceramic machinery,rollers,rubber sticks,etc.. Driven by universal joints, equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. With wide speed range,large driving power, high precision and easy operation etc
Special Features
The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanxiang Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.

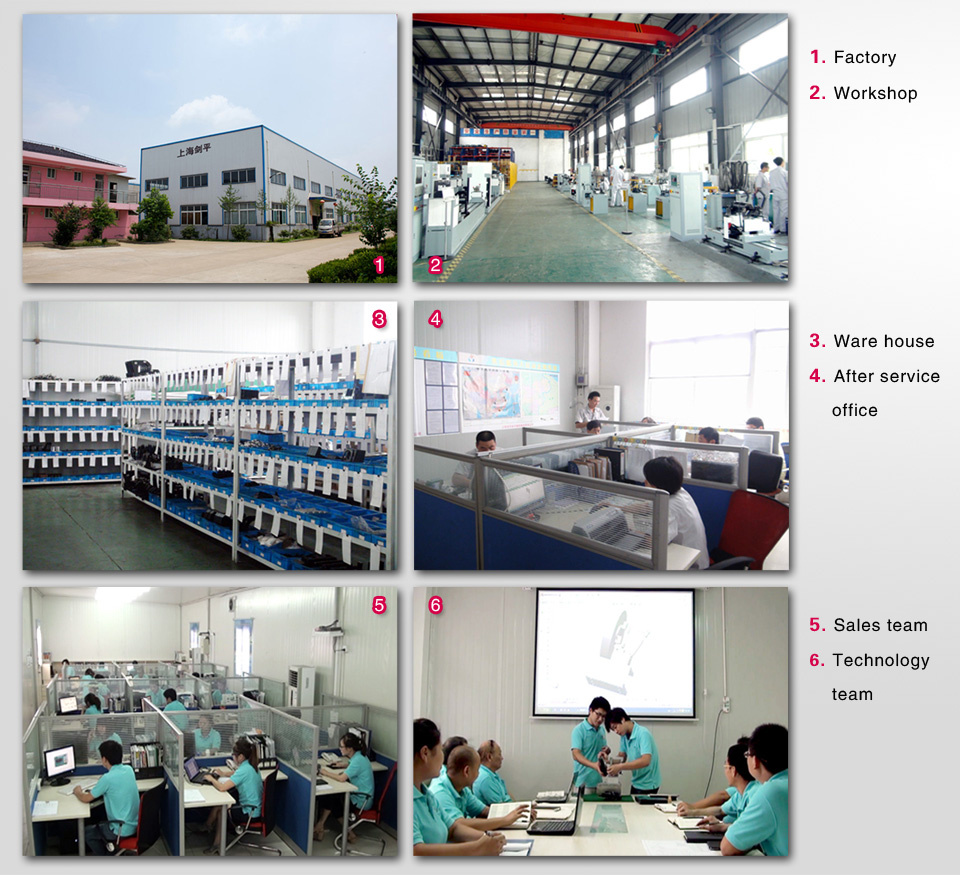

Factory Outlook
Certificates
Production Parameters
|
Technical data at a glance |
PHW-2000 |
|
Mass Scope of Workpiece (kg) |
2000 |
|
Max Diameter of Workpiece (mm) |
1800 |
|
Distance Between Two Support Bearings (mm) |
Min:100 |
|
Journal Diameter Scope of Workpiece (mm) |
40~240 |
|
Max Distance between Driving Flange and Right Bearing Support (mm) |
1800 |
|
Rotation Speed of the Main Axis (r/min) |
560,1490 1) |
|
Motor Power (kw) |
7.5 2) |
|
Torque of Universal Joint Shaft (N.m) |
300 |
|
Min Achievable Residual Unbalance Amount (emar) |
≤ 1g. mm/kg |
Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd. is a professional manufacturer of dynamic balancing machine, which locates in the largest city of China-Shanghai. The high-tech business entity composed of scientific and technical personnel who have devoted to the design, development and manufacturing of balancing machines for many years as well as the backbone elite with abundant experience.
Dynamic balancing machine produced by the company cover horizontal Balancing Machine, vertical Balance Machine, various semi-automatic Balancing Machine, automatic Balance Machine for industrial production flow, special dynamic balancing machine for turbo, main shaft of machine tool, crankshaft of automobile, driving shaft, electric armature, fans, roller, aerospace engine, on-site balance for power factory and station, including automobile, electric, aerospace, turbo, common machinery industries. The products are also batch exported to Occident, Australia, South Africa, Russia, Middle East, Southeast Asia and etc.
Company sticks to a "Human Oriented" management pattern and attaches importance to the selection and cultivation of qualified employees. Outstanding expertise and employee quality guarantees high-quality products. What' S more, good after-sale services and technical support eradicate your fear of trouble in the future when purchasing or using Jp balancing machine. Company has won AUDITED SUPPLIER by SGS-CSTC and passed ISO9001: 2008 authentication of TUV. CE Certificate of Ente Certificazione Macchine
Quality is our fundamental, credibility is our aim, customer satisfaction is our eternal pursuit. Welcome visits, discussions and suggestions as well as inquiries from the new and old customers. Wish to establish a long-term partnership and friendship with clients all over the world
