Product Specifications
| Prod Model: |
DDSF8800 |
| Markets: |
South America,Southeast Asia,Africa,Eastern Asia |
Product Description

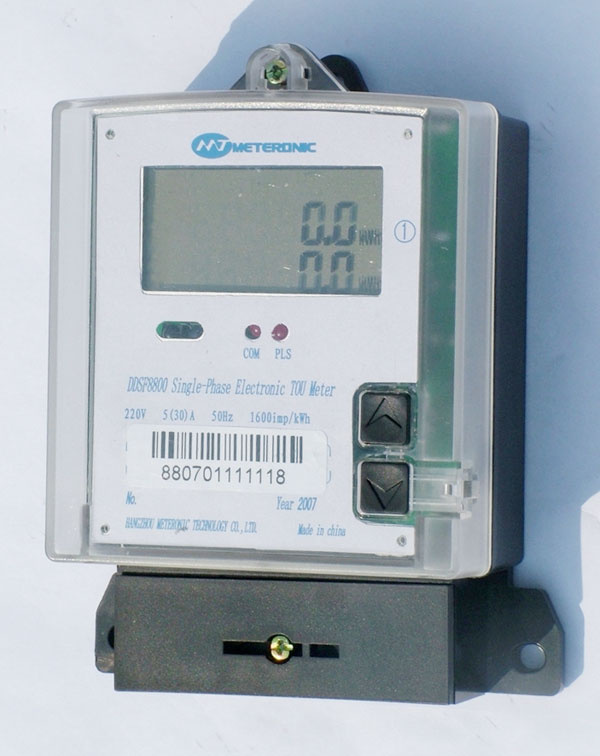

Multi-Tariff Electric Meter
DDSF8800 single-phase two-wire electronic multi-tariff meter features its multi-tariff function and competitive price. It complies with IEC62053-21.
Measured quantities :
Active energy measurement time of use
Tariff Structure:
4 tariffs
8 sets of time segment
12 time segment per day
12 time zones
Data Storage:
12-month energy data
12-month Maximum Demand data
100-day energy freeze data storage
Event record:
Record of power break and resumption
Latest programming
Communication interface:
RS485 with bit rate of 1200 bit/s
Infrared interface
Other functions:
Power break meter display and reading
Password protection
| Accuracy class | Class 1 for active | Rated Frequency | 50Hz or 60Hz |
| Rated voltage | 120V or 220V | Voltage range | ±30% |
| Rated current | 2.5(10)A 5(20)A 5(30)A 10(40)A 10(60)A 15(60)A 20(80)A |
| Power consumption | Voltage circuit | ≤ 1W/4VA |
| Current circuit | ≤ 0.5VA |
| Temperature | Operation | -25 - +55 |
| Storage | -40 - +70 |
| Humidity | < 90% | Starting current | 0.4Ib% |
| RTC accuracy | ≤ 0.5s/day | Battery | 3.6V lithium |
| High voltage | 4kV | Impulse voltage | 6kV |
| Dimension | 156(L)x122(W)x 58mm (D) | Weight | 0.5kg |
Meteronic is an ISO9001 certified professional manufacturer for electricity metering system. We are headquartered in Hangzhou West Lake Industrial Park, China. Hangzhou is the capital city of Zhejiang province and only two and half hours drive from Shanghai. The city of Hangzhou was famous for its beautiful scenery and centuries-old culture, but now it is well-known for its prominent central position in Yangtze River Delta with the most active trade and business environment in China.
Electricity metering is our core business and competence. We offer a complete range of products from single-phase to three-phase, from multi-tariff to multi-function, from GPRS/CDMA communication to power line carrier and from meter to prepayment meter system.
Members of the top management team are all with many years' experience in their respective fields of corporate management, investment, R&D, manufacturing, international trade and business.
R & D team is composed of about 20 specialists led by senior managers with more than 20 years of experience in the industry. Our registered patents are the best proof of our talent. Our strong capability in R & D enables us to carry on R & D projects by ourselves or on joint development bases.
We collaborate with our partners to serve our overseas customers. Years of experience on international trade and business are the source of confidence and trust for our customers. In order to maximize the efficiency, we have on-line Trade Manager on our website to narrow the gap on language, time and culture.
China is recognized as the world manufacturing centre. We are moving further in production management and our ambition is to change the image of poor quality low price to good quality competitive price. Our factory covers an area of 2, 000 square meters with an annual production capability of over 2 million meters. We have optimized the on-site management and our fully-automated quality control system with software calibration has minimized errors caused by manual operation.
We are flexible on ways of cooperation. Joint participation of international bid, ODM & OEM, SKD & CKD are all welcome. We never fail your trust because we are metering expert.
