Multifunction Process Calibrator

Product Specifications

Prod Model:	SPMK518
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measurement M Voltage +-75mv:	Measurement Current DC+-30mA
Measurment Voltage+-30V:	Frequncy 1-50Hz
Application:	Mechanical Instrument
Power:	Electricity
LCD Display:	TFT Colour Screen

Product Description

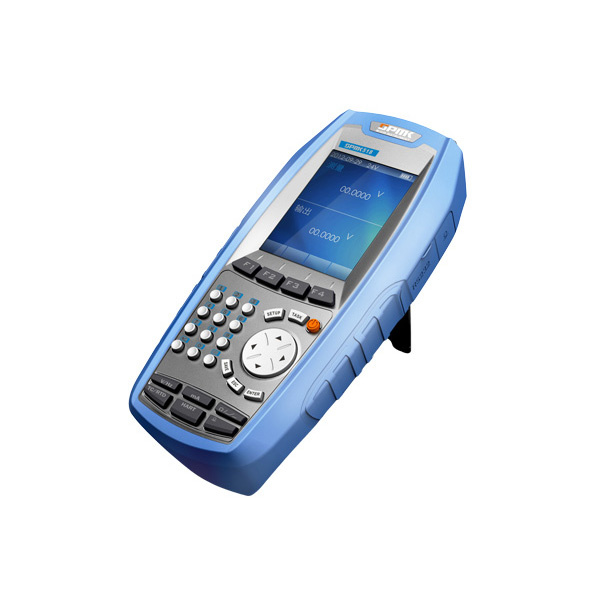

A highly integrated multifunction calibrator featuring several patented technologies.The SPMK518 Multifunction process calibrator is an ultra-compact,and easy to use hand-held device for sourcing,simulating and measuring pressure,temperature,electrical signals.Its with 3.5 Inch TFT colour screen,Cellphone-like menu, HART communication capability and powerful task management function.SPMK518 Multifunction Process Calibrator is ideal for calibrating, maintaining, and troubleshooting process instrumentation.
Features:
Sourcing and measures mV, mA, ohms, frequency, pulses and switch,also can do temperture-test  with thermocouples and RTDs independently.
Simulates and measures 13 thermocouples (K,E,J,T,N,R,S,B,C,D,G,L,U)and 11 RTDs(Pt1000,Pt500,Pt100,Pt10,Cu10,Cu50,Cu100,Ni120,Ni100),with automated cold junction compensation.
24V loop power supply with independent measuring and sourcing function.
Documenting storage and qutomated procedure capability.
Connect with SPMK intellegent presure modules
HART communication capability
Easy to operate
With RS232 interface
Technical specifications:
Operating Environmental:
Temperature : (-10-50°C)
Relative humidity: ≤90%R.H
Atmospheric pressure :0.86~1.06 bar ( 86~106kpa)
Storage Environmental:
Temperature : (-20-60°C)
Storage humidity: ≤90%R.H
Power Supply:
Rechargeable battery inside or 12V AC adapter. When connect with AC adapter,battary powered loop will be turned off and start battery charging. Battery power is recommend.
Dimensions:208mmX101mmX55mm
Weight:700g.
Electricity Signal Measurement Accuracy:


Signals	Measure Range	Accuracy	Resolution
Current	(-30.0000-30.0000)mA	±(0.01%RD+0.005%F.S)	0.1uA
Voltage	(-30.0000-30.0000)V	±(0.01%RD+0.005%F.S)	0.1mV
mV	(-75.0000-75.0000)mV	±(0.01%RD+0.005%F.S)	0.1uV
R-3W	(0~400.000)Ω (0~4000.000)Ω	±(0.02%RD+0.005%F.S)	1mΩ
R-4W	(0~400.000)Ω (0~4000.000)Ω	±(0.01%RD+0.005%F.S)	1mΩ
Frequency	(1~50)KHz	±(0.005%RD+0.002%F.S)	0.1Hz
Pulse	0~999999	±1pcs	1
Limit Switch	If the switch has detective voltage, its range is +3V to +24V




Electricity Signal Source Accuracy:


Signal	Measure Range	Accuracy	Resolution
Current	(0-22.0000)mA	±(0.02%RD+0.005%F.S)	0.1uA
Voltage	(0.0000-12.0000)V	±(0.02%RD+0.005%F.S)	0.1mV
mV	(-10-150.000)mV	±(0.02%RD+0.005%F.S)	1uV
Resistance	(0~400.00)Ω (0~4000.00)Ω	±(0.02%RD+0.005%F.S) ±(0.03%RD+0.01%F.S)	10mΩ
Frequency	(0~50000.0)Hz	±(0.005%RD+0.002%F.S)	0.1Hz
Pulse	0~999999	±1pcs	1
DC24V	24.0±0.5V	±0.5V	N/A
