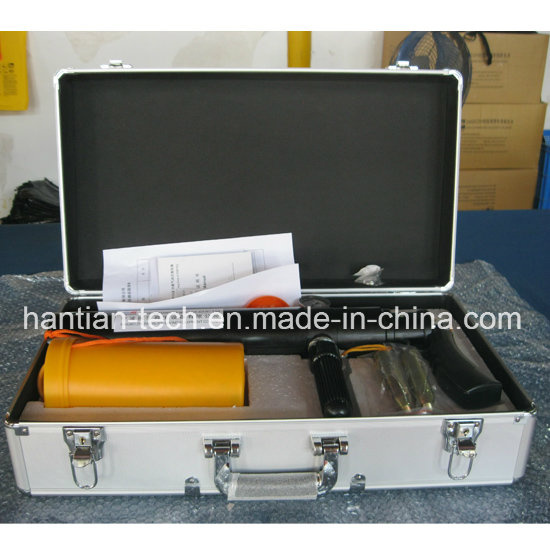

Multifunctiona Pneumatic Line Thrower Device for Launching Life Line (ZHPTQ)

Product Specifications

Prod Model:	ZHPTQ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pneumatic Line Thrower Weight:	Throwing Units<3.5kg, Life Buoy<0.6kg
Inflation Time:	<5s
Buoyancy:	Life Buoy>78n
CO2 Weight:	Life Buoy 17g
Total Length Of Line:	120m
Throwing Distance:	80-100m
Ambient Temperature For Use:	-30--+65 Degree
OEM:	Yes
MOQ:	1 Set
Certification:	CCS
Type:	Marine Life-Throwing Apparatus
Material:	Steel

Product Description

pneumatic line thrower
Multifunction pneumatic of dumped device which formed by the transmitter, micro-gas cylinders and inflatable life buoy, inflatable life ring formed by the shell, TPU air chamber, automatic inflation devices and co2 gas storage bottle. Before use,  in the launcher barrel of dumped into the life buoy, the life buoy composed of pieces from the air chamber are connected together and wrapped in the enclosed, left the water hole in the one end of shell, meanwhile the other and connected rope, else with the 120 meters throwing, it can be connected very quickly with the life buoy, prepared the above mentioned work, the knob on the dumped device turn to the insured's insurance status, and then dumped with CO2 storage cylinders to filled compressed gas inside, so dumped in the outgoing state transmitter.
When rescued from the river need of assistance, the dumped transmitter at the front of goal, turning the handle to blow needle cylinder wear, while gas will be released to the indoor of air dumped device. Then pull the trigger, the dumped can casted the life buoy launcher to the target side directly, when immersing into water, inflatable device will automatically inflated within 5s, so that the gas cylinder filed with air chamber, because the gas pressure, the chamber components and shell separation meanwhile automatically inflated shaping. People can be saved catching the inflated life buoy which keeps the drowning floating above the water, play a lifesaving role finally.

Main technical parameters of line throwing and buoy


weight	throwing units<3.5kg, life buoy<0.6kg
inflation time	<5s
buoyancy	life buoy>78N
buoyancy loss after 24h	<5%
CO2 weight	life buoy 17g
Total length of line	120m
Ambient temperature for use	-30--+65 degree
Throwing distance	80-100m


Terms of use

choose the right lifesaving equipment according to the environment
cannot be placed in the sunlight long time
avoid contact with oil, acid and other chemicals
buoy should store at the temperature 0-35, relative humidity less than 85% of the room and not compact
the validity of life buoy is three years, taking inspection to cylinders per year.
After use, check the airtight of cylinder by professional personal replacement of the cylinders and auto of the cinders and automatic devices.
Usage method of dumped device and rope

pull back the reset spanner until you heard the pop of spanner. Check and make sure
turn right of toggle as the picture, and force the pin pierce the cylinders and release of gases in to the chamber
got the throwing line, take the link out of pressure wire and contact with the connection string of the life buoy
put the special bushing at the front of life buoy which assembled already ad stuff into the bore according to the picture, and install in the right place.
Turn the insurance button into launching condition, clench the handle and pull the trigger by another hand. The life buoy would be inflated within 5s after falling into water.
Pull person whos was saved to a safety place after catching the lifebuoy.
