Product Specifications
| Prod Model: |
FC-MFR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Anti-Theft Alarm |
| Application: |
Indoor |
| Signal Transmission: |
Wireless Alarm |
| Working Mode: |
Active |
| Sensor Type: |
Infrared Alarm System |
| Working Principle: |
Electro-Acoustic Style |
| Usage: |
Smoke |
Product Description
Application:
Used for living room etc.
Product Specification:

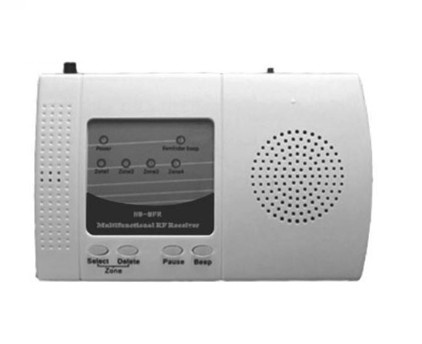

1. New generation - FC-MFR receiver with minimum power consumption only 0.3 Watt. Used with our bran-new Solar-Powered Wireless Infrared series Detector make your home safer and the earth greener.
2. The FC-MFR use power supply from a standard wall outlet and can be placed on a table or mounted on the wall.
3. When receiver gets a signal from the Detector one of 4 different tones(beep, wind-bell, plink, clarion) will sound for about 8 seconds. There is also a volume control (figure1-4) so you can set the sound to the desired level. The receiver is also equipped with 4 form "c" relays(one for each zone) and one 14 VDC output terminal that can activate when a signal is received (figure1-3).
4. The receiver can be user programmed so the 14VDC terminal and relays will activate for 1 second, 10 seconds, 60 seconds or 5 minutes. The tones will sound for several seconds.
Note 1: For maximum range between the Detector and receiver, the receiver should be mounted horizontally on a wall and as high off the floor as possible.
Although the maximum range is about 300-800 meters(depend on detector model), things such as hills, trees, metal siding and stucco can all reduce the range.
Detailed Parameter:
Frequency: 434.6MHz
Operating voltage: 15VDC
Operating current: Standby 20mA Alarming 180mA
14volt DC output current: 400ma maximum
Relay rating: 24VDC or 120VAC at 2A
