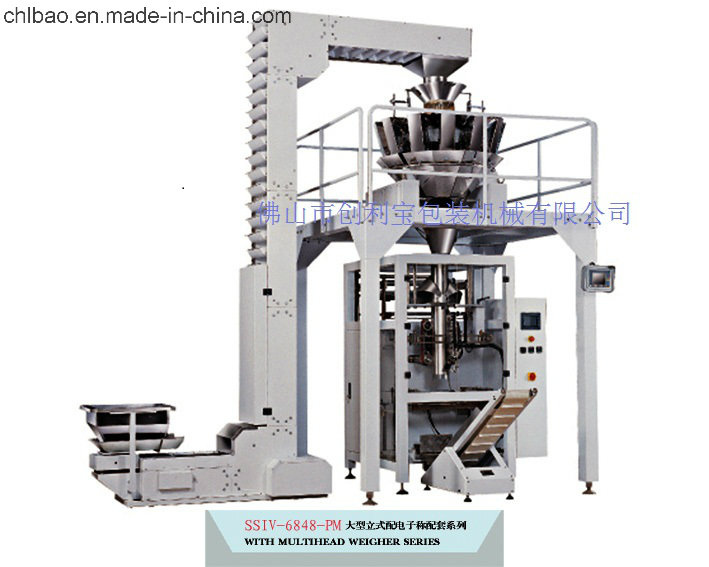

Multihead Combined Weighing Automatic Vertical Packaging Machine (CB-6848)

Product Specifications

Prod Model:	CB-6848
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Vertical Packing Machine
Technology:	Servo Packing Machine
Food Contact Surface:	Made of 304 Stainless Steel
Outer Screw:	Full Stainless Steel
Frame:	Stainless Steel
Measure Volume Maximum:	6000ml
Packing Bag's Type:	Back Sealing
Application:	Packing Granule
Delivery Terms:	Within 30 Days After Receiving Deposit
Certifications:	CE/BV/SGS

Product Description

Automatic Weighing Filling Sealing Vertical Packing Machine
1.all automatic
2.CE approved
3.high speed
Scope of application:
Suit for the quantitative weighingof Popcorn, dry pasta, Meatball, Macaroni, hamburgers, oats, washing powder, puffed food, French Fries, biscuit, rice crust, jelly, candy, pistachio nut, apple flake, dumpling, rice dumpling, chocolate, hardware and medicine such particle, platy, strip and irregular shape.

Functional Description:
1.PLC control with stable,reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting , finished in one operation.
2.Separate circuit boxes for pneumatic control and power control. Noise is low,and the circuit is more stable.
3.Film-pulling with vacuum double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.
4.Double servo control, high precision orientation, size more nicety.
5.External film releasing mechanism: simpler and easier installation of packing film.
6.Adjustment of bag deviation just needed to be control the touch screen.Operation is very simple .
7.Close down type mechanism, defending powder into inside of machine.

Technical Parameters:

Model	CBSS-6848
Bag size	(10-480) × (180-320)mm ( L × W )
Max.width of roll film	680mm
Packing speed	5-50bag/min
Measuring range	6000ml(Max)
Air consumption	0.65Mpa
Gas consumption	0.4m3/min
Power voltage	220VAC/50HZ
Power	5KW
Dimension	(L)1780mm×(W)1350mm×(H)1950mm
Net weight of machine	900kg

Technical Parameters:

Name	10-head  New-version
Model	BO-2/10-2.5
Hopper size	2.5L
Weighing range	10-1000g
Weighing accuracy	±0.1-1.5g
Weighing speed	Max.80bpm
Structure	Carbon steel /Stainless steel
Controller	10.4" Touch screen


Technical characteristics:
1.High precision data-type weighing sensor realizes precision weighing.
2.Microcomputer control system with double vibration feeding and imported instrument, advanced technology and simple operation.
3.Stainless steel sealed machine body; corrosion resistance and dust resistance.
4.The measuring hopper can be disassembled rapidly; and it's convenient in cleaning and maintenance.
5.It can make different combination to enlarge according to customer's requirements.
6.With strong compatibility, it's easy to supported with other packing device.
Customer service:
1) Free consultation service before, during, and after sales;
2) Free project planning and design services;
3) Free debugging of equipment until everything is functional;
4) Free management of equipments' long distance shipping;
5) Free training of equipment maintenance and operating personally;
6) Free new production techniques and formulas;
7) Provide 1 year complete warrantee and lifetime maintenance service.
