Product Specifications
| Prod Model: |
Fl99981 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Board Thickness: |
1.6mm Rigid and 0.1mm Flex |
| Copper Thickness: |
1oz |
| Solder Mask: |
Green and Yellow |
| Silk Screen: |
White |
| Material: |
Fr4 + Polymide |
| PCB Type: |
Rigid-Flexible PCB |
| Test: |
100% Test |
| Small Order: |
Accepted |
| Lead Time: |
5-10 Days |
| Service: |
High Quality |
| Dielectric: |
FR-4 |
Product Description
Product Description

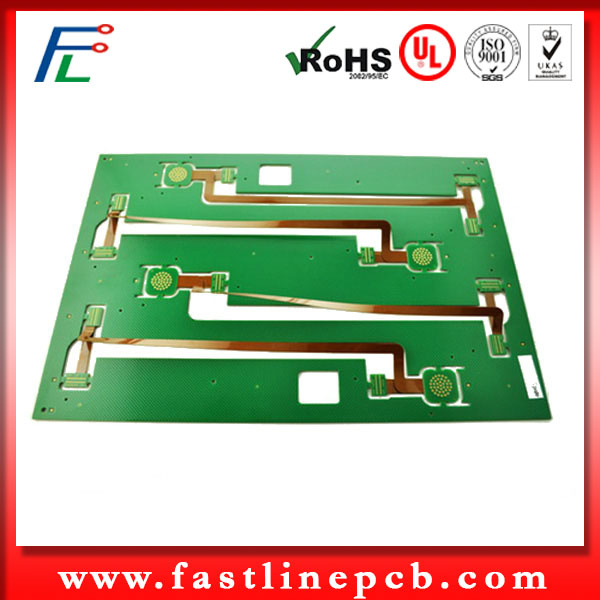

Fastline High Quality 8 layers rigid-flexible PCB :
Rigid flexible PCB combine the advantage of rigid PCB and flexible PCB. This combination of technologies brings the user a variety of advantages especially in terms of signal transmission, overall size, assembly and stability. Fastline produces this technology in three of its plants, allowing it to offer a wide range of products and expertise
In rigid-flexible printed circuit boards, Fastline offers:
Printed circuit boards with rigid areas, and flexible areas with reduced numbers of layers
Combination of polyimide and FR4, or FR4 and thin laminate
Rigid-flexible printed circuit boards, which connect rigid boards without the need for cables or connectors, resulting in better signal transmission
With SMD population and underfill
All commonly used surfaces available
Can we know your factory manufacture capability?
Yes,please check below picture:
Materials |
Polyimide / FR4 |
Thinnest Core |
50um without Adhesive |
Copper Thickness |
9um / 12um / 18um / 35um |
Copper Plating Holes |
20um (25um) |
Min. Line / Spacing |
125um / 125um |
Soldermask Registration |
+/- 100um (Photoimageable) |
Min. Soldermask Dam |
100um |
Soldermask Color |
Amber (green) |
Cover Layer Polyimide |
Laser cutting / punching / drilled |
Production Panel |
609.6 mm x 457.2 mm
250 mm x (250 - 410 mm) |
Min. Annular Ring |
150um |
Smallest Drill |
0.28 mm |
Smallest Routing Bit |
0.8 mm |
Surfaces |
OSP / Immersion Tin
Immersion Ni/Au
Plated Ni/Au |
ID Print |
White |
Adhesive Tape |
Yes |
SMT Service |
Yes |
Stiffner Material |
FR4 / Steel / Aluminium
|
Packaging & Shipping
Inner packing : Vacuum packing,Plastic bag
Outer packing : Standard carton packing
Shipping type : UPS , DHL ,FedEx , EMS, China Post Air Mail etc. You can choose the shipping cost as you want .
FAQ
Q1: What's your minimum order quantity?
A1: No MOQ , 1 pcs is accepted .
Q2: what file we should offer?
A2: PCB:Gerber file is better,( Protel ,power pcb,PADs file), PCBA : Gerber file and BOM list.
Q3:No PCB file/Gerber file, only have the PCB sample,can you produce it for me?
A3: Yes, we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB layout and work out the PCB files, then produce for you.
Q4: What payment terms do you have?
A4: For small orders, we usually prefer Paypal and Western Union; For bigger order,pls pay by TT.
Q5: How about the shipping method?
A5:We have stable cooperationship with DHL, Fedex, EMS, UPS, TNT and other air flight way or sea freight company.
How to Contact Us?
Would like to know more about the product? Send us inquiry, click "Send" now!
Fastline is a Leading PCB manufacturer in China. It was found in 2003, serving customers in over 40 countries from various electronic industries, Over 70% of products are exported to America, Europe and other Asia Pacific countries.
Fastline could meet all your PCB manufacturing needs, including High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument, security electronics, aerospace and so on.
And provides "PCB One-stop PCB solution" to meet customers' diverse demands.
Our factories with a facility area of more than 40, 000 square meters with 1000 professional staff, And we have got the approval of ISO9001 certificates. ULCertification and all Products Meet RoHS compliance.
Fastline Circuits is commited to provide superior quality products and services that consistently meet and exceed our customers requirements on time, every time!
