Product Specifications
| Prod Model: |
SADP-A-M-S-F-SC-FAPC-SC-FAPC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Sc/Upc |
| Fiber Mode: |
Multi Mode |
| Configuration: |
Adaptor |
| Core: |
Simplex |
| Transmission Medium: |
Multimode |
| Structure: |
SC |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
PC(',UPC) |
Product Description
Description

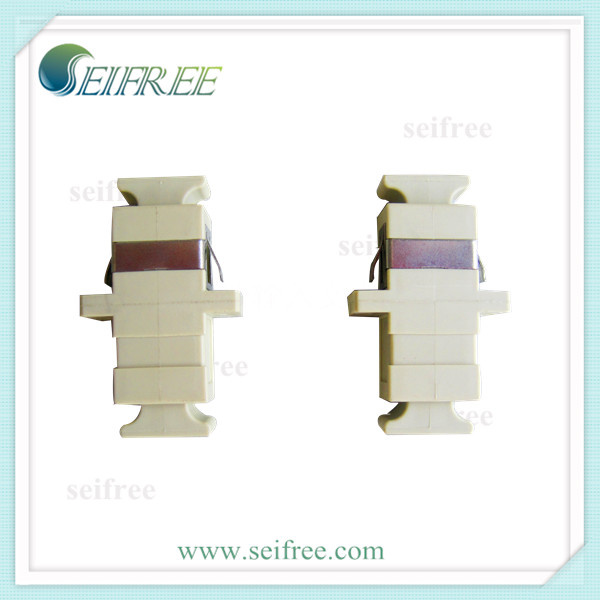

Optical Fiber Adaptors (Converters, Plug) are used to connect same or different type optical fiber connectors. The devices are designed and manufactured to meet Telcordia GR-910-CORE requirements and RoHS compliant.
Applications Features
Optical Network Wiring Low Excess Loss
Test Equipment
Ordering Information
| Config. | Fiber mode | Core | Type | Housing of 1st End | Ferrule Type | Housing of 2nd End | Ferrule Type |
| A=Adaptor | S=Single-mode | S=Simplex | S=Standard | FC | MPC=
Male PC | FC | MPC=
Male PC |
| C=Converter | M=Multi-mode | D=Duplex | F=Flange | SC | SC |
| P=Plug | / | Q=Quad | 0=Oval |
| FAPC=
Female APC |
| FAPC=
Female APC |
| / |
|
| P=Prismatic | LC | LC |
Specification
| Parameter | Unit | Value |
| Connector | / | FC ST SC LC |
| Sleeve | / | Zirconia |
| Insertion Loss | dB | ≤0.20 (Plug≤0.30) |
| Repeatability | Time | >1000 |
Wuhan Seifree Technology Co., Ltd is located at the Optical Valley, East Lake National High-tech Development Zone of Wuhan. It specializes in R&D, manufacturing, sales of Optical Passive Components. With the great technologies in optical research and production, Seifree gathers a number of optical talents on fiber communication, which possess the rich experience of R&D and a strong capability of technology innovation.
The product includes thin-film filter (DWDM, CWDM, Triple-play WDM), Fused Bi-Conical Taper (Coupler, WDM) and Waveguide Splitter (PLC Splitter), Micro-optics (Circulator, Isolator) Fiber optical Interconnect (Optical Jumper, Adaptor) and other components and modules of Active (CWDM SFP) and Passive.
We create a good working atmosphere, solidarity and cooperation, and build the corporate culture --Service, Excellence, Innovation, Fidelity, Reciprocity, Economical, and Development. All products are designed, manufactured and delivered to meet the requirements of Telcordia and ISO9001.
We welcome you to consider Seifree to provide the high-quality product and considerate service for meet your demands.
