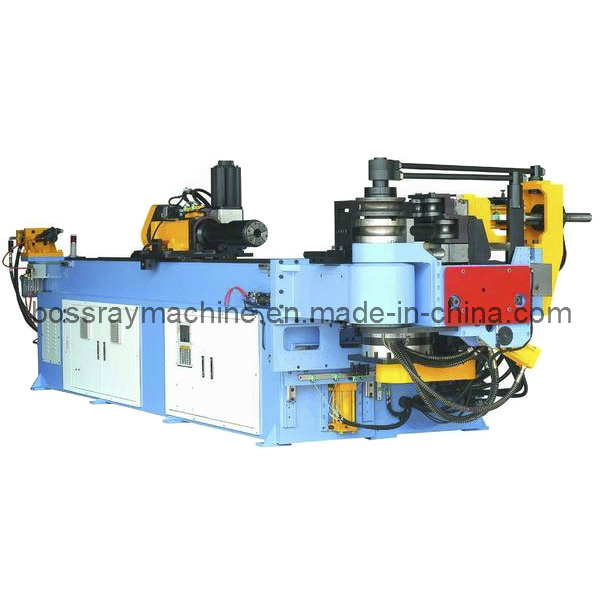

Product Specifications
| Prod Model: |
SB-50CNC-5A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Co-Push Functions: |
Yes |
| Draw Bending: |
Yes |
| Shipping Port: |
Shanghai or Zhangjiagang |
| Tooling Stack Plus: |
Optional |
| Type For Fold-bending Machine: |
CNC Fold-bend Machine |
| Application: |
Machinery & Hardware |
Product Description
Standard features --
Bend-arm (C-axis) by servo motor
Clamp die by hydraulic
Pressure die by hydraulic
Carriage (Y-axis) by servo motor
Collet (B-axis): Rotation by servo motor, grip by hydraulic
Anticipated mandrel retraction unit
Standing pedestal, serves emergency stop and remote control
PLC controller with touch-screen display, capable of parameter control, repeat feeding and memory storage up to 1000 parts program
Air-cooling system
CE mark
Easy Operation
Bending Capacity: 50*2mm
PLC, servomotor: Japan Mitsubishi
High Accuracy
Standard Configuration
1. Hydraulic Motor: Taiwan Guangyuan
2. Hydraulic Pump: Taiwan HYDROMAX or Japan Yuken ABB
3. Hydraulic Valve: Japan Yuken
4. Cylinder: Shanghai Jingsheng
5. PLC: Japan Mitsubishi
6. Servo Motor: Japan Mitsubishi
7. Gear Reducer: Taiwan PHT
8. Angle controller: Japan Nemicon
9. Guide Linear: Taiwan PMI
10. Other Electric Parts: SCHNEIDER, Omron, Taiwan SHILIN
|
Item |
Name |
Unit |
Data |
Remark |
|
1 |
Max bending capacity |
mm |
Φ50×2t |
|
|
2 |
Max bending radius |
mm |
250 |
Can according to customer's requirement |
|
3. |
Min bending radius |
mm |
Depend on the pipe diameter |
|
|
4 |
Max feeding length |
mm |
3000 |
Can according to customer's requirement |
|
5 |
Max bending degree |
Degree |
190 |
|
|
6 |
Control Panel |
|
PLC + touch screen |
|
|
7 |
Bending unit |
piece |
16 |
|
|
8 |
Working speed |
bending speed |
Deg/sec |
85 |
|
|
Rotary speed |
Deg/sec |
200 |
Rotary fast will be dangerous |
|
Feeding speed |
mm/sec |
1000 |
|
|
9 |
Accuracy |
feeding |
mm |
±0.1 |
|
|
rotary |
Degree |
±0.1 |
|
|
bending |
Degree |
±0.1 |
|
|
10 |
Rotary servo motor power |
W |
750 |
JapanMitsubishi |
|
11 |
Feeding servo motor power |
Kw |
1 |
JapanMitsubishi |
|
12 |
Bending servo motor power |
Kw |
5 |
JapanMitsubishi |
|
13 |
Oil motor power |
Kw |
5.5 |
|
|
14 |
Max storage units |
group |
1000 |
Can enlarge according to requirement |
|
15 |
Max pressure |
MPa |
12 |
Adjustable |
|
16 |
Hydraulic control system |
|
Magnetic exchange valve |
JapanYuken |
|
17 |
Oil tank |
L |
250 |
|
|
18 |
Oil cooler |
L/Min |
150 |
|
|
19 |
Machine weight |
Kg |
3500 |
|
|
20 |
Machine size |
mm |
4900×1300×1700 |
|
|
21 |
Warranty time |
month |
12 |
|
