Product Specifications
| Prod Model: |
ABR-400B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Abr-403b |
| Max. Voltage: |
240V |
| Max Wattage: |
2000W |
| Control Way: |
Auto or Manual |
| Mechanical Life: |
3 Years |
| Size: |
86*86mm |
| Type: |
Time Switch |
| Usage: |
Universal Counter |
| Function: |
Subtract Counter |
| Theory: |
Digital |
| Carry Mode: |
Synchronous Counter |
| Carry Base: |
Decimal Counter |
| Mechanism: |
Electronic |
Product Description
Product Description

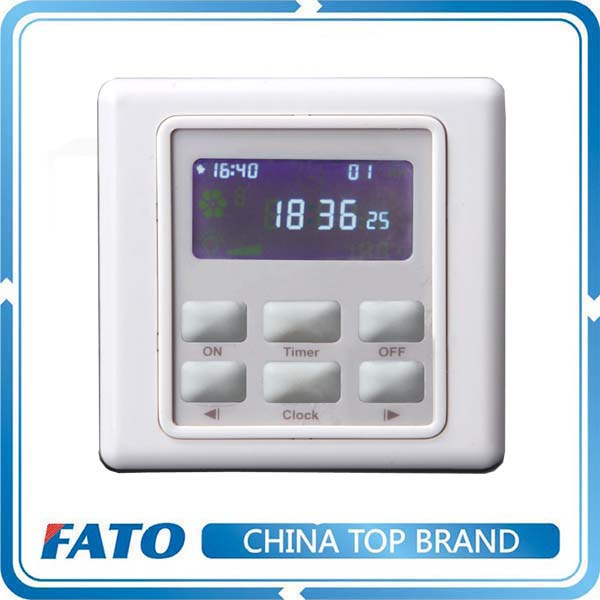

Multiple Settings Timer Switch with LCD Display
ABR-400B is a timer switch with LCD display and daily multiple period timer settings. It can be used to automatically turn on or turn off large electrical devices. For example, it can be used for school and barracks' bells, household curtain motors or street lights. Or it can be used in hospital, kindergarten or restaurant's ultraviolet disinfection rooms, farm's brooder houses or fish tank.
Features:
There are up to 16 ON/OFF settings for each day within one week. The ON time can be set at any time and the OFF can be set at any time after the ON time.
Operates on a 2 wire system which makes the wiring easier and fits in a standard wall box.
With accurate timer settings to the second. On and Off time can set at any time during 24 hours.
Manual control and automatic control are available. After the timer is set, the switch will work automatically. When the system is working, the user can manually turn on or turn off the load.
LCD display shows the preset time when setting the timer and shows current time and the latest on/off time after the setting.
Uses flame resistance ABS-V0 material for safety.
Classical 86 series design and easy installation
Specifications:
Voltage |
220~240V(50Hz/60Hz) |
Operating temperature |
0ºC~55ºC |
Loads |
2000W(Maximum) |
Relative humidity |
Non-condensing 20-90% |
Installation hole spacing |
60mm |
Matching wall box |
75*75*50mm |
Switch Dimension |
86*86*43mm |
Switch weight |
116g |
