Product Specifications
| Prod Model: |
CIL-NP-7000K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Printing: |
Add Single Color or Double Colors Printing |
| Embossing Device: |
Steel to Woolen |
| Embossing Pattern: |
Edge of Full |
| Embossing Material: |
Steel to Rubber or Paper Roller |
| Speed Of Production: |
800-1200sheets/Min |
| Color In Machine: |
Blue |
| Width Of Jumbo Roll: |
600-1000mm |
| Dia. Of Core: |
76.2mm |
| Dia. Of Raw Material: |
1000-1200mm |
| Function Of Machine: |
Rectify Device |
| Paper Thickness: |
Thin Paper |
| Certification: |
CE |
| Condition: |
New |
| Type: |
Napkin Paper Machine |
| Sheet Former Type: |
Square Paper |
Product Description

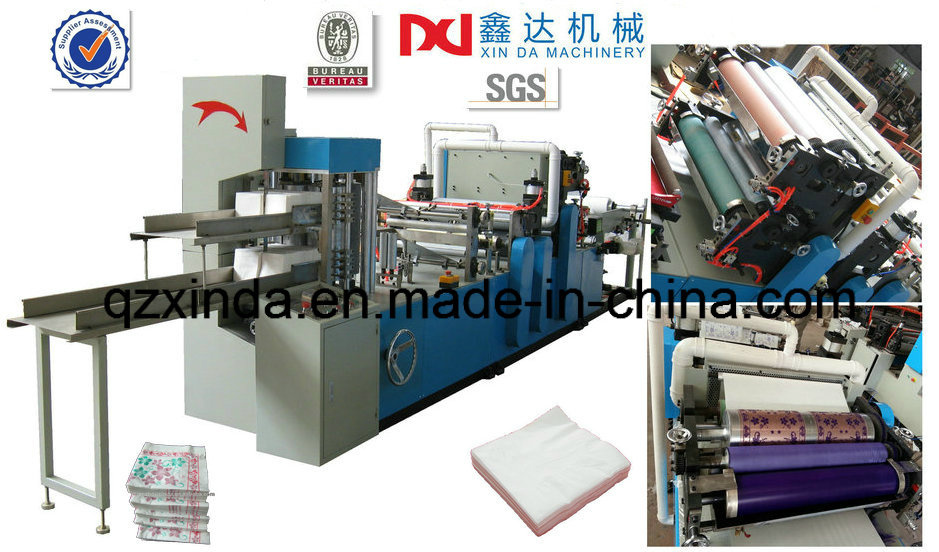

Multipurpose paper napkin tissues converting machinery
Description of production
CIL-NP-7000K napkin paper machine series take round type jumbo roll as raw matieral, process to various kind of fixed specification napkin paper. The machine start from raw material feeding, embossment, folding and cutting. The come out product is two layers, four lines. Fast speed and high production. The napkin paper product by this machine is hygiene and clear. If you need to produce various kind specification of napkin paper (300 to 500), you need to order the machine. For example, if you order CIL-NP-7000A-300 napkin paper machine, the unfolding size of napkin paper is 300mmx300mm, while if you order CIL-NP-7000A-330, then the unfolding size of napkin paper is 330mmx330mm. Also, we can make the machine according to customers'
Requirements.
Specification of raw material
1) Diameter 1200mm
2) Width 600-1000mm
3) Thickness: 13-20G/M2(2 layers )23-25G/M2(1 layer)
4) Inner diameter of core: 76mm
. Specification of finished product
1) Unfolding size: 300-500X300-500± 2mm(LxW)
2) Folding size: 1500-250X150-250± 2mm(LxW)1/4 folding
. Equipment disposition
1)Pneumatic lifter
2) One paper return stand
3)Flat belt (controlled by cylinder)
4)Hand-wheel adjust the tension of unreel.
5)Vertical slitting unit
6) Steel roller against wool roller
7) 3 sets of folding plate
8) Band saw slitting
9)Knife-sharping unit
10) Individual Electrical Cabinet
11) Main motor 5.5kw Frequency-converting (380V50Hz) Cutting paper power 2.2KW
12) Emergency
13) Stop machine automatically when paper broken
14) Stop machine automatically when fault of unreeling.
15) Automatic Accounting (1-999)
16) Finished product come out with finger.
17) Production speed: 120-160M/min(about 1200-1500 sheets)
18) Required power: 0.5Mra(Prepared by buyer)
|
1 |
CIL-NP-7000K250-500-2 High-production napkin paper machine |
|
|
Paper Size:330X330mm
folding size 165*165mm width
Jumbo Roll Max Width:660MM
Embossment:steel to rubber
With 2 color printing
|
|
2 |
CIL-NP-115 Semi-automatic napkin paper bagging and sealing machine (with conveyer belt) |
|
|
Production Speed:
8~20 boxes/min |
