| Price: | US $ 5/Square Meter |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1000/Square Meter |
| Pay Type: | L/C,T/T,D/P,Western Union |
1.Product list

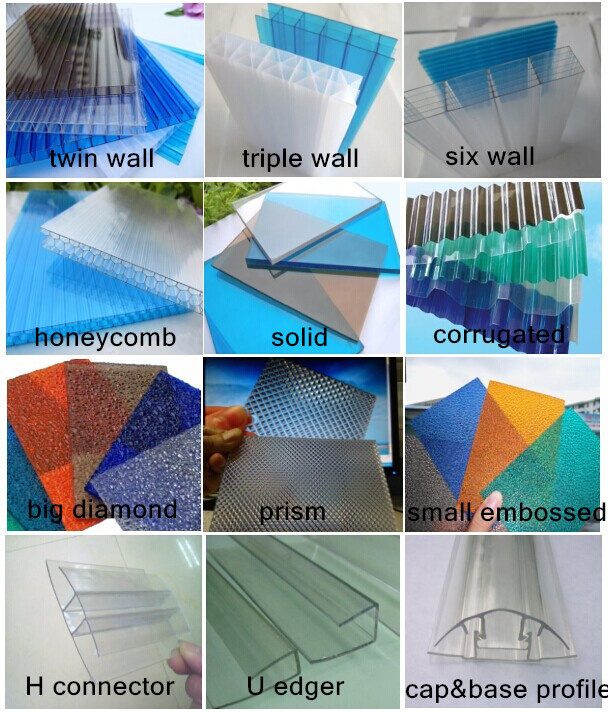

item | width (mm) | thickness (mm) | weight (kg/m2) | Min Curving Radius (mm) | Min Span Accordingly(mm) | Color |
Polycarbonate twin wall hollow sheet | 1220 2100 | 4 | 1.0 | 700 | 1500 | Clear
Opal
Bronze
bule
lake bule
green
yellow
red
white
grey |
5 | 1.1 | 875 | 1800 | |||
6 | 1.3 | 1050 | 2000 | |||
8 | 1.5 | 1400 | 2700 | |||
10 | 1.7 | 1750 | 3300 | |||

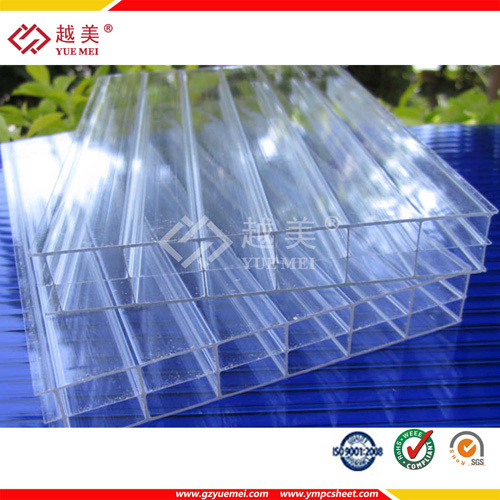

#,X type polycarbonate triple wall hollow sheet | 1220 2100 | 10 | 2.0 | 1850 | 3600 | |
12 | 2.2 | 2220 | 4300 | |||
14 | 2.4 | 2590 | 5000 | |||
16 | 2.7 | 2960 | 5800 | |||
18 | 3.0 | 3330 | 6400 | |||
20 | 3.3 | 3700 | 7000 | |||
Polycarbonate honeycomb sheet | 2100 | 6 | 1.7 | 1050 | 2100 | |
8 | 1.9 | 1400 | 2800 | |||
10 | 2.1 | 1750 | 3500 | |||
12 | 2.3 | 2100 | 4200 | |||
Polycarbonate six-wall hollow sheet | 2100 | 16 | 3.0 | 2800 | 5600 | |
20 | 3.2 | 3500 | 7000 | |||
25 | 3.6 | 4375 | 8750 | |||
Polycarbonate solid sheet | 1220 1560 1820 2100 | 1.5 | 1.8 | 270 | 540 | |
2.0 | 2.4 | 360 | 720 | |||
2.4 | 2.88 | 430 | 860 | |||
3.0 | 3.6 | 540 | 1080 | |||
3.8 | 4.56 | 680 | 1360 | |||
4.0 | 4.8 | 720 | 1440 | |||
5.0 | 6.0 | 900 | 1800 | |||
6.0 | 7.2 | 1080 | 2160 | |||
8.0 | 9.6 | 1450 | 2900 |
Note: Special colors and specifications can be customized.
2.Technical data
Characteristics | Unit | Data of YUEMEI PC Sheet |
Light transmission | % | 40 ~ 82 |
Impact strength | J/m | 2.1 ~ 2.3 |
Coefficient of thermal expansion | mm/m .ºC | 0.065 |
Heat conductivity | W/m2 .ºC | 3.0 ~ 3.9 |
Service temperature | ºC | -40ºC~+120ºC |
Tensile strength | n/mm2 | ≥60 |
Bending strength | n/mm2 | 100 |
Bending elastic modulus | mpa | 2400 |
Tensile stress at break | mpa | ≥65 |
Elongation at break | % | ≥100 |
Sound insulation effect | db | 20 decibel decrease for 10mm thick sheet |
3. Feature of YUEMEI polycarbonate sheet:
(1)Light transmission: up to 85%
(2)Impact resistance: 80 times that of glass, 15 times that of acrylic sheeting
(3)Temperature resistance range: -40 - +120°C
(4)Quality:100% virgin bayer material, 50 micron UV layer,10 years warranty,approved by ISO9001: 2008,delivery time 7-10 days
(5)Never yellowing

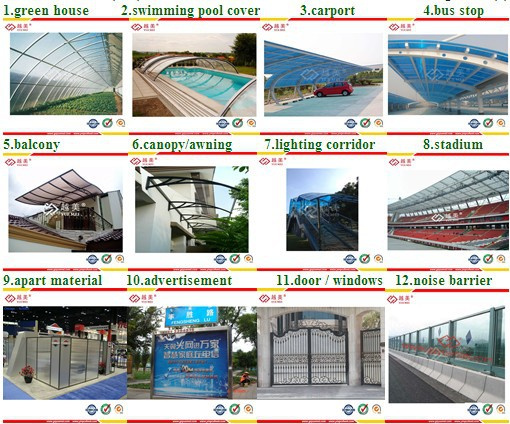

4. Applications:
1) Roofing light sheet and sunshade for office building, department store, hotel, stadium, school, amusement center, hospital, ect.
2) Skylight, lighting for corridors, balcony, passages and subway entries, walkways.
3) Do-It-Yourself (DIY), awning, canopy.
4) Advertising lamp boxes, sign board.
6) Anti-riot shield, bullet resistant material, Bank ATMs.
7) Conservatories, agricultural greenhouses, zoos, botanical gardens.
8) Industrial Roofing and Glazing
9) Swimming Pools roofing/cover/sheet
5.Other information:
- HS Code: 3920610000
- Payment term: T/T, L/C
- Delivery time: 7-10 days
- Origin: Guangzhou, China
- Minimum Order Quantity: 1 x 20 FCL
- Packaging: Both sides covered with PE film
- Sample policy : Small samples can be provided with courier charge collect
- Remarks: OEM can be provided according to your request
Our company's spirit:
Integrity, Persistent, Hard, Aggressive, Innovation
Any suggestions or problems about our polycarbonte sheet, plz don't hesitage to contact Victoria 0086 13922700490!
Our website:
http://www.ympsheet.com
| Prod Model: | YM-PC-008 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Service Temperature(C): | -40c--+120c |
| Certification: | ISO9001: 2008, SGS, RoHS |
| Quality: | Grade a |
| Maximum Width: | 2100mm for Regular Thickness |
| Standard Thickness: | 1.5 / 2 / 6 / 8 / 10 / 12 / 20 |
| Offer Colors: | Clear, Blue, Lake Blue, Bronze, Silv |
| Application: | Roofing, Building, Warehouse, Carport |
| Delivery Detail: | 7-15 Days After Receiving Deposit |
| Material: | PC |
| Color: | Clear,Blue,Green,Orange,Yellow... |
