Weifang Map Import & Export Co., Ltd. >> Muti-Function Backhoe Loader 30-25 Construction Machine

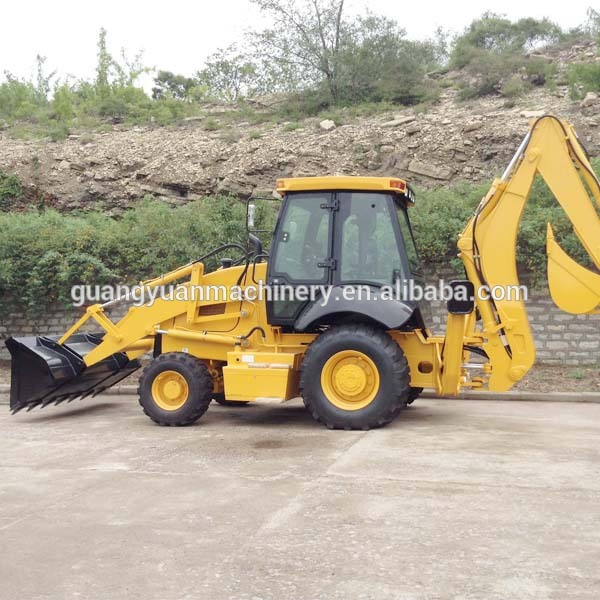

Muti-Function Backhoe Loader 30-25 Construction Machine

Name: Muti-Function Backhoe Loader 30-25 Construction Machine
Brand: China-Manufacturer-Directory.com
SKU: 693773112
Availability: InStock
Rating: 4.5 (125 reviews)

Supplier:	Weifang Map Import & Export Co., Ltd.
Price:	US $ 32000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	30-25
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engine:	R4105g
Operating Weight:	7600kg
Rated Loader Bucket Capacity:	1.10m3
Type:	Backhoe Loader
Size:	Small-Scale
Condition:	New
Certification:	CE

Product Description

Backhoe loader: WZY30-25
Rated Loader bucket capacity: 1.10m3
Rated Excavator bucket capacity: 0.3-0.4 m3
Operating Weight: 7600KG

Dimensions
Lengthxwidthxheight: 5900X2340X3750MM
Wheel base: 2250mm
Height to top of Rops: 2790mm
EngineModel: R4105G
TYPE: Diesel Engine
Rated power: 55kw(4 Cylinder engine, water cooler, 105X125MM)/2200rpm
Total Displacement: 4.33L
Min Fuel Consuption: 239g/Km. H
Max. Net Torque: 600N. M

Transmission
Model: CBGJ2040
Type: 4 speed, power shift, electrical controlled
Torque Converter Type: Single
Max. Travel Speed: 25km/h

Engine Specifications
Engine Model	YTO4105 G81L
Engine power	119HP(88KW)
Rated Speed	2200r/min
Working Range (mm)
Operating weight	7800kg
Boom length	3100
Arm length	2100
Max digging radius	5800
Max digging depth	3400
Max dumping height	6080
Max discharge height	4390
Backhoe bucket capacity	0.2-0.3m3
Loading height	3300
Dump clearance	2500
Loading bucket capacity	0.5-06.m3
Rotation angle	180
Hydraulic System
Main pump type	Variable piston pump
Main pump max flow	63L/min
Pilot pump type	Gear pump
Pilot pump max flow	18L/min
The main overflow valve(boom/arm/bucket)	240kgf/cm
Dimensions(mm)
Cabinet width	1650
Cabinet height	2900
Ground clearance	255
Wheel base	2800
Tread	1930/1650
Whole length	4370
Over dimension	872021702950

Weifang Map Power Co., Ltd., was founded in 2006. We are a professional manufacture and chain supplier specializing in construction machinery and agricultural equipments. 70% of our products are made for export.

We keep diverse products according to customer and market demand. We produce and supply site dumpers, wheel loaders, tractors, implements, wheel excavators, crawler excavators, backhoe loaders, forklifts, road rollers, light towers, concrete mixers, plate compactor, impact tampers, road cutters, concrete vibrators, and so on.

With experiences in professional manufacturing, Map Power has successfully sold equipments to around 30 countries and areas around the world including Australia, New Zealand, Canada, England, Poland, Dutch, Italy, Russia, India, Main countries of Africa...

Our main products list.

Agricultural machinery:

1. Tractor from 18HO-130HP

2. Farm implemants covered dics mower, lawn mower, tractor mouting front end loader, backhoe loader, sweeping machine, snow blower, dics plow, dics harrow and etc.

Construction machine:

Wheel Loader, Truct Crane, Wheel Excavator, Crawler excavator, Backhoe Loader, Forklift, Road Roller, Concrete Mixer, Plate Compactor, Impact Tampers, Road Cutters, Concrete Vibrators, and so on.

Customer's requirement is our first priority. We can provide reliable, fast and professional service for you through telephone, on-site or network channels. We are ready to provide all customers with 10 years spare parts supply. Furthermore, if your products parts are damaged, please also contact us to see if it could be restored, and if so, you can avoid the trouble and cost of purchasing new spare parts. In our spare parts department, customers can get professional technical advice, as well as the relevant information regarding all products and services

With experiences in professional manufacturing for more than 10 years. WEIFANG MAP POWER Co. Has successfully sold equipments to around 40 countries and areas. We sincerely welcome customers and friends all over the world to visit our factory and cooperate with us in the future.
