Product Specifications
| Prod Model: |
WZ30-25 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine: |
R4105g |
| Operating Weight: |
7600kg |
| High Quality: |
Best Price |
| Type: |
Small Loader |
| Certification: |
CE |
| Walking Mode: |
Wheeled |
| Condition: |
New |
| Load And Unload Method: |
Front Discharge |
Product Description

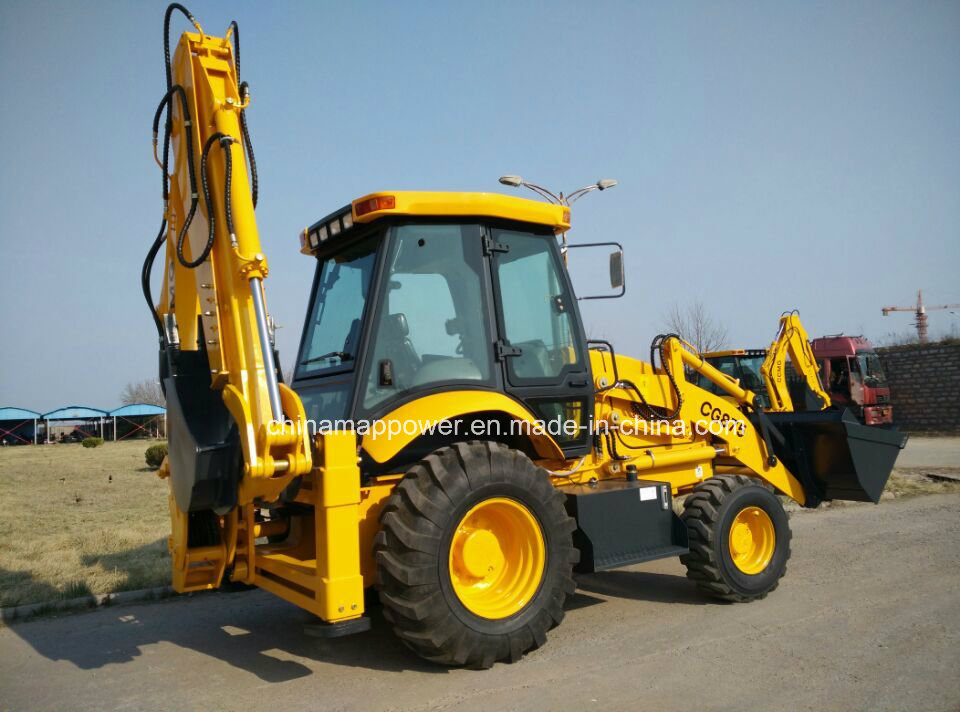

2012 new style Backhoe Loader WZY30-25
Rated Loader bucket capacity: 1.10m3
Rated Excavator bucket capacity: 0.3-0.4 m3
Operating Weight: 7600KG
Dimensions
Lengthxwidthxheight: 5900X2340X3750MM
Wheel base: 2250mm
Height to top of Rops: 2790mm
EngineModel: R4105G
TYPE: Diesel Engine
Rated power: 55kw(4 Cylinder engine
, water cooler, 105X125MM)/2200rpm
Total Displacement: 4.33L
Min Fuel Consuption: 239g/Km. H
Max. Net Torque: 600N. M
Transmission
Model: CBGJ2040
Type: 4 speed, power shift, electrical controlled
Torque Converter Type: Single
Stage, Dual Phase
Max. Travel Speed: 25km/h
Hydraulic System
System Pressure(backhoe) 25000Kpa
System Pressure(Loader) 2070Kpa
Flow Rate of Excavator system 136L/min
Flow Rate of Loading System 106L/min
Digging Force, Crowed Cylinder 36.0KN
Hydraulic Pump: Gear PumpTandem
Bucket self-leveling ability: Yes
Elec. Clutch-cut-off Switch: Yes
Raising time of full height: 4.9s
Bucket lowering time: 1.9s
Bucket dumping time: 1.1s
Brakes
Service Brake: Fully sealed wet disc
Free adjust type
Parking Brake: Electronic control
Spring applied, hydraulically released
Emergency Brake: Electric control
Spring applied, hydraulically released
Service Refilling Capacities
Engine Coolant: 16L
Engine Oil: 8.5L
Transmission: 15L
Rear Axle: 16L
Front Axle: 85L
Model of Front Axle: MS-2025(ZF-German)
Model of Rear Axle: MT-2075(ZF-German)
Front Axle: Mechanical front wheel drive, limited slip
Rear: With differential lock elec. Controlled
Front Type: 19.5-24, 8PR R4
Rear Type: 12.5/80, 10PR
Steering System
Type: Power Steering
Min Turning Radius: 5682mm
1.0 DIMENSION
|
1) Rated loader bucket capacity
|
1.1m3
|
2) Rated excavator bucket capacity
|
0.3-0.4 m3
|
3) Operating weight
|
7600KG
|
4) Dimensions (L x W x H)
|
5900X2340X3750mm
|
5) Wheel base
|
2250mm
|
6) Cab roof height
|
2790mm
|
7) Minimum ground clearance
|
310mm
|
8) Bucket indicator
|
Yes
|
2.0 ENGINE
|
1) Engine model
|
R4105G
|
2) Type
|
Diesel Engine(4-Cylinder engine, water cooled 105x125MM)
|
3) Rated power
|
55KW
|
4)Total displacement
|
4.33L
|
5) Min fuel consumption
|
239g/Km. h
|
6) Max. net torque
|
600N. m
|
7) Rated revolving speed
|
2200r/min
|
3.0 TRANSMISSION SYSTEM
|
1) Model
|
CBGJ2040
|
2)Type
|
4 speed, power shift, electrical controlled
|
3)Torque converter type
|
Single Stage or Dual Phase
|
4) Max. travel speed
|
25km/h
|
4.0 HYDRAULIC SYSTEM
|
1) System pressure(backhoe)
|
25000Kpa
|
2) System pressure(loader)
|
2070Kpa
|
3) Flow rate of excavator system
|
136L/min
|
4) Flow rate of loading system
|
106L/min
|
5) Digging force, crowed cylinder
|
36.0KN
|
6) Hydraulic pump
|
Gear Pump Tandem
|
7) Bucket self-leveling ability
|
yes
|
8) Elec. clutch-cut-off switch
|
yes
|
9) Raising time of full height
|
4.9s
|
10) Bucket lowering time
|
1.9s
|
11 ) Bucket dumping time
|
1.1s
|
5.0 BRAKES
|
1 ) Service brake
|
Fully sealed wet disc, free adjust type
|
2) Parking Brake
|
Electronic control
|
Spring applied, hydraulically released
|
3) Emergency Brake
|
Electric control
|
Spring applied, hydraulically released
|
6.0 SERVICE REFILLING CAPACITIES
|
1) Engine Coolant
|
16L
|
2) Engine Oil
|
8.5L
|
3) Transmission
|
15L
|
4) Rear Axle
|
16L
|
5) Front Axle
|
85L
|
6) Model of Front Axle
|
MS-2025(ZF-German)
|
7) Model of Rear Axle
|
MT-2075(ZF-German)
|
8) Front Axle
|
Mechanical front wheel drive, limited slip
|
9) Rear
|
with differential lock elec. Controlled
|
10) Front Type
|
19.5-24, 8PR R4
|
11) Rear Type
|
12.5/80, 10PR
|
7.0 STEERING SYSTEM
|
1) Type
|
Power Steering
|
2) Min Turning Radius
|
5682mm
|
