Mw22 Series Electromagnet Used for Lifting Double T-Steel and I-Steel

Name: Mw22 Series Electromagnet Used for Lifting Double T-Steel and I-Steel
Brand: china-manufacturer-directory.com
SKU: 705062255
Availability: InStock
Rating: 4.7 (140 reviews)

Supplier:	Yueyang Keli Electromagnet Technological Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	MW22

Product Description

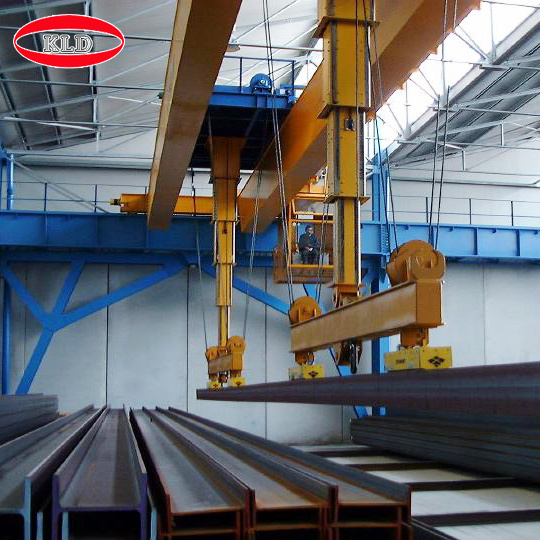

Lifting electromagnet series MW22 is for lifting double t-steel.

The products are suitable for lifting and transferring steel ingots, large blooming billet, rolled-steel section and etc. Different magnetic circuit designs are optional for different kinds of steel products.

This product series include lifting electromagnet for handling double T-steels, blooming billets, girder billets and coiled wire stock(round coil).

Technical data for normal temperature type DC-220V, TD-60%

Model		MW22-8060L	MW22-11060L	MW22-120100L	MW22-140100L	MW22-140150L
Overall dimension (mm)	A	800	1100	1200	1400	1400
	B	600	600	1000	1000	1500
	C	900	900	950	1100	1100
	D	300	300	300	900	900
	E	110	110	125	125	125
	F	180	180	200	200	200
	G	32	32	38	38	38
Mass (kg)		1000	1300	2400	2000	3000
Current (A)		34.1	27.3	45.5	63.6	81.9
Power (kw)		7.5	6	10	14	18
Lifting capacity(if the big cross seciton double T-steel in the table is not bundled, one level can be lifted)	Min. specifications	No. 10 double T-steel	No. 10 double T-steel	No. 10 double T-steel	No. 10 double T-steel	No. 10 double T-steel
	Max. specifications	No. 20a double T-steel	No. 30a double T-steel	No. 63a double T-steel	No. 50a double T-steel	No. 50a double T-steel
	Max. length	2000	2000	2000	2000	2000
	width of bundle	500	500	1000	650	650
	weight of single bundle	5000	4000/6000	15000	3000/5000	4500/6000
	mumber of bundle	4 units lift 1 bundle	4 units lift 2 bundle/2 bundle	4 units lift 1 bundle	4 units lift 4 bundle/2 bundle	4 units lift 4 bundle

Yueyang Keli Electromagnetic Science and Technology Co., Ltd. is a provincial High-tech company with the combinations of design, research and development. We are specialized in lifting electromagnets, electromagnetic separators, electromagnetic stirrers, cable reels and specially required magnetic and electronic machinery equipment. We have perfect inspecting facilities, good design teams, skillful producers and experienced administrators. Our products are mainly sold to some big-sized iron and steel enterprises, ship making mills, seaports and machinery makers, and are also exported to Southeast Asian countries.

We are located in the national tourist city - Yueyang. Yueyang Tower and Junshan Islet are famous both at home and abroad. Beijing-Guangzhou National Railway and Highway and Beijing-Zhuhai Express Highway are in Yueyang City. Yueyang also has a 125000-tonnage seaport. The communication and transportation are extremely convenient, with developed logistics.

We have been insisting on the idea of "Seeking Development with Science and Technology". Our tenet is "Trying to Survive with Fine Quality, and implementing the policy of Taking honesty as Principle, Keeping innovation, Cooperating and jointly Beijing Prosperous". In recent years, our company has been focusing on science and technology, product quality and efficiency. Our company has stepped on the orbit of rapid development and our company size has become bigger and bigger. All friends from at home and abroad are warmly welcome.
