Product Specifications
| Prod Model: |
MYS-SAM9G45 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Embedded SBC |
| Processor Type: |
ARM |
| Certification: |
RoHS |
Product Description

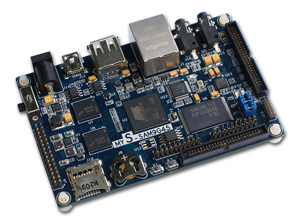

The MYS-SAM9G45 Single Board Computer is highly-integrated controller board for Atmel AT91SAM9G45 which is a 400MHz ARM926 based embedded microprocessor with DDR2 and LPDDR support, a wide range of connectivity and user interface peripherals, as well as a dual external bus interface.
Measuring 100mm by 64mm, the compact board takes full features of the Atmel SAM9G45 processor. It has 128MB DDR2 SDRAM, 256MB Nand Flash, 4MB Data Flash and 512KB EEPROM on board and exposes many peripheral interfaces including two USB Host and one OTG, Ethernet, LCD, TF, Audio, etc. The board supports running Linux 2.6.30 and Andriod 2.3.1 operating systems and is delivered with driver source code to help users create their own application. MYIR also offers detailed documents as well as some necessary cable accessories along with the goods delivery which help user to start their development quickly.
The MYS-SAM9G45 SBC board is smart in size and advanced in PCB design, it's easy to embed into your products directly which will help cut down cost and reduce time. It can be used for a wide range of applications including Industrial Control Terminal, Intelligent Instrumentation, Data Acquisition and Analysis, Medical products, Network Terminal, etc.
MYIR Tech Limited is a global provider of ARM hardware and software tools, design solutions for embedded applications. We support our customers in a wide range of services to accelerate your time to market.
MYIR is an ARM Connected Community Member and work closely with ARM and many semiconductor vendors. We sell products ranging from board level products such as development boards, single board computers and CPU modules to help with your evaluation, prototype, and system integration or creating your own applications. Our products are used widely in industrial control, medical devices, consumer electronic, telecommunication systems, Human Machine Interface (HMI) and more other embedded applications. MYIR has an experienced team and provides custom services based on many processors (especially ARM processors) to help customers make your idea a reality.
MYIR has built a global service platform to work closely with our customers and now has one headquarter in Shenzhen, two branch offices established in Beijing and Shanghai and one R&D center in Guilin in China. We also established distributor partnership with companies some countries and regions outside Chinese mainland such as USA, France, Poland, Israel, Russia, India, and Taiwan to expand MYIR's international presence. With the support of our partners, we can share MYIR's technology with more customers.
MYIR insists on the idea that "Our victory sourcing from customer's success" as well as the concept that "Make Your Idea Real, then My Idea Realizing! " We try our best to provide best service.
