Mz8 Over Current Overload Protection Type PTC Thermistor Element
| Price: |
US $ 0.008-0.01PCS |
| Trade Terms: |
FOB,EXW |
| Min Order: |
10000PCS |
| Pay Type: |
L/C,T/T,D/P,Western Union |
Product Specifications
| Prod Model: |
PTC MZ8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| PTC Thermistor: |
Supply Energy-Saving Lamps Delay Start with PTC |
| Resistance: |
Sensitive Resistor |
| Function For Resistance: |
Protective Resistor |
| Installation: |
DIP Resistor |
| Package Type: |
Throught Hole |
| Type: |
Thermal Resistor |
| Material: |
Ceramic |
| Quantity: |
PCS |
| Application: |
Energy-Saving Lamp Power Meter |
| Brand: |
Kaec |
Product Description
High quality overcurrent protection PTC thermistor
1.over 8 years experience, Professional resistor manufacturer.
2. Good overload resistor.
3. RoHS & ISO9001&ISO14000
4. OEM.Overall Dimensions:
3--5MZ3Φ3×3502K-3K;3K-5K 57MZ3Φ3×350500-1K;1-2K 711MZ3Φ3×375800-1200;1200-2000 913MZ3Φ3×375300-500;500-800 1115MZ5Φ5×375800-1200;1.2-2K 1520MZ5Φ5×375100-300;300-500;500-800 2030MZ6Φ6×375100-300;300-500;500-800 2535MZ6Φ6×575100-200;200-300;300-500 3040MZ8Φ8×375100-300;300-500;500-800 4065MZ8Φ8×575100-200;200-300;300-500 Specifications
1.High reliability
2.Withstanding voltage is 10000 over
3.Supply directly
4. UL&RoHS

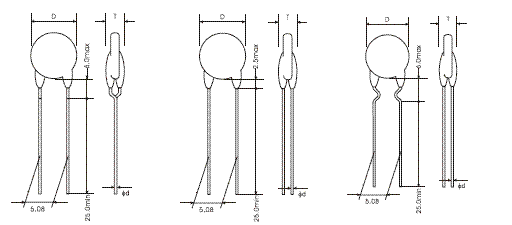

Dimension
MZ8 ptc resistor for CFL Features:
1.PTC thermistor for time delay start of ballast & lamp could extend the service life of the fluorescent tube by more than 10-time
2.PTC thermistor applied in various types of electronic energy-saving lamp and fluorescent electronic ballasts
3.Switching current can pass over 100,000 times: the resistance will not float
4.The withstanding voltage can reach to over 800-1,000V AC
5.High reliability, good performance of safety and stability
MZ8 ptc resistor Application:
Energy-saving lamp, fluorescent electronic ballasts,and digital multi-meters
| 4. ELECTRICAL CHARACTERISTICS |
| No. | Item | Spec. | Test conditions and methods |
| 4-1. | Rated Zero Power Resistance
(RN) |
| R25(Ω) | | A | 100-300 | | B | 300-500 | | C | 500-800 |
| TA:25±2ºC
Testing voltage:DC 2.0 Vmax
After placing for 1~2 hours under TA, the resistance value shall be measured.
:25±2ºC
:DC 2.0 Vmax
TA,1~2,RN |
| 4-2 | Voltage Withstanding | No damage.
The resistance change ratio within
±20%
,
±20% | TA:25±2ºC
Voltage:AC 220Vrms (50~60Hz) for 20 sec.
AC 400Vrms for 5sec.
Test Circuit:See Fig. 1.
: -10~+60ºC25±2ºC
:AC220 V (50~60Hz)20,
AC400V, 5.
|
| 4-3 | Curie Temperature | | 2Rn
Check the temperature at 2 times Rn. |
