Product Specifications
| Prod Model: |
E-S1003M-A1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Port Structure: |
Modular |
| Transfer Rate: |
10/100Mbps |
| Application: |
Enterprise |
Product Description
Model: E-S1003M-A1
2 Auto-Negotiation RJ45 ports and 8 pin header port. Ethernet module
Features:
1, support Ethernet standards
2, Exquisite Dimension 65*54*1.6MM
3, plug and play of Ethernet Switch
4, OEM multimedia cabling box products
Introduction

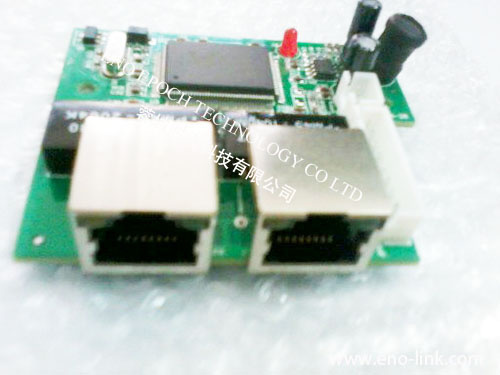

E-S1003M-A1 is a 10/100M Fast Ethernet switch provides 2 Auto-Negotiation RJ45 ports and 8 pin header port. All ports support Auto MDI/MDIX function and each port can be used as general ports or Uplink port is a simple configuration, plug and play of Ethernet switches. Exquisite form factor is a specifically designed for the home network cabling, and can provide for multiple home computers to share information, is cost-effective network product, Exquisite form factor is widely used home, hotel commerciand other multimedia cabling box, and the network data Transmission, cabling distance extend and other.
Features:
1, Complies with IEEE802.3, IEEE802.3u standards
2, 210/100Mbps Auto-Negotiation
3, each ports supporting Auto-MDI/MDIX.
4, Supports storage-forward
5, Supports Full Duplex flow controls mode and backpressure for half-duplex mode.
6, Supports MAC address auto-learning and auto-aging.
7, each port provides independent bandwidth providing true non-blocking transmission
8, LED indicators for monitoring power, link, activity.
9, Small size to reduce network cabling costs
Application:
Exquisite form factor is widely used home\hotel\commercial and other multimedia cabling box, and the network data Transmission, cabling distance extend and other.
|
Standards |
IEEE802.3 10Base-T, IEEE802.3u 100Base-TX |
|
Ports |
210/100Mbps Auto-Negotiation ports |
|
Chipset |
RTL8306 |
|
Network Media(Cable) |
10Base-T: UTP category 3, 4, 5 cable (maximum 100M) EIA/TIA-568100Ù STP (maximum100M) 100Base-Tx: UTP category 5, 5e cable (maximum 100M) EIA/TIA-568 100Ù STP (maximum 100M) |
|
Switching capacity |
1G |
|
LED Indicators |
100Mbps Link/Act
Power |
|
Transfer Method |
Store-and-Forward |
|
MAC Address Learning |
Automatically learning, automatically Update |
|
Frame Filtering and Forward Rate |
10Mbps: 14880pps, 100Mbps: 148800pps |
|
Dimension |
65*54*1.6mm |
|
Environment |
Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70(-40~158)
Operating Humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing |
