Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Measure Range: |
10ppm~21%, 100ppm~21%, 1000ppm~21% O2 |
| Sample Gas Flow: |
150~300ml/MIM |
| Accuracy: |
±2% F.S |
| Response Time: |
90% of Fs Reading ≤20 Seconds |
| Ambient Temp: |
-10oc~+50oc |
| Ambient Humidity: |
<80%Rh |
| Signal Output: |
4~20mA |
| Sensor Life: |
12 Months Analyzer; 12 Months Sensor |
| Appearance Dimension: |
160mm×80mm×176mm (W×h×d) |
| Type: |
Electrochemical Gas Analyzer |
Product Description

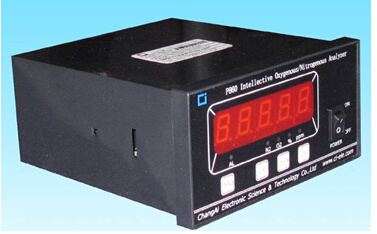

P860 Series N2/O2 AnalyzerIntroduction
P860 series analyzer is the online intelligent measurement instrument, which adopting advanced ion current oxygen sensor with single chip technology. N2%=100%-O2%. It has been widely used in the fields of nitrogen separation from air, fertilizer, petrochemicals and biological fermentation.
Features . New pattern long-life conversion ion current tester with fast response and high sensitivity
. N2 or O2 concentration display
. Checking the sensor working state automatically and unique double-line working change mode extending the sensor's life
. Setting alarm value freely
. High precision, automatic temperature compensation, eliminating the impact of environmental temperature
Technical Specifications Monitor: Five-digital dynamic LED monitor, visible display window: 90mm×25mm
Measure Range: 10ppm~21%, 100ppm~21%, 1000ppm~21% O2
Measure Mode: Air in-flowing or convection diffusing
Sample Gas Flow: 150~300ml/mim
Accuracy: ±2% F.S
Response Time: 90% of FS reading ≤20 seconds
Ambient Temp.: -10ºC~+50ºC
Ambient Humidity: <80%RH
Stability: <±1%.FS (168h)
Signal Output: 4~20mA
Power Supply: 220±10% VAC, 50/60Hz, the power loss ≤6VA
Sensor Life: 20000 hours at 25ºC and 1 atm
Warranty: 12 months analyzer; 12 months sensor
Weight: 1kg
Appearance Dimension: 160mm×80mm×176mm (W×H×D)
Opening Size: 151mm×75mm
Model | No. | Model | Measurement range |
| 1 | P860-3O | 21.0%~1000ppm | O2 |
| 2 | P860-4O | 21.00%~100ppm | O2 |
| 3 | P860-5O | 21.000%~10ppm | O2 |
| 4 | P860-3N | 79.0%~99.9% | N2 |
| 5 | P860-4N | 79.00%~99.99% | N2 |
| 6 | P860-5N | 79.000%~99.999% | N2 |
Order knowledge Measure range
Tested gas pressure
Gas composition and impurity
We, Tianjin PU Hui Science & Technology Development Co., Ltd is located in Balitai Industrial Area, Jinnan District, Tianjin, China, it has good location and convenient traffics, and it is near to Binhai New District, covering the area of 15, 000 square meters. We are a young and active enterprise of science and technology development.
The company focuses on R&D, production design, manufuturing, selling, service and etc. We mainly produce PSA Nitrogen Generator, PSA Oxygen Generator and Gas seperation assemble products.
All of our staff including of technology, production and maintenance have the working experience of more than 5 years, they can provide you the special before-selling and after-selling service. The products are mainly used in oil and petrochemicals, food storage, food package, chemicals, metallurgy, pharmacy, glass, electronics, SMT, nitrogen inertness protection, tire nitrogenization, aquaculture, sewage treatment, hospital, laboratory, gas chromatography, fuel cell and so on.
We always forcus on the research and developemnt of high efficiency & energy-saving products of air separation from the beginning, completely think of the customers' Investments and operation costs.
We have obtained three items of country technology talents. The complete system of after-selling can guarantee the normal running of equipments, also can give a warrantee for the high-quality and excellent production.
Upto now, hundred units of equipments designed by us are being used in domestic every area. Also we have already established the selling network in South-East Asia and Africa for the future business expanding.
We sincerely welcome our customers at home and abroad to our company for visit, business talk and cooperation.
