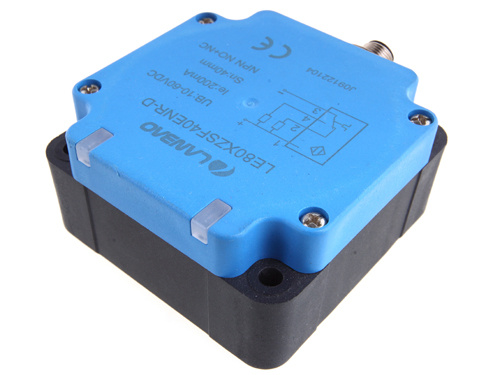

Product Specifications
| Prod Model: |
LE80XZ-D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output: |
Switching Sensor |
| Usage: |
Position Sensor |
Product Description
Feature Description
----------------------------------------------------------------------------------------------------------------------------------------------- Contactless, high reliability, no abrasion
Reverse polarity and surge protection
Housing materials: PBT
Rotection degree: IP67(IEC)
Item Code
---------------------------------------------------------------------------------------------------------------------------------------------- DC2 wire NO
LE80XZSF40ELO-D
LE80XZSN50ELO-D
DC2 wire NC
LE80XZSF40ELC-D
LE80XZSN50ELC-D
Authenticate
-----------------------------------------------------------------------------------------------------------------------------------------------
CE UL RoHS CCC ISO
|
Mounting |
Flushed Non-Flushed |
|
SN [mm] |
40mm 50 mm |
|
Power supply |
10^60VDC |
|
Housing size |
80*40*80mm |
|
Output |
NO/NC |
|
Temperature drift |
≤±10% |
|
Hysteresis |
1^20% |
|
Repeat accuracy |
≤3% |
|
Load current |
≤100mA |
|
esidual voltage |
≤ 6V |
|
Consumption current |
≤1mA |
|
Protection circuit |
Surge and reverse polarity protection |
|
Indicator |
Yellow LED |
|
Ambient temp |
-25^70ºC |
|
Ambient RH |
35-95% |
|
Frequency |
80 Hz 40 Hz |
|
Protection degree |
IP67 |
|
Housing material |
PBT |
|
Connection |
Terminal |
