Nanofiltration for Enzyme Concentration

Name: Nanofiltration for Enzyme Concentration
Brand: china-manufacturer-directory.com
SKU: 672694002
Availability: InStock
Rating: 4.7 (41 reviews)

Supplier:	Ande Membrane Separation Technology & Engineering (Beijing) Co., Ltd.
Price:	Negotiable
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Markets:	Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Type:	Water Treatment

Product Description

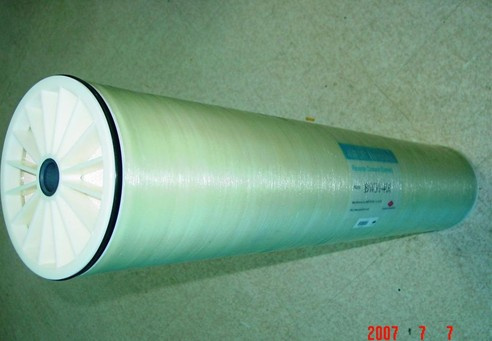

AMFOR NF membrane elements are designed for process applications where a separation of solutes is desired. NF membrane is a durable membrane designed to reject organics with a molecular weight above 200 while passing monovalent salts, we also can produce sanitary NF membranes.

Product Name	Active Surface Area ft2 (m2)	Applied Pressure psig(bar)	Flow rate gpd	Flow rate l/h	Stabilized Salt Rejection (%)
Product Name	Active Surface Area ft2 (m2)	Applied Pressure psig(bar)	Flow rate gpd	Flow rate l/h	Stabilized Salt Rejection (%)
NF-1812 CaCl₂	4(3.7)	70(5.0)	220	34.7	40~60
MgSO₄	4(3.7)	70(5.0)	200	31.5	>97
NF-2540 CaCl₂	28(2.6)	70 70psi(0.48Mpa) (5.0)	1000	157.7	40~60
MgSO₄	28(2.6)	70 70psi(0.48Mpa) (5.0)	850	134	>97
NF-4040 CaCl₂	82(7.6)	70(5.0)	2925	461.3	40~60
MgSO₄	82(7.6)	70(5.0)	2500	394.3	>97
MgSO₄	850	134	>97
NF-3838FF CaCl₂	80(7.4)	70(5.0)	2800	441.8	40~60
MgSO₄	80(7.4)	70(5.0)	2400	378.7	>97
NF-4040FF CaCl2	82(7.6)	70(5.0)	2825	461.3	40~60
MgSO₄	82(7.6)	70(5.0)	2500	394.3	>97

Product Type	Dimension--inches (mm)
Product Type	A	B	C	D
NF-1812	11.74(298)	0.87(22)	0.68(17)	1.75(44.5)
NF-2540	40.0(1016)	1.19(30.2)	0.75(19)	2.40(61)
NF-3838	38.0(965.2)	---	0.83(21.1)	3.8(96)
NF-4040	40.0(1016)	1.05(27)	0.75(19)	3.9(99)

Product Name	Active Surface Areaft2 (m2)	Applied Pressure psig(bar)	Flow Rate gpd(m3/d)	Stabilized Salt Rejection (%)

NF-8040 CaCl₂	400(37)	70psi(0.48Mpa)	14700(55.6)	40~60
MgSO₄			12500(47.3)	>97
NF-8040FFCaCl₂	400(37)	70psi(0.48Mpa)	14700(55.6)	40~60
MgSO₄			12500(47.3)	>97

Product Type	Dimension--inches (mm)
	A	B	C
NF-8040	40.0(1016)	1.125(29)	7.9(201)
NF-8040FF	40.0(1016)	1.125(29)	0.75(20)

1. Permeate flow a15%Recovery; 2000ppm MgSO ₄, 70psi (0.48MPa), 25 centigrade.nd salt rejection based on the following test conditions: 500ppm CaCl₂, 70psi (0.48MPa), 25 deg C

2. Permeate flows for individual elements may vary +/-25%.

inch=25.4mm

Operation Limits

Membrane Type ............................................................................... Polyamide Thin-Film Composite
Maximum Operating Pressure ..................................................................................... 600psi (41.0bar)
Maximum Pressure Drop ................................................................................................ 13psi (0.9bar
Maximum Operating Temperature ................................................................................. 113 (45 deg C)
pH Range, Continuous Operation .................................................................................... 2-11
pH Range, Short-Term Cleaning ( Max.@50 deg C) ............................................. 1-12
Maximum Feed water Turbidity .......................................................................................... 1NTU
Maximum Feed Silt Density Index ....................................................................................... 5
Free Chlorine Tolerance ............................................................................................... < 0.1ppm

Ande Membrane Separation Technology and Engineering (Beijing) Co., Ltd. is the wholly-owned subsidiary of AMFOR INC USA. Since its establishment in 1997, we have always been committed on membrane separation research and development. Currently, we manufacture RO, NF, UF, MF, Anode Cell Membrane and MBR flat sheet membrane. Besides, we have successfully developed Fouling Resistant membranes and Alkali-Resistant membrane. Our products have been widely used in Electro-coating, Biological industry, Pharmaceutical industry, Food & Beverage, Water treatment etc. Our ISO management system guarantees the best quality of our products and service. Original Beautiful life is from Ande Membrane!
