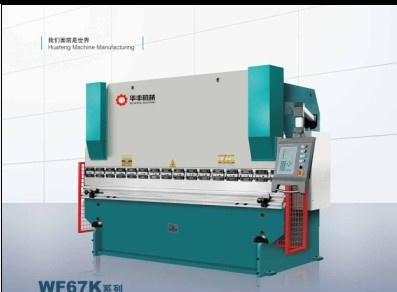

NC Press Brake Machine (WC67K)

Name: NC Press Brake Machine (WC67K)
Brand: china-manufacturer-directory.com
SKU: 712566985
Availability: InStock
Rating: 4.6 (46 reviews)

Supplier:	Anhui Huafeng Machine Manufacturing Co., Ltd.
Price:	US $ 1-99999/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	WC67K
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Forging:	Free and Various
Market:	Global
Price:	Good and Negotiated
Condition:	New
Color-:	-Optional
Quality:	High Material, Production Experience More Years
Automation:	Automatic
Type For Fold-bending Machine:	Manual Fold-bend Machine
Application:	Machinery & Hardware
Type:	Press Brake
Type For Cutting Machine:	-Bending

Product Description

The whole structure of the machine
Welded steel plate, the frame consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of the welded parts can be eliminated by vibration. The machine enjoys high accuracy and high strength and can be transported easily.

Hydraulic system
It adopts integrated hydraulic control systems which is more reliable and easy for maintenance. The hydraulic system consists of motor, oil pump and valve groups and it is installed at the top of the oil box. This can assure that the cylinder is always full of oil when the slide is moving down at high speed. And can save energy as the oil filling valve can guarantee the slide movement speed. Every complete working cycle can be achieved through the control of hydraulic valve. The remote adjustment valve can adjust the working pressure at the right side of the wall board.
The main sealing components of the cylinder are imported products (Japan brand).

Synchro control system
The slide synchro system adopts steel torsion bar synchro system with very simple structure but very high accuracy. 2 ends of slide has 2 sychnro fork which make the slides movement is always parallel to the working table. And this will make the movement effect balanced during operation. The system uses upper die compensation to improve the brake precision.

CNC System
The DA-41 control provides a complete solution for conventional press brake applications for 2 axes. Including the axes control for 2 axes. Including the axes control for the press beam and backgauge and flexible I/O configuration, the state of the art electronics offers a versatile solution.
Besides those systems from DELEM, products are also optional.

Ton	kN	mm	mm	mm	mm	kW	mm	Ton
Type	Nominal Pressure	Workbench Length	Poles distance	Throat depth	Max Opening Height	Main motor	Dimension(L×W×H)	Machine weight
80T/2500	800	2500	1900	250	350	5.5	2600×1700×2320	5.0
80T/3200	800	3200	2600	250	350	5.5	3300×1700×2320	5.5
80T/4000	800	4000	3100	250	350	5.5	4100×1700×2320	6.8
80T/5000	800	5000	4000	250	380	7.5	5100×1700×2500	9.2
100T/2500	1000	2500	1900	320	380	7.5	2600×1750×2420	5.6
100T/3200	1000	3200	2600	320	380	7.5	3380×1750×2420	6.6
100T/4000	1000	4000	3100	320	380	7.5	4000×1750×2420	7.8
100T/5000	1000	5000	4000	320	380	7.5	5000×1750×2520	9.2
100T/6000	1000	6000	4800	320	380	7.5	6000×1750×2620	12.0T
125T/2500	1250	2500	1900	320	380	7.5	2600×1750×2520	6.2
125T/3200	1250	3200	2600	320	380	7.5	3200×1750×2520	7.2
125T/4000	1250	4000	3100	320	380	7.5	4000×1750×2520	9.2
125T/5000	1250	5000	3950	320	380	7.5	5000×1750×2520	10.5
125T/6000	1250	6000	4800	320	380	11	6100×1750×2720	13.5
160T/2500	1600	2500	1900	320	450	11	2700×1850×2700	8.2
160T/3200	1600	3200	2550	320	450	11	3300×1850×2700	9.5
160T/4000	1600	4000	3040	320	450	11	4100×1850×2700	11
160T/5000	1600	5000	3800	400	450	11	5100×2000×3000	14.5
160T/6000	1600	6000	4800	400	450	11	6100×2000×3200	18
200T/2500	2000	2500	1840	350	500	11	2600×2150×2950	12
200T/3200	2000	3200	2540	350	500	11	3300×2150×2950	13.5
200T/4000	2000	4000	3100	350	500	11	4100×2150×2950	16
200T/5000	2000	5000	3800	350	500	11	5100×2150×3200	18.5
200T/6000	2000	6000	4800	350	500	15	6100×2150×3350	22
250T/2500	2500	2500	1800	350	520	18.5	2600×2200×3300	13
250T/3200	2500	3200	2500	350	520	18.5	3200×2200×3300	15
250T/4000	2500	4000	3030	350	520	18.5	4000×2200×3300	17

We specialized with plate rolling machine, guillotine shearing machine and other related products. We understand our customers, we care about the future of our business. We want to ensure that you get our good service, not only high quality and speedy delivery.

Press brake, shearing machine, rolling machine, press brake tools.
