Product Specifications
| Prod Model: |
NCMX-302K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automation: |
Automatic |
| Type For Cutting Machine: |
CNC Cutting Machine |
| Type For Fold-bending Machine: |
CNC Fold-bend Machine |
| Application: |
Machinery & Hardware |
| Type: |
Roller-Bending Machine |
Product Description
NCMX-302K busbar machine has passed ISO9001-2008, CE and patent certificate, and the machine also passed Chinese government exporting quality assurance quality certificate. 4 years gold supplier in alibaba website.
3, Instruction:
busbar machine is also called busbar processing machine, busbar cutting punching bending machine, copper busbar machine, aluminum busbar machine, which is mainly used in electric industry.
This kind machine is mainly used for different types of processing of copper or aluminum busbar. One machine can carry out processing of punching, shearing and bending at the same time or respectively. It is easy to operate, convenient to use and high production efficiency. So it is an ideal processing equipment for electrical appliance manufacture of high and low voltage.
4, Main Characteristics:
1, This machine has 2 working units:
one is for punching, can punch 2 holes once time. Another is for shearing and bending, just through changing mold. It can also do special processing work such as pressing, embossing, pressing cable joint, twisting and so on.
2, Working efficiency is 4 times than other 3 unit busbar machine. The three function shearing punching bending all are controlled by CNC, high automatically. No need to make lines as reference. Also can choose Foot-touch switch to control working. Two operation method.
3, You can adjust working stroke of each unit conveniently to reduce machining auxiliary time and improve production efficiency.
4, We adopt vertical machining method for punching and shearing unit, so operation is flexible and convenient. We use flatedge shearing method, so the work piece surface is neater and smoother
5, Adopting horizontal bending type to achieve flat bending and vertical bending by changing tools.
6, There are 4 trundles. So the machine can be moved conveniently by adjusting them.
7, NCMX-302K has passed patent certificate, 2 axis control. We are the only manufacture in the world. Beside me, there is one Italy manufacture, but Italy only have one unit, we have two. Higher technology and efficiency than Italy. But lower price than Italy.

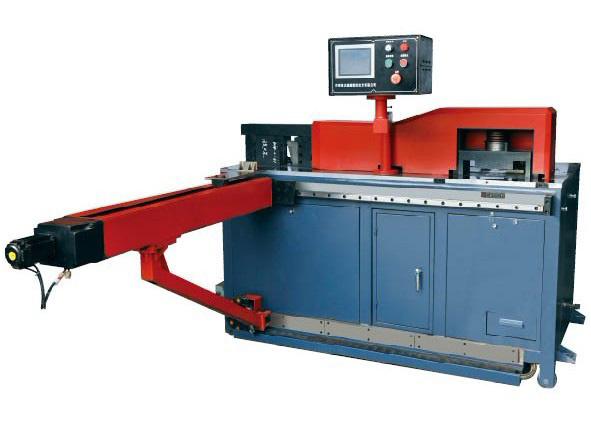

NCMX-302K busbar machine introduction: patent No. ZL200820174497.9
This is a professional equipment for busbar processing of copper or aluminum in electric industry, high and low voltage work piece and busbar groove industry. It has multifunction such as punching holes, shearing, bending, vertical bending, embossing, twisting, pressing cable joint on busbar. It is high precision and good consistency. The machine is controlled by double axis which controls the angle of bending. The precision of angle is improved obviously! We use electrical non-identation die to guarantee bending precision and no bending mark. All functions is controlled by CNC system, it can punching 2 holes once time, the working efficiency is 3-4 times than usual busbar machine.
Control accuracy:
Max location precision of back gauge: ±0.2mm
Control accuracy of bending angle: ±1º
Two holes can be punched at the same time
Electric tools can measure the bending angle directly
Special tools guarantee workpieces have no indentation
|
Number of control axis |
2 axis |
|
Max location speed of back gauge |
10m/min |
|
Max location distance of back gauge |
1m |
|
Max location precision of back gauge |
±0.2mm |
|
Control precision of bending angle |
±1º |
5, Technical parameters:
|
|
|
NCMX_302K |
|
Punching |
Max power (KN) |
300 |
|
Punching Diameter (mm) |
4.3~25 |
|
Max thickness (mm) |
12 |
|
Max width (mm) |
150 |
|
Shearing |
Max thickness (mm) |
12 |
|
Max width (mm) |
150 |
|
Bending |
Max power (KN) |
300 |
|
Max width (mm) |
150 |
|
Max thickness (mm) |
12 |
|
Vertical Bending |
Max width (mm) |
100 (10mm Thick copper) |
|
Min bending angle degree |
90° |
|
Embossing |
|
√ |
|
Pressing Cable Joint |
|
√ |
|
Twisting |
|
√ |
|
Outline Dimensions |
|
1700×2200×1550 |
|
Power of Main Motor (KW) |
|
4×2 |
|
No. |
Name |
Unit |
quantity |
|
1 |
Busbar machine |
Set |
1 |
|
2 |
Operation instruction |
book |
1 |
|
3 |
key |
Set |
1 |
|
4 |
Punching die with single hole: 9, 11, 13, 17
Punching die with two holes: 9x25, 11x30, 13x40, 17x50 |
Set |
1 of each |
|
5 |
Double holes die pedestal |
Set |
1 |
|
6 |
Cutting die |
Set |
1 |
|
7 |
Horizontal bending convex die |
set |
1 |
|
8 |
Vertical bending convex die |
ser |
1 |
|
9 |
Horizontal bending electric concave die |
set |
1 |
|
10 |
vertical bending electric concave die |
set |
1 |
|
11 |
Foot-touch switch |
PC |
2 |
|
12 |
inner hexagon spanner |
Set |
1 |
|
13 |
spanner 27-30 |
PC |
1 |
|
14 |
Sealing ring |
Wrap |
1 |
|
15 |
oil filler |
PC |
1 |
|
16 |
oil filler pipe |
PC |
1 |
|
17 |
oil gun |
PC |
1 |
|
18 |
Nuts and bolts of bottom |
PC |
4 |
