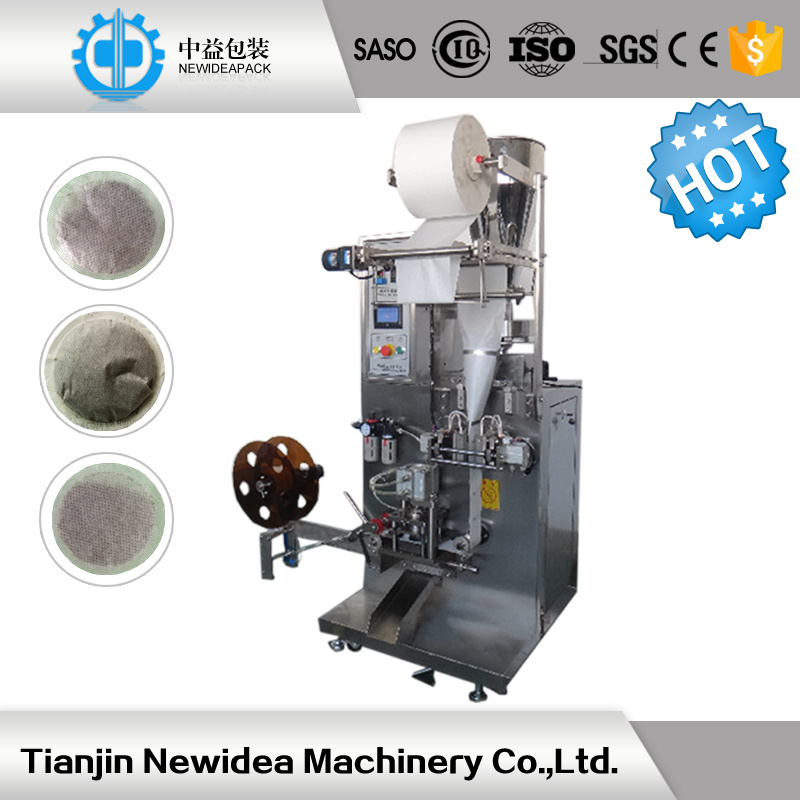

ND-KR66 Fast Filter Paper Tea packing machinery
1. ND-KR66 is Automatic Round Tea Pods Bag Packing Machine, the machine finish bag making, measuring, filling, sealing, coding and counting full automatically.
2. Measure with volume cup, with 1% error, the bag forming and sealing finished by bag former.
3. Suitable for packing tea product for 2-7 grams per bag packing.
4.3000 bag/hour high out-put.
Tea Pods Packing Machine KR66 Features
1. Model ND-KR66 is for round pocket.
2. It use tea-leaf filtering paper as inner bag.
3. Computer control and drive engine are adopted to control the length of bag and the position of trade mark.
4. Intelligent degree control and PID adjuster promise when maximum.
5. All the packing machine is made from SS304, clean and safe, easy for cleaning.
6. All the works of bag-making, measuring, filling, sealing, cutting and heat printing codes can be done automatically.
Tea Pods Packing Machine KR66 Parameters
Bag
Size(mm) |
50-80 | | | | | | | | |
Flat
Bag Size
(mm) |
40-80
60-90 | 62.5*50 | 62.5*50 | 65*62.5 | 45*60 | 62.5*50 | 60-65 | 50-75
50-75 | 60-75
55-70 |
Outer
Bag Size
(mm) |
100*100 | | 80*70 | 82*75 | 70*80 | 70*65 | 70-75 | 80-120
75-100 | |
Measuring
Range |
1.5-10ml | 8cm3 | 8cm3 | 15cm3 | 1-10cm3 | 1-8cm3 | 2-7grams | 3-10ml | 3-10ml |
Tag
Size(mm) |
28*24 | 28*24 | 28*24 | 28*24 | 28*32 | 28*24 | | 28*28 | 28*28 |
Thread
Length
(mm) |
210 | 210 | 210 | 210 | 140±5 | 210 | | 176 | 170 |
Packing
Speed
(Bag/hour) |
3600 | 7200 | 6600 | 6600 | 7200 | 6600 | 2400-3000 | 2100-3600 | 2100-4800 |
Film
Width(mm) |
120; 140
160; 180 | | | | 75 | | 180 | | |
| Voltage | 220V/380; 50/60Hz |
| Power | 1.2Kw | 2.36Kw | 2.36Kw | 2.36Kw | 8.0Kw | 0.75Kw | 1.6Kw | 3.7Kw | 1.6Kw |
Air
Pressure
(MPa) |
0.6 | | | | 6 ATM(bar) | | 0.4-0.7 | | |
Air
Consump
Tion
(L/min) |
200 | | | | 300 | | 0.1 | | |
| Weight(Kg) | 500 | 720 | 1410 | 1410 | 5000 | 720 | 400 | 500 | 400 |
Overall
Dimensions |
980*880
*1980 |
1790*900
*2000 |
1688*1330
*2205 |
1688*1330
*2205 |
3500*1500
*2400 |
1700*1000
*2000 |
1050*950
*2040 |
900*700
*1700 |
1800*950
*780 |
Sealing
Methods |
Pyramid
Sealing
Flat
Sealing |
3 sides
Sealing |
3 sides
Sealing |
3 sides
Sealing |
Double
Chamber |
3 sides
Ealing |
Round
Pods |
3 sides
Sealing |
3 sides
Sealing |
Packing
In Box | |
25, 50, 100 / 30, 60 / 20, 40 | | | | |
Optional Accessories:
Volume Cups Bag Former Coding Machine
Finish Product Conveyor Feeding Machine Metal Detector
Tea Pods Packing Machine KR66 Why Choose Us
1.8 years manufacture experience, strong R&D department.
2. Exported to more than 1000 customers from more than 50 countries.
3. We promiss machine keep working over 10 years in good working
Condition. Fewer easy broken parts, easy to change.
4. Intelligent PLC control system, easy operate, more hommization.
5. One year guarantee time, lifelong free service, 24 hours online service.
6. High output 4000-6000 bags/hour, save energy & labor.
7. OEM, ODM and customized service.
8. CE ISO BV GMP certificates.
Tea Pods Packing Machine KR66 Packaged Goods:
Machine packing inside is plastic films and outside is fumigation wooden case.
