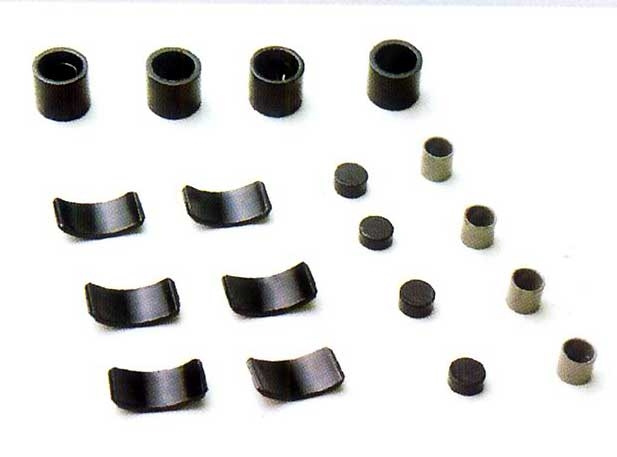

NdFeB Magnet

Name: NdFeB Magnet
Brand: China-Manufacturer-Directory.com
SKU: 662203915
Availability: InStock
Rating: 4.4 (122 reviews)

Supplier:	Ningbo Huahui Magnetic Industry Co., Ltd.
Price:	Negotiable
Min Order:	1
Quantity::

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Permanent
Composition:	NdFeB Magnet
Application:	Industrial Magnet
Shape:	Cup Shape

Product Description

Cylinder Magnets or Rod magnets is one popular shape of Rare earth magnets and perment magnets.
It is always manufactured via Cutting, Slicing, Centerless grinding, etc.
Cylinder magnets have the following important factors such as, Diameter and Height etc

To offer you our Cylinder or Rod magnets price, please offer the following details:
Magnets grade: From N35 To N50, from N Serieces to UH Series.
Magnets size: Diameter and Height
Magnetism direction: Which direction to oriented The north pole and south pole
Magnets coating: Nickel, Zn, Black Epoxy, AG, Au etc.
Quantities: More mass order the price more lower. Original factory.

Product Description
Neodymium-iron-boron magnet is one kind of the permanent magnets.
Material Grade of NdFeB magnets:
Magnet N-( N35, N38, N40, N42, N45, N48, N50),
Magnet M-(35M, 38M, 40M, 42M, 45M, 48M),
Magnet H-(35H, 38H, 40H, 42H, 45H),
Magnet SH-(30SH, 33SH, 35SH, 38SH, 40SH, 42SH),
Magnet UH-( 28UH, 30UH, 33UH, 35UH, 38UH),
Magnet EH-(28EH, 30EH, 30EH, 33EH, 35EH)

1) Application of NdFeB magnet: Toys, package, Printer, Switchboard, Phone, voice coil motors (VCM's) in hard disk drives, high performance motors, brushless DC motors, magnetic separation, magnetic resonance imaging, sensors, loudspeakers etc.

2) The coating of NdFeB magnets can be Zn, Ni, Ni-Cu-Ni, Epoxy, CR3+ZN, NI+AG, NI+AU.

3) Our factory can also manufacture various sizes of NdFeB magnet, according to the customer's specification

type	Residual lndurtion Br(KGs)	Coereive Foree bHe(KOe)	Intrinsic coereive Force iGe(KOe)	Squareness (Hk/iHe)	Max.Energy Product (BH)max.(MGOe)	Max.Openating Temp.(C)	Density (g/cm)
N35	11.7-12.3	10.7-12.0	≥12	≥0.85	33-36	80	≥7.40
N38	12.1-12.7	11.1-12.4	≥12	≥0.85	36-39	80	≥7.40
N40	12.5-13.2	11.5-12.8	≥12	≥0.85	38-41	80	≥7.40
N42	12.9-13.5	11.5-13.2	≥12	≥0.85	40-43	80	≥7.40
N45	13.3-13.9	11.5-13.6	≥11	≥0.85	43-46	80	≥7.40
N48	13.7-14.3	11.5-14.0	≥11	≥0.85	46-49	80	≥7.40
N50	14.1-14.9	11.5-14.0	≥11	≥0.85	49-51	80	≥7.40
33M	11.3-11.9	10.3-11.6	≥14	≥0.85	31-33	100	≥7.40
35M	11.7-12.3	10.7-12.0	≥14	≥0.85	33-36	100	≥7.40
38M	12.1-12.7	11.1-12.4	≥14	≥0.85	36-39	100	≥7.40
40M	12.5-13.2	11.5-12.8	≥14	≥0.85	38-41	100	≥7.40
42M	12.9-13.5	11.9-13.2	≥14	≥0.85	40-43	100	≥7.40
45M	13.3-13.9	12.3-13.6	≥14	≥0.85	43-46	100	≥7.40
48M	13.7-14.3	12.8-14.1	≥14	≥0.85	46-49	100	≥7.40
30H	10.9-11.5	9.9-11.2	≥17	≥0.85	28-31	120	≥7.40
33H	11.3-11.9	10.3-11.6	≥17	≥0.85	31-34	120	≥7.40
35H	11.7-12.3	10.7-12.0	≥17	≥0.85	33-36	120	≥7.40
38H	12.1-12.7	11.1-12.4	≥17	≥0.85	36-39	120	≥7.40
40H	12.5-13.2	11.5-12.8	≥17	≥0.85	38-41	120	≥7.40
42H	12.9-13.5	11.9-13.2	≥17	≥0.85	40-43	120	≥7.40
45H	13.3-13.9	12.5-13.8	≥17	≥0.85	43-46	120	≥7.40
27SH	10.5-11.1	9.5-10.8	≥20	≥0.85	25-28	150	≥7.40
30SH	10.9-11.5	9.9-11.2	≥20	≥0.85	28-31	150	≥7.40
33SH	11.3-11.9	10.3-11.6	≥20	≥0.85	31-34	150	≥7.40
35SH	11.7-12.3	10.7-12.0	≥20	≥0.85	33-36	150	≥7.40
38SH	12.1-12.7	11.1-12.4	≥20	≥0.85	36-39	150	≥7.40
40SH	12.5-13.2	11.5-12.8	≥20	≥0.85	38-41	150	≥7.40
42SH	12.9-13.5	11.9-13.2	≥20	≥0.85	40-43	150	≥7.40
25UH	10.1-10.7	9.1-10.4	≥25	≥0.85	23-26	180	≥7.40
27UH	10.5-11.1	9.5-10.8	≥25	≥0.85	25-28	180	≥7.40
30UH	10.9-11.5	9.9-11.2	≥25	≥0.85	28-31	180	≥7.40
33UH	11.3-11.9	10.3-11.6	≥25	≥0.85	31-34	180	≥7.40
35UH	11.7-12.3	10.7-12.0	≥25	≥0.85	33-36	180	≥7.40
38UH	12.1-12.9	11.1-12.6	≥25	≥0.85	36-39	180	≥7.40
40UH	12.5-13.3	11.5-13.0	≥25	≥0.85	38-41	180	≥7.40
23EH	9.7-10.3	8.7-10.0	≥30	≥0.85	21-24	200	≥7.40
25EH	10.1-10.7	9.1-10.4	≥30	≥0.85	23-26	200	≥7.40
27EH	10.5-11.1	9.5-10.8	≥30	≥0.85	25-28	200	≥7.40
30EH	10.9-11.5	9.9-11.2	≥30	≥0.85	28-31	200	≥7.40
33EH	11.3-11.9	10.3-11.6	≥30	≥0.85	31-34	200	≥7.40
35EH	11.7-12.3	10.7-12.0	≥30	≥0.85	33-36	200	≥7.40
38EH	12.1-12.9	11.1-12.6	≥30	≥0.85	36-39	200	≥7.40

Ningbo Huahui Magnetic Industry Co., Ltd. is Located in Ningbo City, the important trading port of the country at the coast of the East China Sea. It's a joint venture hi-tech enterprise engaged in the production and sale of agglutinate NdFeB, AlNiCo, SmCo, Ferrite/Ceramic and all sorts of magnetic materials and elements. With the powerful technologial expertise and advanced manufacturing equipment, the the annual output of NdFeB permanent magnetic materials exceeding 2000 tons.

The products of Huahui Magnetic Industry, Sold in countries and regions such as the Southeast Asia, Europe, the Americas and Australia as well as all over the country. The enterprise has establish a perfect quality control system in accordance with the requirement of ISO9001: 2008. With a good image based on first class reputation and service, the enterprise can meet the ultimate demand of clients for applicability, economy and reliability.
