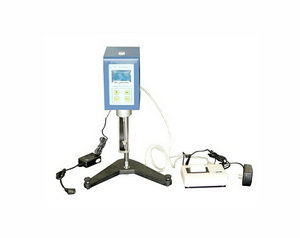

Ndj-1b Rotational Viscometer

Product Specifications

Prod Model:	NDJ-1B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measurement Range:	10 MPa.S~2000000 MPa.S
Measuring Accuracy:	+/-3% (F.S)
Spindles:	No.1, 2, 3 ,4. Four Spindles in Total
Rotation Speed:	0.3 Rpm, 0.6 Rpm, 1.5 Rpm, 3 Rpm,6 Rpm, 12 Rpm, 30

Product Description

I. Summary
The instrument adopts advanced mechanical design technology, manufacture technique
and microcomputer controlling technology.It can collect data accurately. Using white background light and ultra-bright LCD, it can show test data clearly. Equipped with a special printer interface, it can print out measurement data through a printer.
The instrument has the characteristics of high sensitivity, reliability, convenience and good looking. It is used to determine absolute viscosity of Newton liquids and apparent viscosity of Non-Newton liquids. It is widely used to determine the viscosity of liquids such as greases, oil paints, plastics, pharmaceutics, coatings, adhesives, washing solvents, and other fluids.
II. Main technical specifications
1. Measurement range: 10 mPa·s~2000000 mPa·s
2. Spindle: No.1~No.4, four spindles
3. Rotation speed: 0.3 RPM, 0.6 RPM, 1.5 RPM, 3 RPM,

6 RPM, 12 RPM, 30 RPM, and 60 RPM; 8 grades in total
4. Measuring accuracy: ±3% (F·S)
5. Power supply: AC 220 V±10%, 50 Hz±10%;
6. Ambient temperature: 5 ºC~35 ºC;
7. Relative humidity: ≤80%;
III. Optional parts
1. HWY-10 Circulation water bath
2. Special sample cup
3. No.0 spindle
4. Viscosity oil standards
5. Small sample adapter
