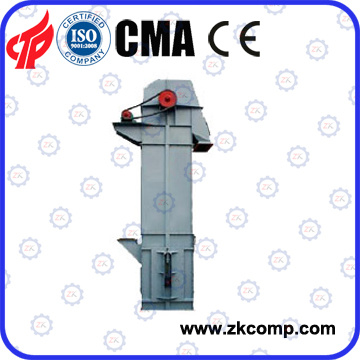

Ne Type Chain Bucket Elevator
Product Specifications
| Prod Model: |
Ne Type |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Bulk Materials Lifting |
| Lifting Height: |
4.3-54.7m |
| Certificate: |
ISO9001, ISO14000, CE |
| After Sale Service: |
1 Year Warranty |
| Mining Object: |
Bucket Elevator |
| Installation: |
Under Our Engineer's Guide |
| Spare Parts: |
We Offer |
| Condition: |
New |
| Price: |
Best Price |
| Experience: |
More Than 50 Years |
| Type: |
Transportation Equipment |
Product Description
NE Plate Chain Elevator takes advanced technology from home and abroad. This products is suitable for vertical transportation of powder, granular, and bulk materials, also for high hardness materials. The temperature of materials should not be higher than 200 degree celsius. Max. Elevation height 40m.
Advantages:
Wide range of elevating height.
Strong capacity and small driving power.
Feeding materials by automatic flowing and discharge through gravity induction.
Long service life and good leak tightness.
Stable and liable operation, easy maintenance.
Low running cost.
Bucket elevator
The description of bucket elevator:
Bucket elevators are designed to move flowing powders or bulk solids vertically. Bucket elevators use an endless belt or chain and have a series of buckets attached to it. Bulk material is spread into an inlet hopper. Buckets (or cups) dig into the material and convey it up and over the head sprocket/pulley, and then throw the material out a discharge throat.
Bucket elevator can be divided into belt type and chain type, and the common characteristic is used for vertical transportation of powder, granulated and small lump materials. It has compact structure, small covering area, large hoisting height, good sealed performance. Tape bucket conveyor is lightweight, flexible, simple handling maintenance and low noise, which can be used to transport density 1.5 t/m3 granular or small conveying of bulk materials.
Advantage of Bucket Elevator:
The bucket conveyor has the advantages of big conveying capacity, high hoisting height, stable and reliable running and long service life. The machine is applicable for the crushed materials, and block materials, such as coal, cement, block, sand, clay and ore. The bucket elevator is allowed to convey materials with high temperature when armed with special circle chain tructure.
Henan Zhengzhou Mining Machinery Co., Ltd. Specializes in manufacturing bucket elevator. Henan Zhengzhou Mining Machinery Co., Ltd. Designs and manufactures a wide variety of bucket elevators based on the characteristics of the bulk material and the process requirements. Designed to handle a wide variety of bulk materials from average to very free-flowing. Welcome to consult and order.
Company Name: Henan Zhengzhou Mining Machinery Co., Ltd.
Official Website: http://www.inczk.com/ & http://www.zkcomp.com/
24-hour Free Sales Consulting Phone: 861-0371 -5590 2866.
Company Address: Qiaolou caizhai industrial estate, Xingyang city, Henan Province
Please pay attention to the company's other products:
Price of rotary kiln: http://www.zkcomp.com/calcining/558. Html
Rotary Kiln: http://www.inczk.com/Products/459. Html
Preheater: http://www.zkcomp.com/calcining/605. Html
Cement Mill: http://www.inczk.com/Products/460. Html
Rotary Dryer: http://www.zkcomp.com/calcining/564. Html
Raw Mill: http://www.inczk.com/Products/1373. Html
Ball Mill: http://www.zkcomp.com/grinding/582. Html| SPEC | Max Elevation Capacity(m³/h) | Power (KW) | Elevation Heigh (m) |
|
|
|
|
| NE15 | 16 | 1.5~4.0 | 6.28~30.78 |
|
| NE30 | 31 | 1.5~11 | 4.13~47.63 |
|
| NE50 | 60 | 1.5~18.5 | 4.13~49.13 |
|
| NE100 | 110 | 5.5~30 | 6.65~49.15 |
|
| NE150 | 165 | 5.5~45 | 6.1~52.6 |
|
| NE200 | 220 | 15~75 | 5.73~47.23 |
|
| NE300 | 320 | 15~90 | 4.23~54.73 |
|
| NE400 | 441 | 15~132 | 12.6~54.7 |
|
Henan Zhengzhou Mining Machinery Co., Ltd, was established in 1956 and located in Xingyang of Zhengzhou City of Henan Province, specially produces metallurgical machinery. It covers an area of more than 55000m2 and various building area of 28000 m2. It has the annual income of more than RMB180million in 2008 and now the fixed assets of over RMB80 million. In the plant, there are branches and workshops of cast iron, cast steel, forging, heavy machine tool processing, rivet welding and heat treatment etc. Its perfect and complete equipment, advanced detection means, strong technical force establish good foundation for the reliable production.
Main products include: Jaw style, hammer style, impact style and roll style crusher; Ball mill, direct fired drier, rotary kiln, preheater, coker, magnetic separator, flotation machine, classifier, feeder, hoisting machine and conveyor etc. These complete sets of machinery for cement building material, metallurgy, coking and chemical smelting etc are sold well in the world. Our company also has professional installation and construction teams and perfect after-sales service guaranty system.
With the development of the People's Republic of China, Henan Zhengzhou Mining Machinery Co., Ltd undergoes frequent difficulties and has accomplished over 50 years' brilliant history. Initially from the manufacturing of original single machine till today's series of and complete sets of mining metallurgical machinery, it has made great contribution to the development and utilization of mineral resources of our country. For many years, each spot check and annual examination carried by National Mining Machinery Quality Supervision and Inspection Center for our products is acceptable and our company is always appointed as Credible and Reputed Enterprise by Henan Provincial Administration of Industry and Commerce.
Henan Zhengzhou Mining Machinery Co., Ltd will continue providing excellent products and service for our society, with the guideline of "survival by quality, development by good faith, users supreme". Our company would make sincere cooperation with all circles for mutual benefit and common development.
